Brake Actuator: Removal

REMOVE RIGHT FRONT WHEEL AND RIGHT FRONT FENDER LINER
REMOVE PS GEAR TUBE CLAMP BOLT
Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
DISCONNECT ENGINE COOLANT RESERVOIR
Slide the engine coolant reservoir upward and remove it from the bracket.
DISCONNECT 4 CONNECTORS AND BRAKE HOSE FROM BRAKE ACTUATOR ASSEMBLY

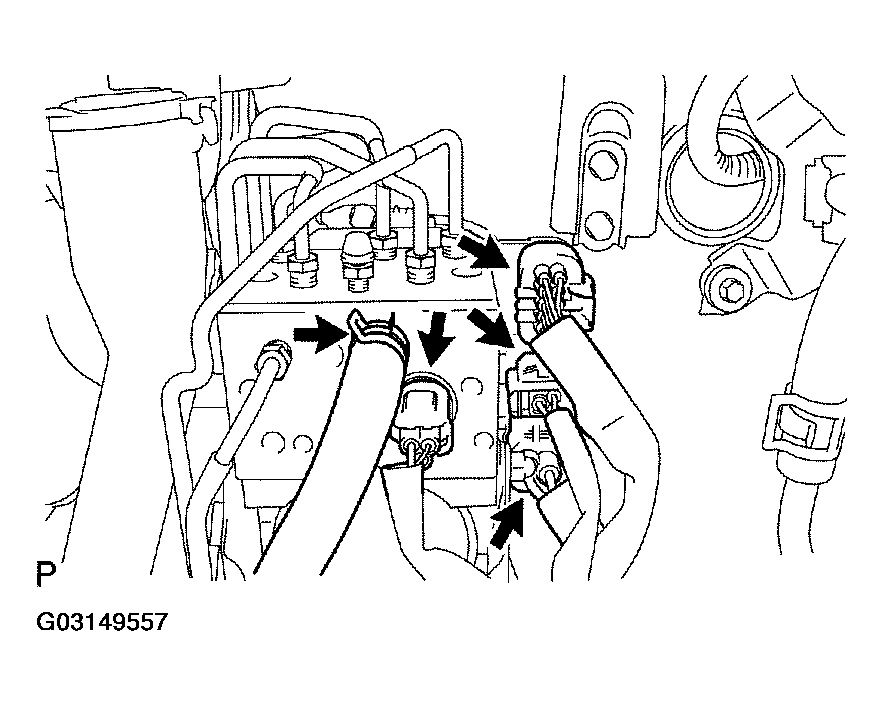

Fig 1: Disconnecting Connectors & Brake Hose From Brake Actuator Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT BRAKE LINES
Using SST, disconnect the 6 brake lines from the brake actuator assembly.

SST 09751-36011

Torque: 15 N.m (155 kgf.cm, 11 ft.lbf)

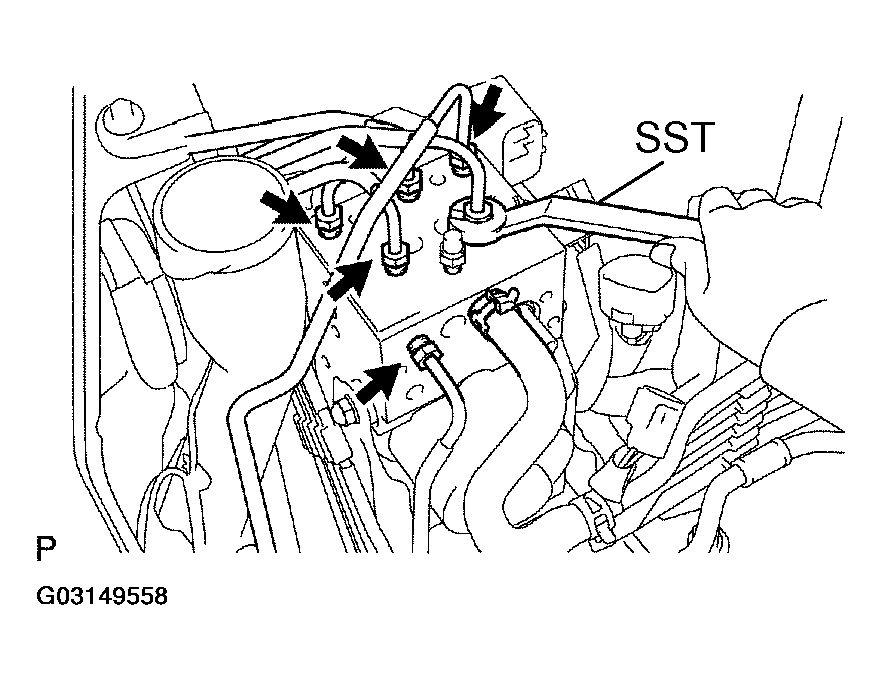

Fig 2: Disconnecting Brake Lines From Brake Actuator Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BRAKE ACTUATOR ASSEMBLY
Remove the 2 bolts, nut and brake actuator assembly.

Torque: 19 N.m (195 kgf.cm, 14 ft.lbf)

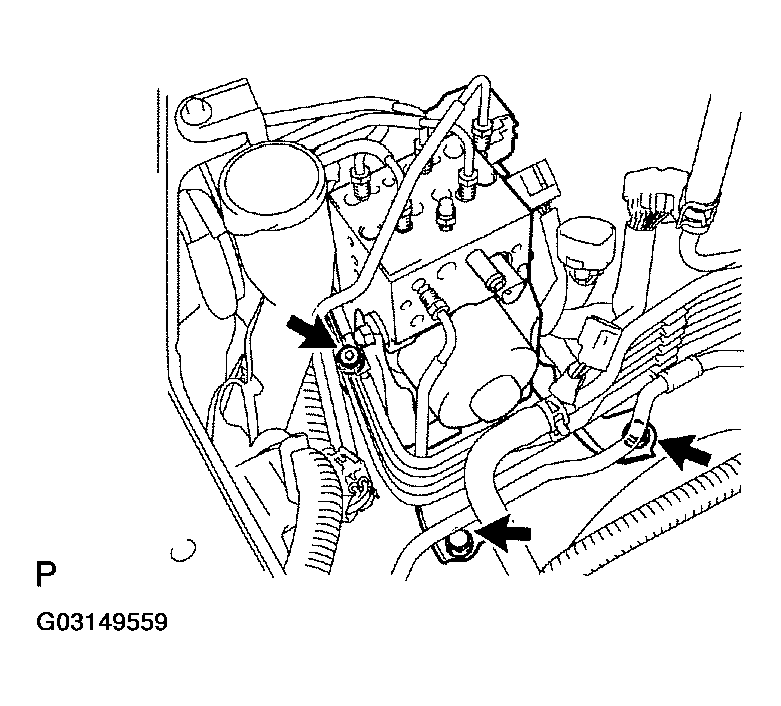

Fig 3: Removing Brake Actuator Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BRAKE ACTUATOR
1. Remove the 2 nuts and brake actuator from actuator bracket.
  Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
2. Remove the 2 holders and 3 cushions from the brake actuator.
