Brake Actuator: Components

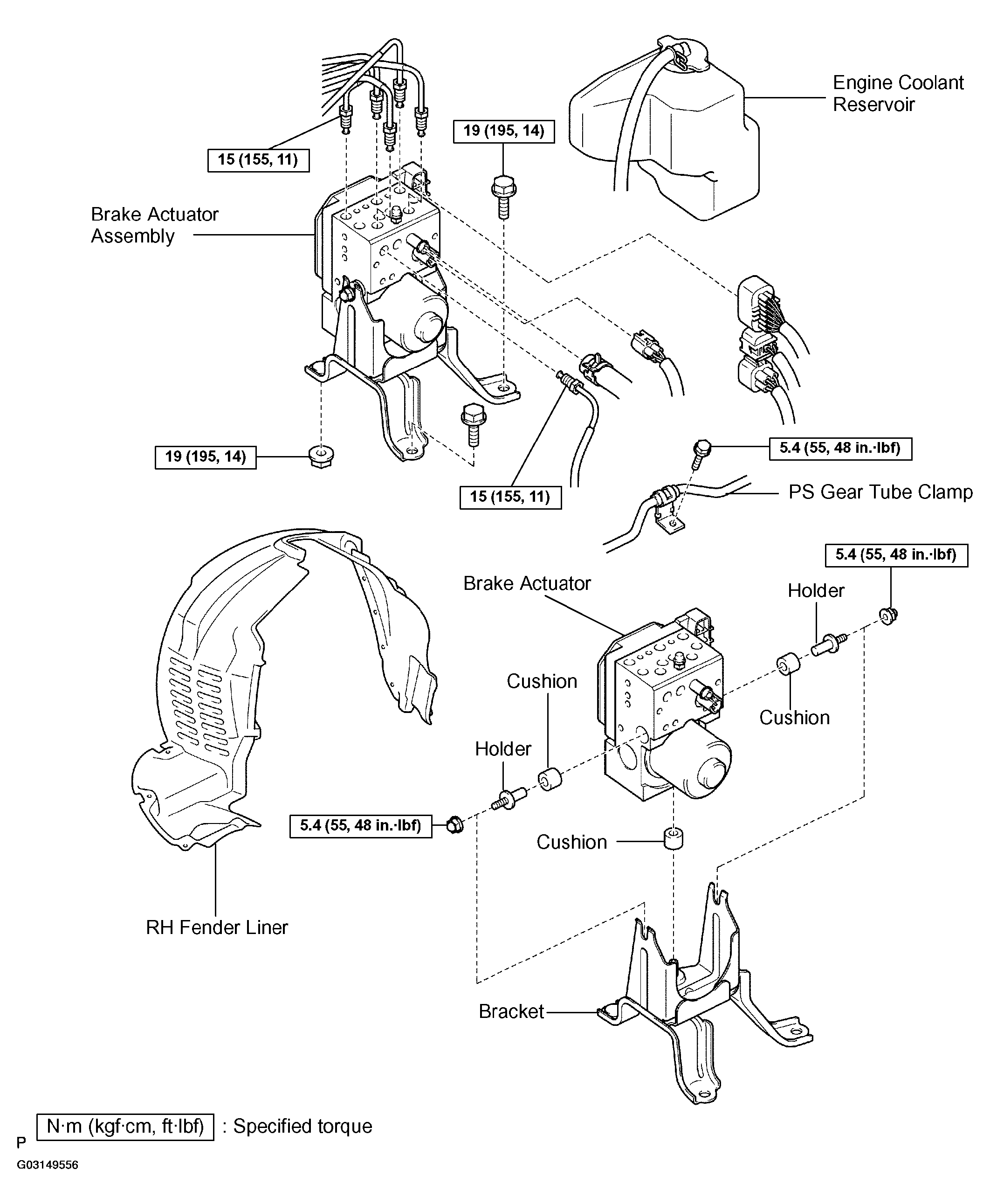

Fig 1: Identifying Components Of Brake Actuator Assembly

G03149556

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
