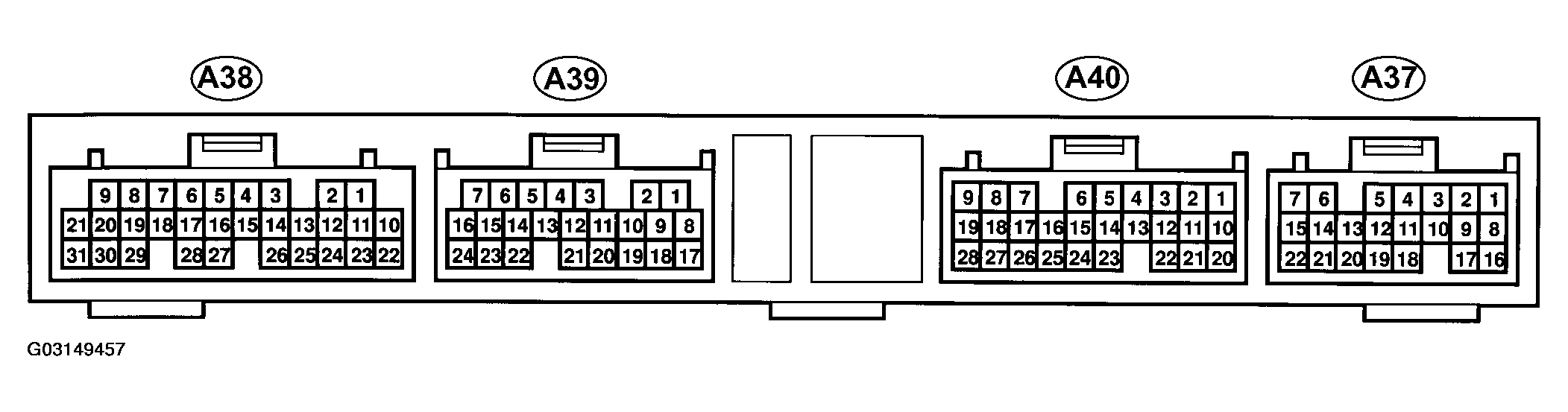

| SRLR (A37 - 1) - GND (A38 - 6, 31, A39 - 8, 17) |
B-O <-> W-B |
IG Switch ON, ABS Warning Light OFF |
10 - 14 |
| AST (A37 - 6) - GND (A38 - 6, 31, A39 - 8, 17) |
B-Y <-> W-B |
IG Switch ON, ABS Warning Light OFF |
10 - 14 |
| SRLH (A37 - 7) - GND (A38 - 6, 31, A39 - 8, 17) |
Y-B <-> W-B |
IG Switch ON, ABS Warning Light OFF |
10 - 14 |
| SFRR (A37 - 8) - GND (A38 - 6, 31, A39 - 8, 17) |
BR-W <-> W-B |
IG Switch ON, ABS Warning Light OFF |
10 - 14 |
| SMV2 (A37 - 15) - GND (A38 - 6, 31, A39 - 8, 17) |
R <-> W-B |
IG Switch ON, ABS Warning Light OFF |
10 - 14 |
| SFRH (A37 - 16) - GND (A38 - 6, 31, A39 - 8, 17) |
V-W <-> W-B |
IG Switch ON, ABS Warning Light OFF |
10 - 14 |
| RLO (A37 - 18) - GND (A38 - 6, 31, A39 - 8, 17) |
P-L <-> W-B |
Vehicle Driving At About 20 km/h (12 MPH) |
Pulse Generation |
| SMV1 (A37 - 22) - GND (A38 - 6, 31, A39 - 8, 17) |
W-L <-> W-B |
IG Switch ON, ABS Warning Light OFF |
10 - 14 |
| SMC1 (A38 - 2) - GND (A38 - 6, 31, A39 - 8, 17) |
L-Y <-> W-B |
IG Switch ON, ABS Warning Light OFF |
10 - 14 |
| SMC2 (A38 - 3) - GND (A38 - 6, 31, A39 - 8, 17) |
G-B <-> W-B |
IG Switch ON, ABS Warning Light OFF |
10 - 14 |
| SRC1 (A38 - 4) - GND (A38 - 6, 31, A39 - 8, 17) |
R-Y <-> W-B |
IG Switch ON, ABS Warning Light OFF |
10 - 14 |
| SRC2 (A38 - 5) - GND (A38 - 6, 31, A39 - 8, 17) |
GR-R <-> W-B |
IG Switch ON, ABS Warning Light OFF |
10 - 14 |
| SFLR (A38 - 7) - GND (A38 - 6, 31, A39 - 8, 17) |
R-B <-> W-B |
IG Switch ON, ABS Warning Light OFF |
10 - 14 |
| SRRH (A38 - 8) - GND (A38 - 6, 31, A39 - 8, 17) |
BR-Y <-> W-B |
IG Switch ON, ABS Warning Light OFF |
10 - 14 |
| SRRR (A38 - 9) - GND (A38 - 6, 31, A39 - 8, 17) |
GR-L <-> W-B |
IG Switch ON, ABS Warning Light OFF |
10 - 14 |
| VCM (A38 - 10) - GND (A38 - 6, 31, A39 - 8, 17) |
B <-> W-B |
IG Switch ON |
4.5 - 5.5 |
| FR+ (A38 - 14) - FR- (A38 - 13) |
V <-> P |
IG Switch ON, Slowly Turn Right Front Wheel |
AC Generation |
| FL+ (A38 - 16) - FL- (A38 - 15) |
LG <-> L |
IG Switch ON, Slowly Turn Left Front Wheel |
AC Generation |
| SR (A38 - 19) - R+ (A38 - 1) |
Y-G <-> GR |
IG Switch ON, ABS Warning Light OFF |
10 - 14 |
| SFLH (A38 - 21) - GND (A38 - 6, 31, A39 - 8, 17) |
G <-> W-B |
IG Switch ON, ABS Warning Light OFF |
10 - 14 |
| PMC (A38 - 22) - E2 (A38 - 23) |
W <-> R |
IG Switch ON, Stop Light Switch OFF |
0.3 - 0.7 |
| E2 (A38 - 23) - GND (A38 - 6, 31, A39 - 8, 17) |
R <-> W-B |
IG Switch OFF |
Continuity |
| FSS (A38 - 24) - GND (A38 - 6, 31, A39 - 8, 17) |
Shielded <-> W-B |
IG Switch OFF |
Continuity |
| MT (A38 - 28) - GND (A38 - 6, 31, A39 - 8, 17) |
LG-B <-> W-B |
IG Switch ON (Motor Relay Is OFF) |
Below 1.5 |
| MR (A38 - 29) - GND (A38 - 6, 31, A39 - 8, 17) |
B-W <-> W-B |
IG Switch ON, ABS Motor Stops |
10 - 14 |
| VGS (A39 - 1) - GGND (A39 - 10) |
R <-> B |
IG Switch ON |
4.5 - 5.5 |
| GL 1 (A39 - 2) - GGND (A39 - 10) |
W <-> B |
IG Switch ON, Vehicle Is Placed On The Horizontal Surface |
2 - 3 |
| Tc (A39 - 3) - GND (A38 - 6, 31, A39 - 8, 17) |
P-B <-> W-B |
IG switch ON |
10 - 14 |
| Ts (A39 - 4) - GND (A38 - 6, 31, A39 - 8, 17) |
W-L <-> W-B |
IG Switch ON |
10 - 14 |
| IG1 (A39 - 6) - GND (A38 - 6, 31, A39 - 8, 17) |
B-R <-> W-B |
IG Switch ON |
10 - 14 |
| NEO (A39 - 7) - GND (A38 - 6, 31, A39 - 8, 17) |
L-O <-> W-B |
Engine Idling |
Pulse Generation |
| GL2 (A39 - 9) - GGND (A39 - 10) |
G <-> B |
IG Switch ON, Vehicle Is Placed On The Level Surface |
2.0 - 3.0 |
| GGND (A39 - 10) - GND (A38 - 6, 31, A39 - 8, 17) |
B <-> W-B |
IG Switch OFF |
Continuity |
| RR+ (A39 - 11) - RR- (A39 - 12) |
GR-R <-> L |
IG Switch ON, Slowly Turn Right Rear Wheel |
AC Generation |
| ENG+ (A39 - 14) - ENG- (A39 - 22) |
R-Y <-> BR-W |
IG Switch ON, Engine Idling |
Pulse Generation |
| GSS (A39 - 18) - GND (A38 - 6, 31, A39 - 8, 17) |
Shielded <-> |
W-B IG Switch OFF |
Continuity |
| RL+ (A39 - 19) - RL- (A39 - 20) |
L-Y <-> L-W |
IG Switch ON, Slowly Turn Left Rear Wheel |
AC Generation |
| PKB (A39-15) - GND (A38-6, 31, A39 - 8, 17) |
R-L <-> W-B |
IG Switch ON, Parking Brake Switch ON |
Below 2.0 |
| IG Switch ON, Parking Brake Switch OFF |
10 - 14 |
| TRC+ (A39 - 24) - TRC- (A39 - 16) |
GR <-> P-B |
IG Switch ON, Engine Idling |
Pulse Generation |
| BRL (A40 - 1) - GND (A38 - 6, 31, A39 - 8, 17) |
G <-> W-B |
IG Switch ON, Fluid In Master Cylinder Reservoir Above MIN Level And Parking Brake Switch Is OFF (Brake Warning Light Is OFF) |
10 - 14 |
| RRO (A40 - 3) - GND (A38 - 6, 31, A39 - 8, 17) |
V <-> W-B |
Vehicle Driving At About 20 km/h (12 MPH) |
Pulse Generation |
| VSCW (A40 - 4) - GND (A38 - 6, 31, A39 - 8, 17) |
W-G <-> W-B |
IG Switch ON, VSC Warning Light ON |
Below 2.0 |
| IG Switch ON, VSC Warning Light OFF |
10 - 14 |
| WA (A40 - 5) - GND (A38 - 6, 31, A39 - 8, 17) |
B-Y <-> W-B |
IG Switch ON, ABS Warning Light ON |
Below 2.0 |
| IG Switch ON, ABS Warning Light OFF |
10 - 14 |
| IND (A40 - 6) - GND (A38 - 6, 31, A39 - 8, 17) |
W-L <-> W-B |
IG Switch ON, SLIP Indicator Light ON |
Below 2.0 |
| IG Switch ON, SLIP Indicator Light OFF |
10 - 14 |
| STP (A40 - 7) - GND (A38 - 6, 31, A39 - 8, 17) |
G-Y <-> W-B |
Stop Light Switch OFF |
Below 1.5 |
| Stop Light Switch ON |
8 - 14 |
| VYS (A40 - 9) - GYAW (A40 - 27) |
R-L <-> R-W |
IG Switch ON |
4.5 - 5.5 |
| LBL (A40 - 11) - GND (A38 - 6, 31, A39 - 8, 17) |
R-W <-> W-B |
IG Switch ON, Fluid In Master Cylinder Reservoir Above MIN Level |
About 4 - 8 |
| SS1+ (A40 - 14) - SS1- (A40 - 23 |
LG-B <-> LG |
Engine Idling, Slowly Turn Steering Wheel |
Pulse Generation (See DTC C1231/31 Steering Angle Sensor Circuit
) |
| WT (A40 - 13) - GND (A38 - 6, 31, A39-8, 17) |
P <-> W-B |
IG Switch ON, TRAC OFF Indicator Light ON |
Below 2.0 |
| IG Switch ON, TRAC OFF Indicator Light OFF |
10 - 14 |
| R (A40 - 15) - GND (A38 - 6, 31, A39 - 8, 17) |
R-B <-> W-B |
IG Switch ON, Shift Lever Is In R Position |
8 - 14 |
| IG Switch ON, Shift Lever Is In Other Than R Position |
Below 1.5 |
| SP1 (A40 - 16) - GND (A38 - 6, 31, A39 - 8, 17) |
R-B <-> W-B |
Vehicle Driving At About 20 km/h (12 MPH) |
Pulse Generation |
| YSS (A40 - 18) - GND (A38 - 6, 31, A39 - 8, 17) |
Shielded <-> |
W-B IG Switch OFF |
Continuity |
| YD (A40 - 19) - GND (A38 - 6, 31, A39 - 8, 17) |
W-R <-> W-B |
IG Switch ON, VSC Warning Light OFF |
4.5 - 5.5 |
| BZ (A40 - 20) - GND (A38 - 6, 31, A39 - 8, 17) |
G-O <-> W-B |
IG Switch ON, VSC Buzzer Sounds |
Below 1.0 <-> 10 - 14 |
| IG Switch ON, VSC Buzzer Does Not Sound |
10 - 14 |
| D (A40 - 22) - GND (A38-6 31, A39 - 8, 17) |
G-R <-> W-B |
IG Switch ON, Shift Lever Is In D Position |
8 - 14 |
| IG Switch ON, Shift Lever Is In Other Than D Position |
Below 1.5 |
| P (A40 - 24) - GND (A38 - 6, 31, A39 - 8, 17) |
G-W <->W-B |
IG Switch ON, Shift Lever Is In P Position |
8 - 14 |
| IG Switch ON, Shift Lever Is In Other Than P Position |
Below 1.5 |
| D/G (A40 - 25) - GND (A38 - 6, 31, A39 - 8, 17) |
W <-> W-B |
IG Switch ON |
10 - 14 |
| CSW (A40 - 26) - GND (A38 - 6, 31, A39-8, 17) |
B-W <-> W-B |
IG Switch ON, TRAC Cut Switch Pushed In |
Below 1.5 |
| IG Switch ON, TRAC Cut Switch Released |
10 - 14 |
| GYAW (A40 - 27) - GND (A38 - 6, 31, A39 - 8, 17) |
R-W <-> W-B |
IG Switch OFF |
Continuity |
| YAW (A40 - 28) - GYAW (A40 - 27) |
B <-> R-W |
IG Switch ON, Vehicle Is In Stationary Condition |
2 - 3 |
