Disposal Height Control Accumulator

Place the accumulator in a vise and saw a hole between "A" and "B" shown in the illustration using a saw to discharge the gas inside.

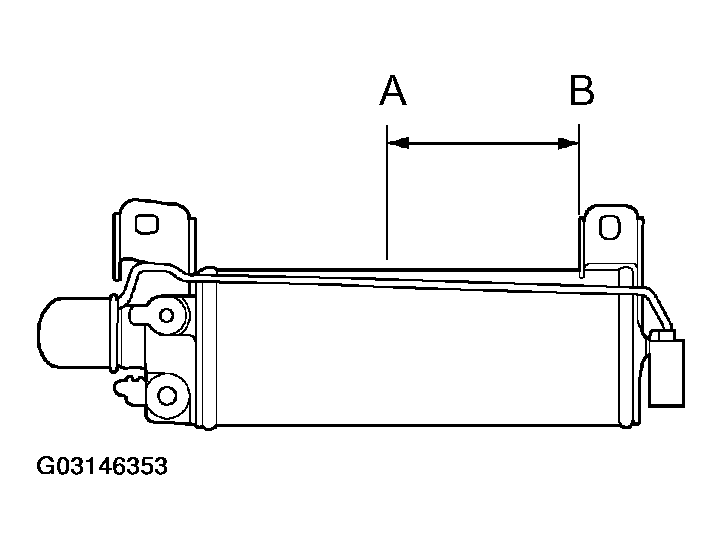

Fig 1: Identifying A To B Dimension
G03146353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CAUTION:
  • Before the gas discharging, loosen the bleeder plug to bleed high pressure oil.
  • The gas discharging is colorless, odorless and harmless.
  • Saw a hole while covering the saw with a shop rug because chips may fly up.
