Power Steering Vane Pump: Components

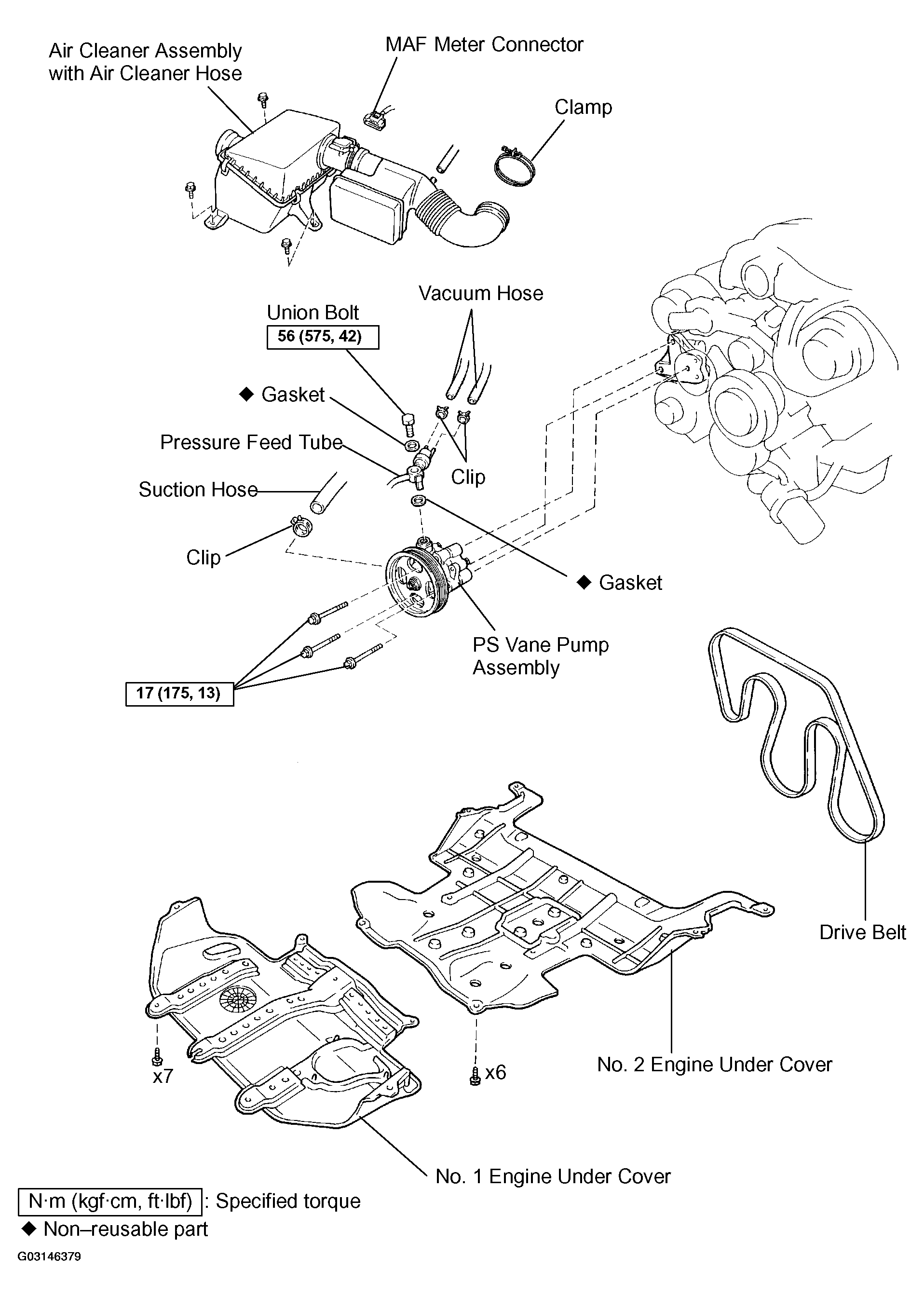

Fig 1: Identifying Components For Power Steering Vane Pump Removal
G03146379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

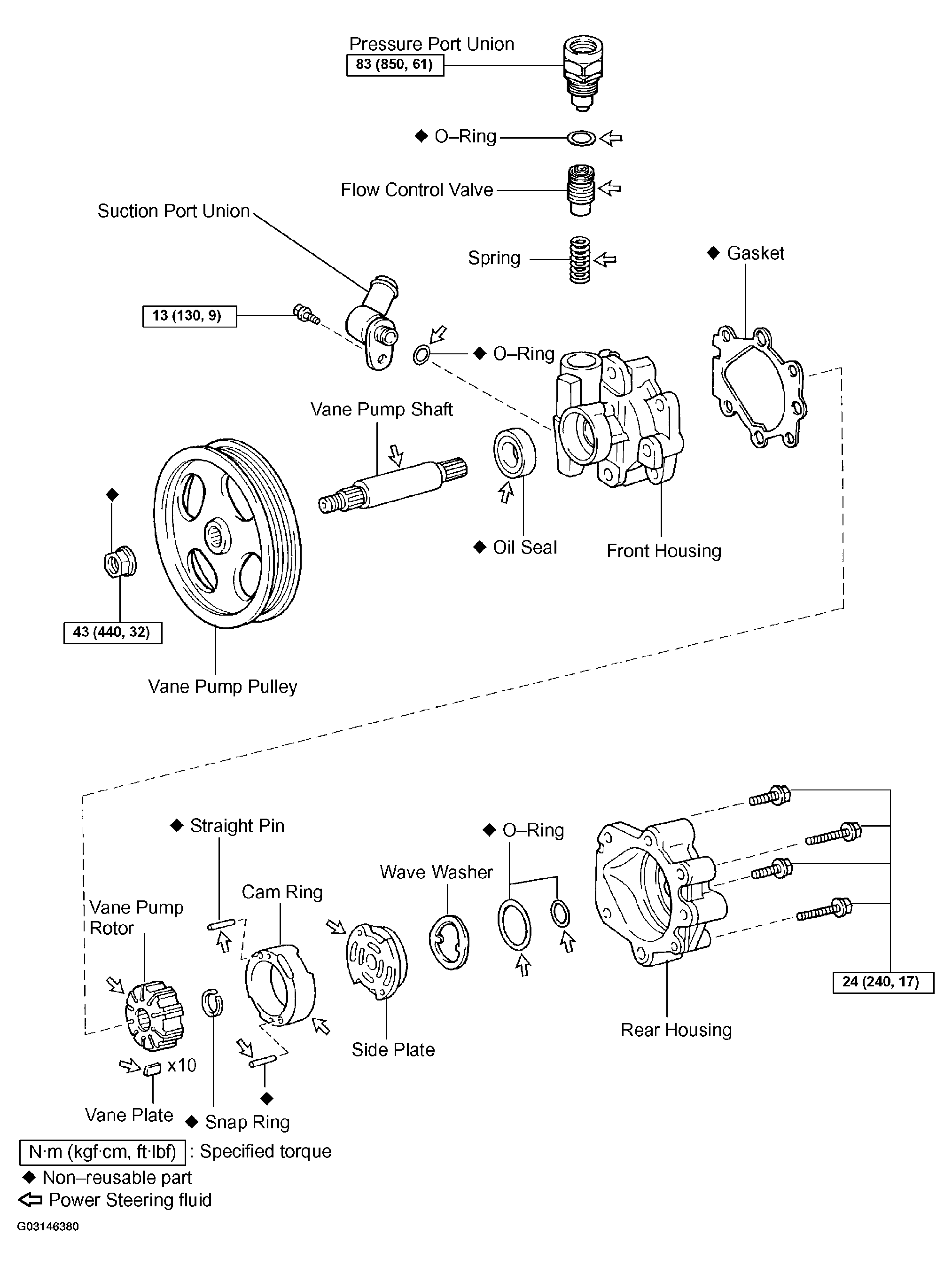

Fig 2: Exploded View Of Power Steering Vane Pump
G03146380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
