Section 376 (Engine Cooling System): Radiator: Removal

WARNING: This page is about a different car, the 2002 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain engine coolant.
  2. Remove radiator grille  .

    Remove the 4 screws, 2 clips and radiator grille.

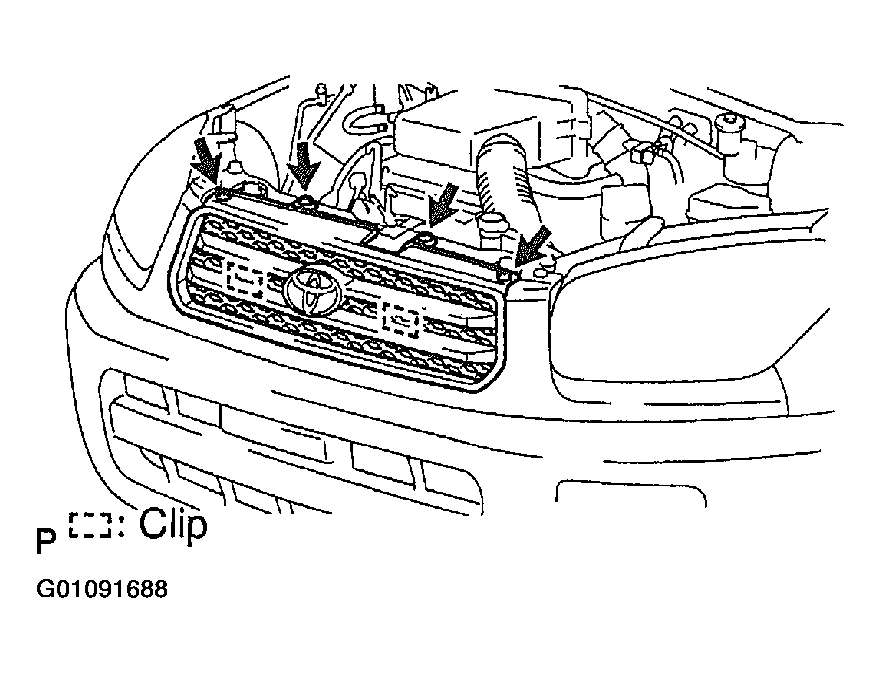

    Fig 1: Locating Radiator Grille Screws
    G01091688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Remove front end panel  .

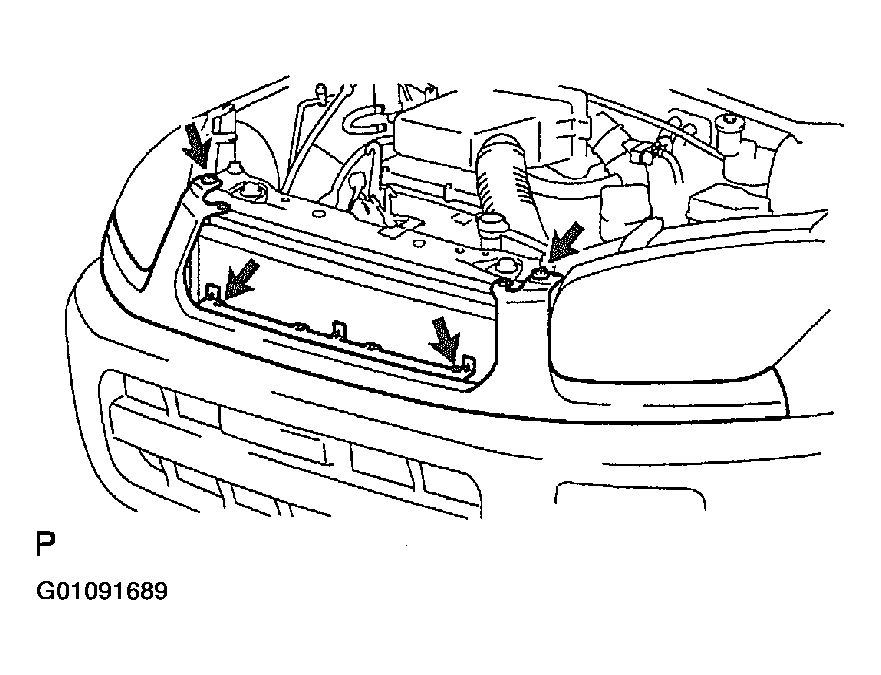

    Fig 2: Removing Front End Panel
    G01091689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Remove the 4 screws and front end panel.

  4. Disconnect hood lock  .

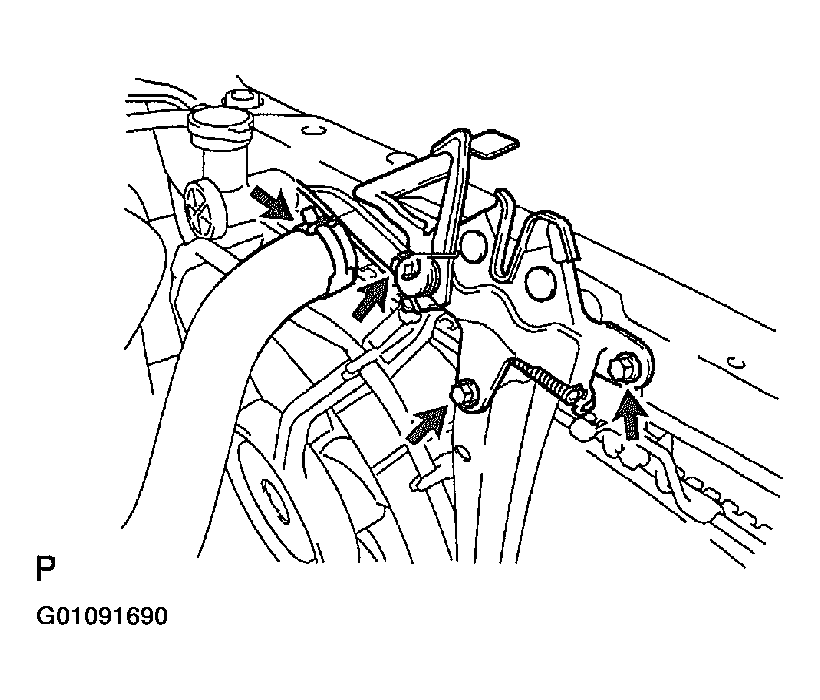

      Fig 3: Disconnecting Hood Lock
      G01091690Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 3 bolts, and disconnect the hood lock.
    2. Disconnect the wire from the clamp.
  5. Disconnect upper radiator hose  .
  6. Remove upper radiator support  .

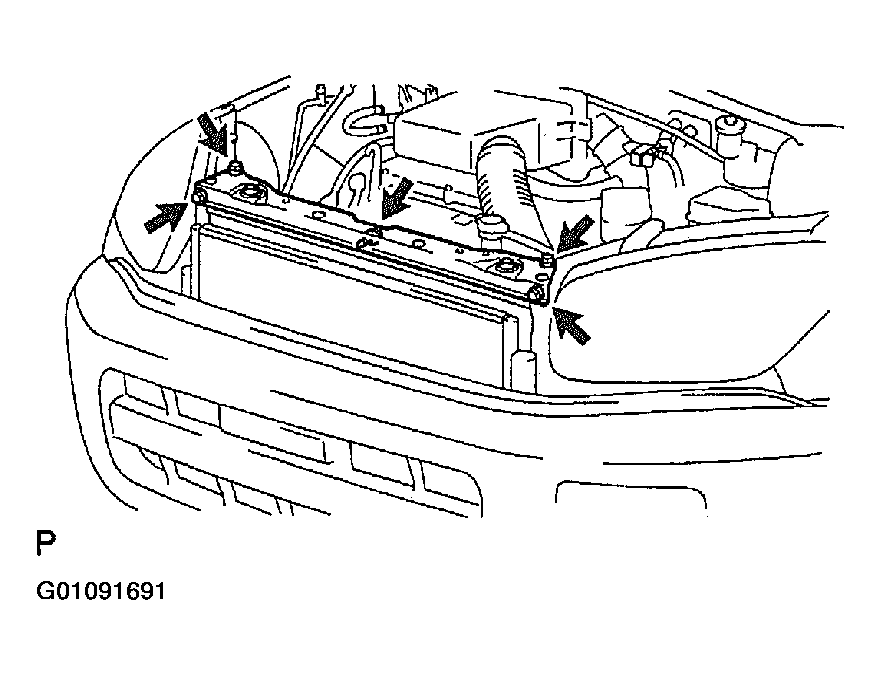

    Fig 4: Locating Radiator Bolts & Support
    G01091691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Remove the 5 bolts and radiator support.

  7. Remove LH engine under cover  .
  8. Remove radiator reservoir  .
  9. Remove No. 1 and No. 2 cooling fans (See  ELECTRIC COOLING FAN  )  .
  10. A/T: Disconnect oil 2 hoses  .

    Disconnect the 2 oil cooler hoses from the radiator.

  11. Disconnect ECT switch connector  .
  12. Disconnect lower radiator hose  .
  13. Remove radiator  .
  14. Remove upper and lower radiator supports from radiator  .
