Circuit Description

WARNING: This page is about a different car, the 2002 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

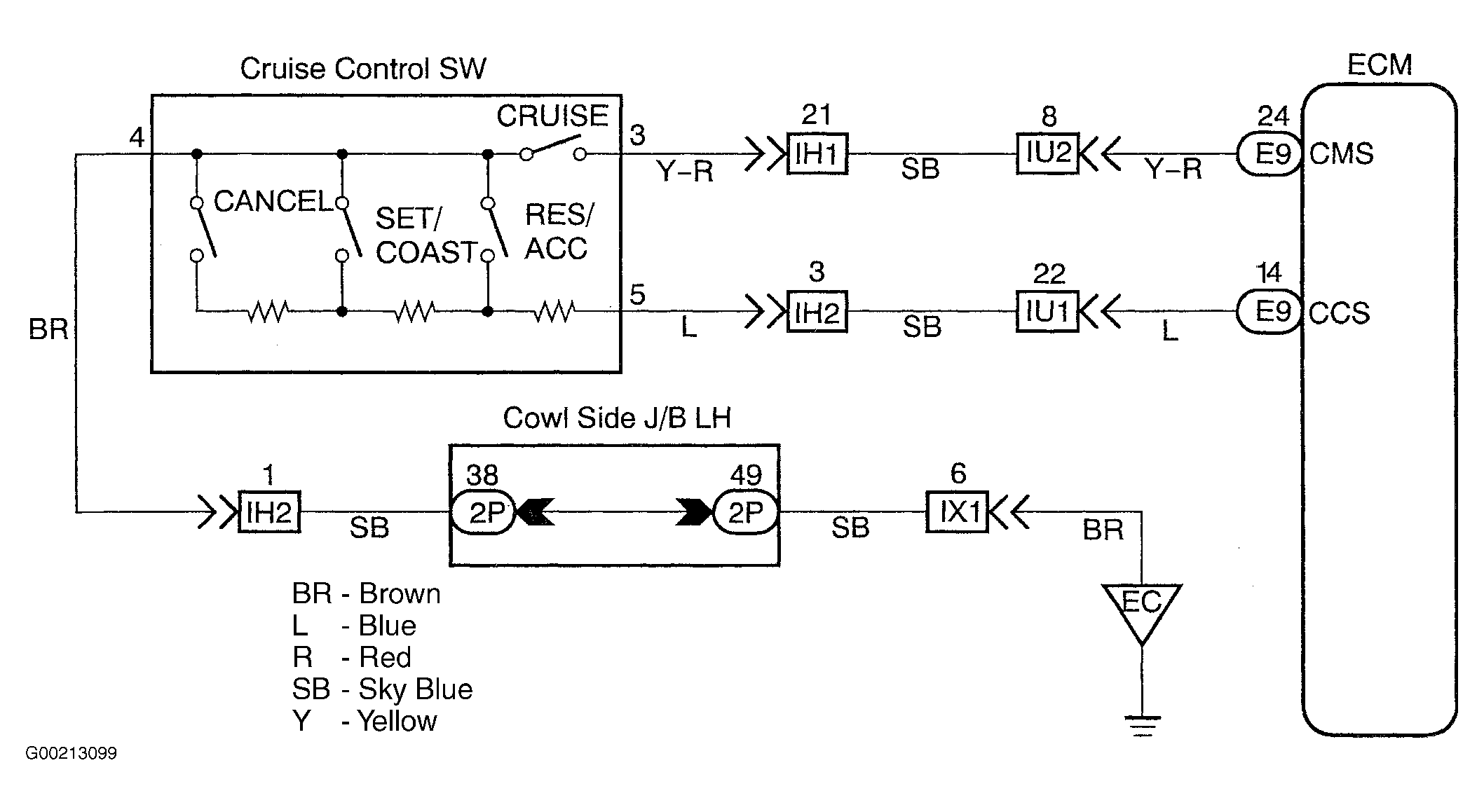

When the cruise control main switch is turned off, the cruise control does not operate. See Figure.
