Circuit Description
WARNING: This page is about a different car, the 2002 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

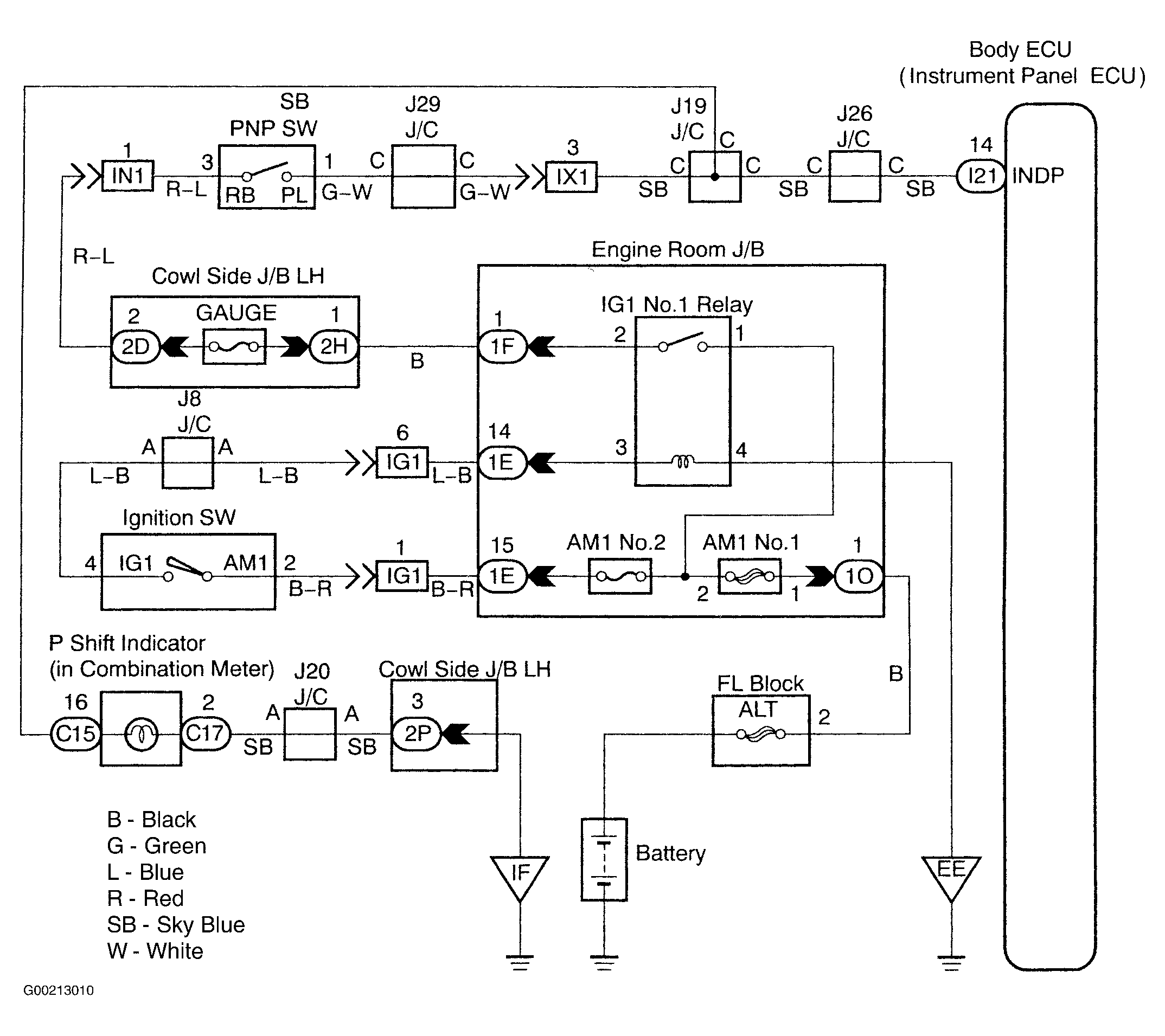

The park/neutral position switch detects the shift lever position P and sends signals to the body ECU. See Fig 1.
