Component Locations

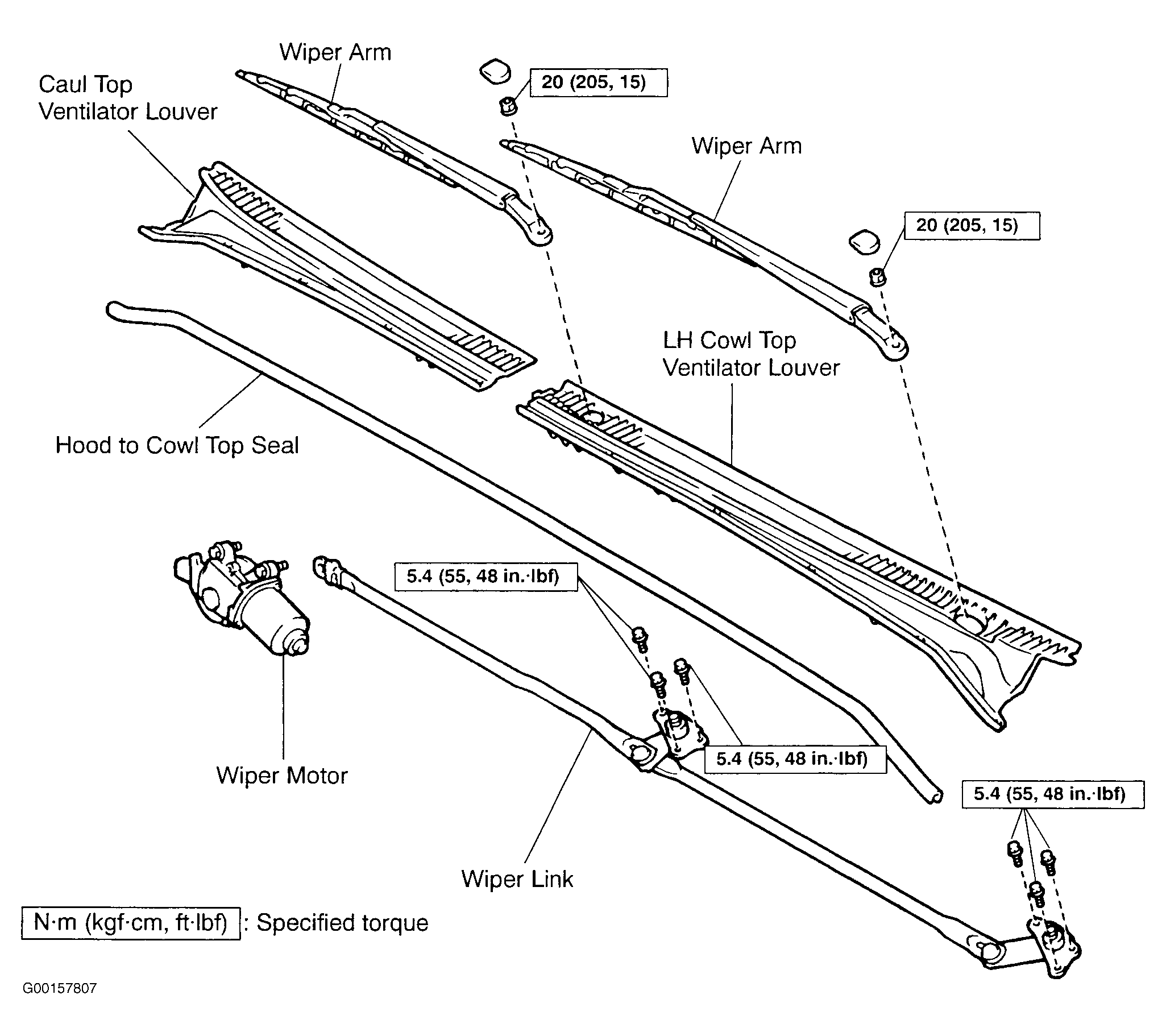

Fig 1: Locating Front Wiper & Washer Components
G00157807Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

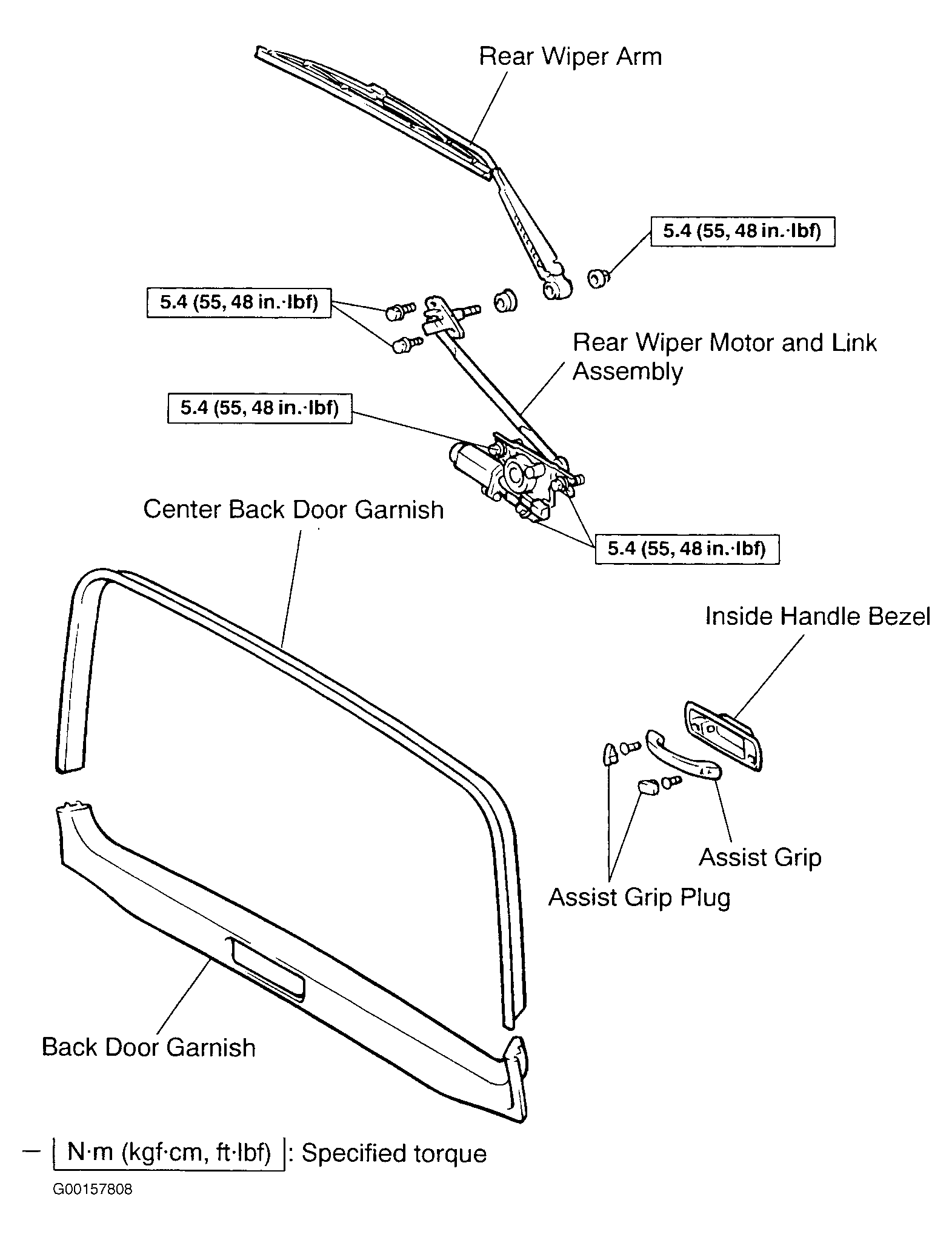

Fig 2: Locating Rear Wiper & Washer Components
G00157808Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
