Sliding Roof Control Switch Circuit
>>
Wiring Diagram
Sliding Roof Control Switch Circuit: Wiring Diagram

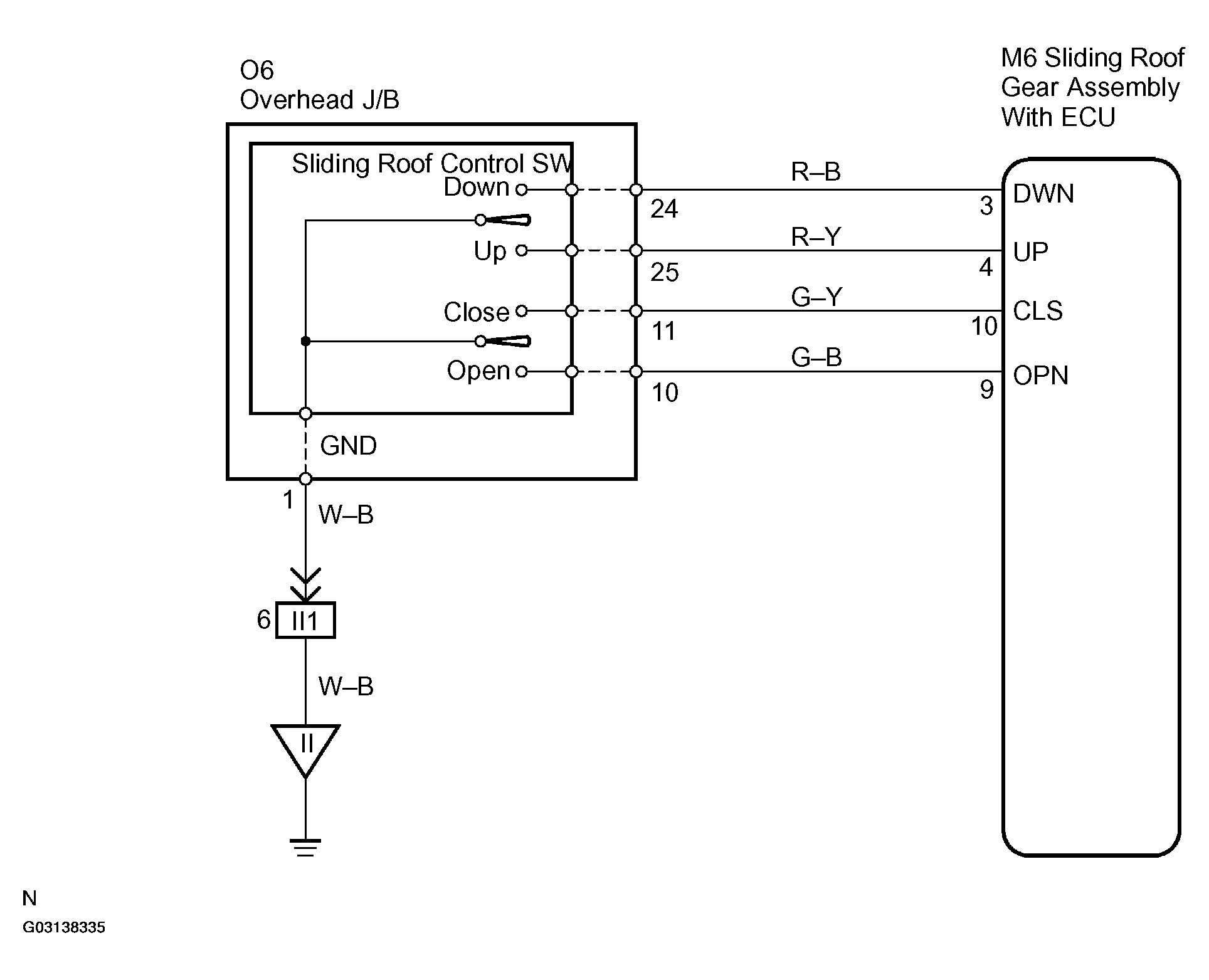

Fig 1: Sliding Roof Control Switch Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
