Parts Location

  1. NAVIGATION SYSTEM

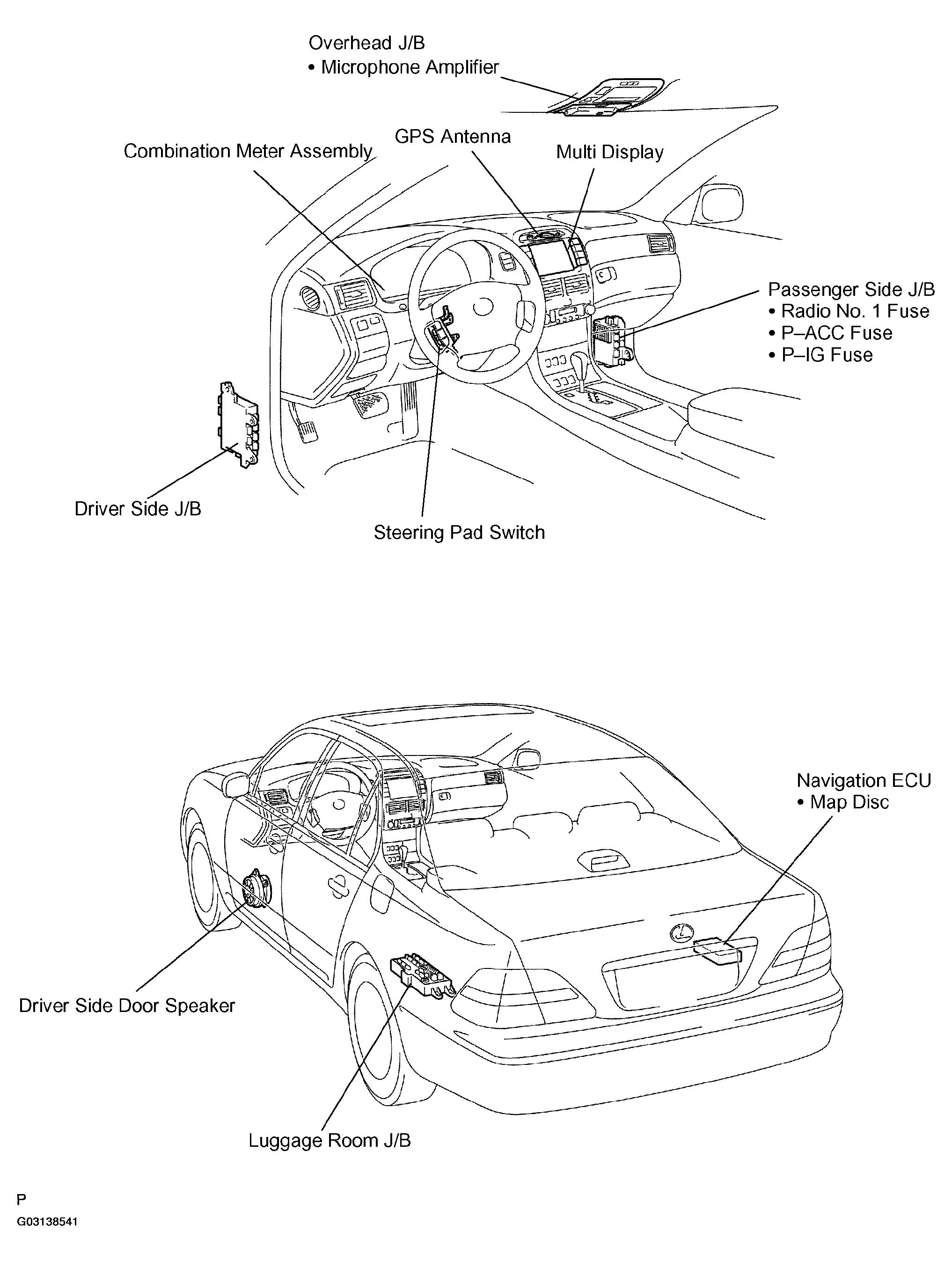

    Fig 1: Identifying Navigation System Components Location
    G03138541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CELLULAR MOBILE TELEPHONE SYSTEM

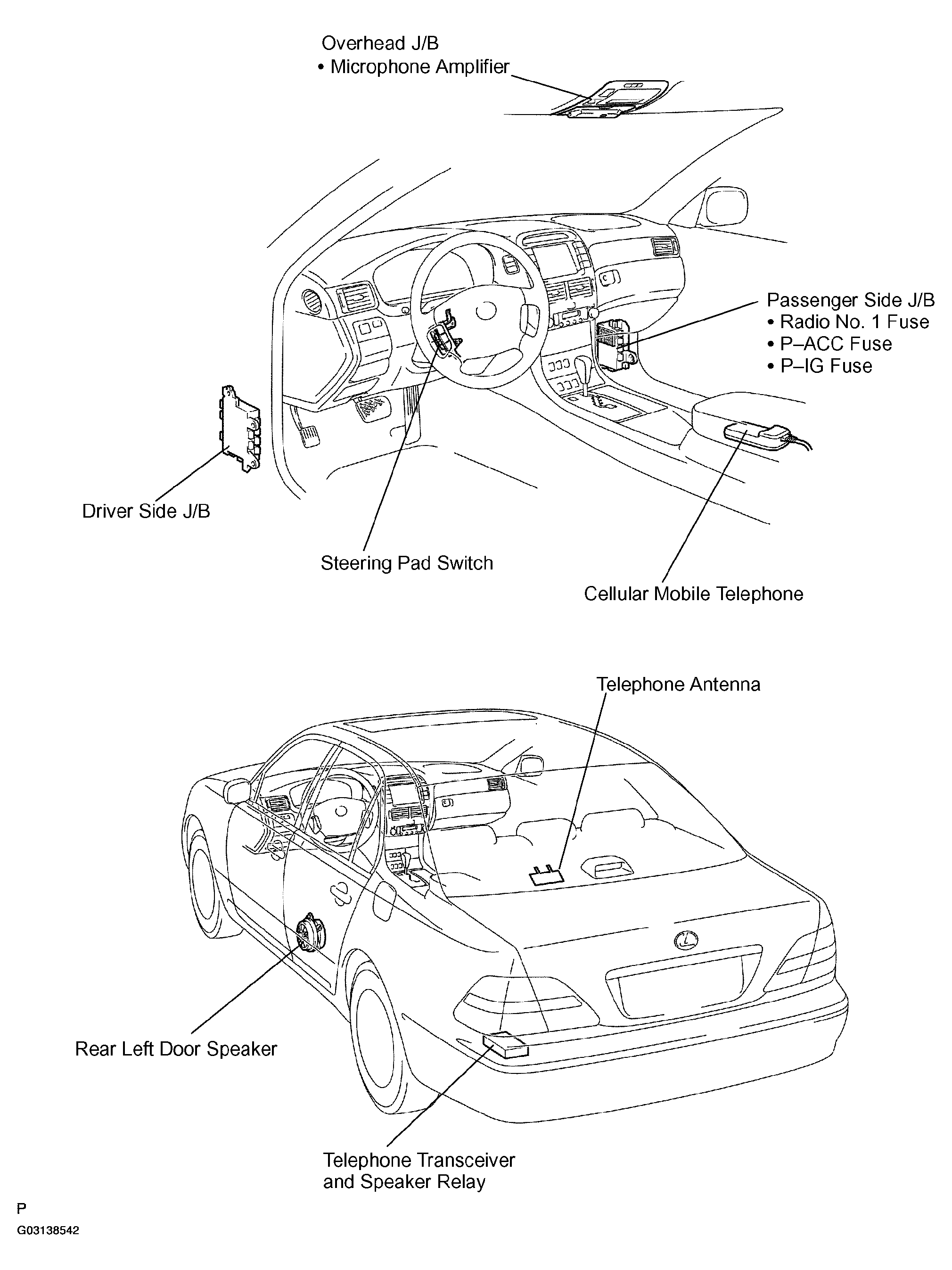

    Fig 2: Identifying Cellular Mobile Telephone System Components Location
    G03138542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
