Terminals Of Ecu

  1. CONNECTORS

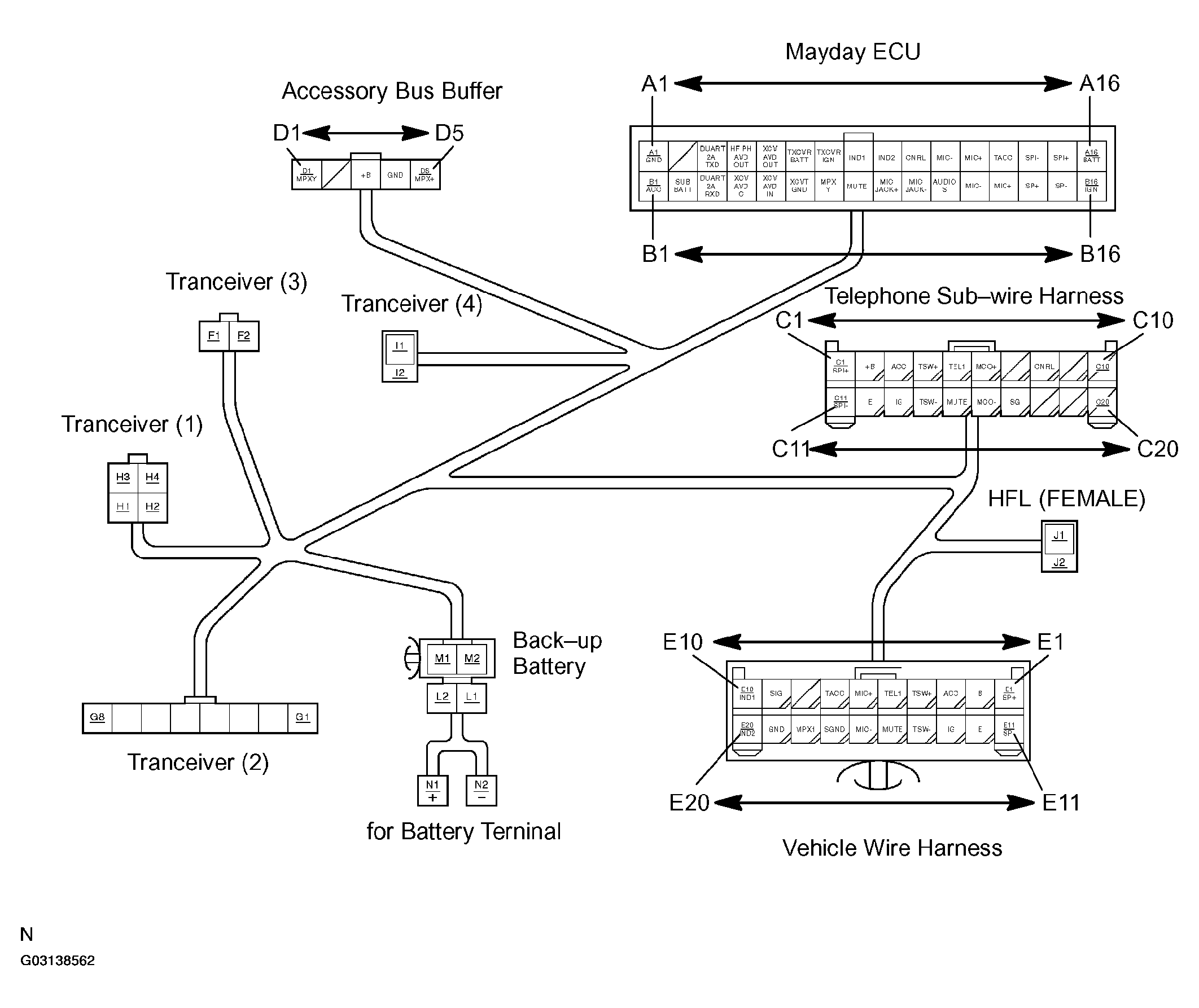

    Fig 1: Identifying ECU Connector Terminals
    G03138562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. WIRING DIAGRAMS

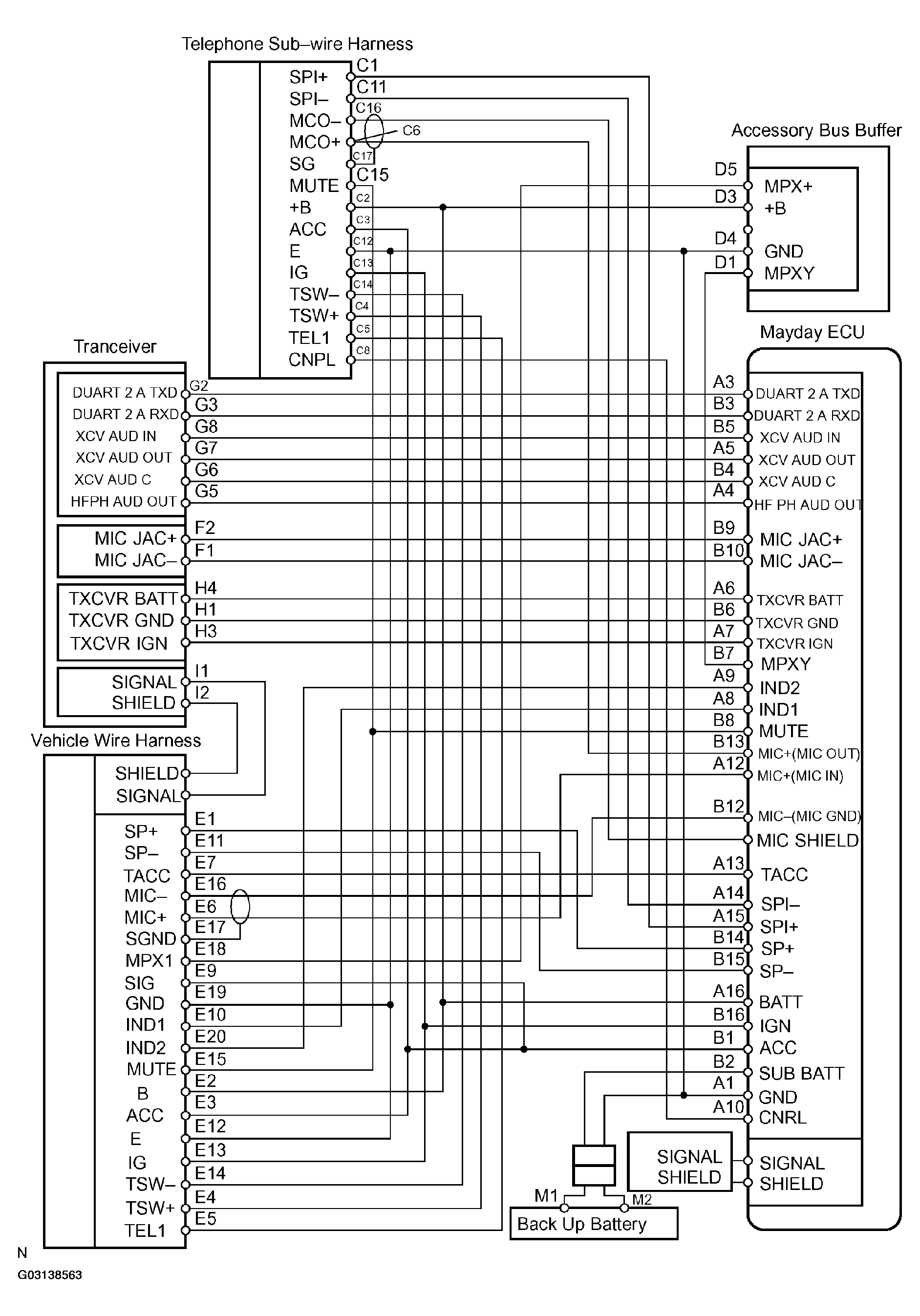

    Fig 2: ECU Wiring Diagrams
    G03138563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
