Cooling System (Mechanical): Radiator: Components

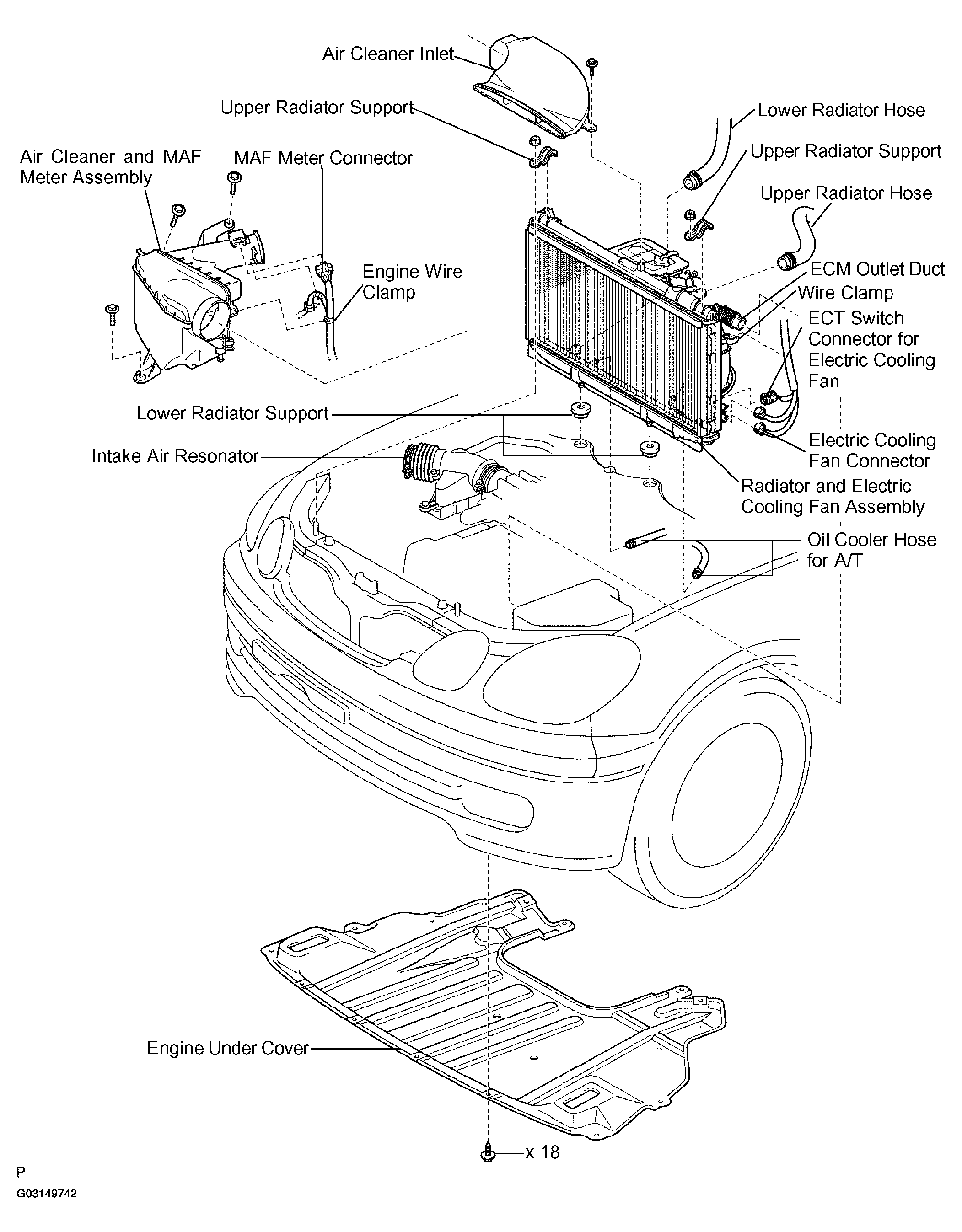

Fig 1: Exploded View Of Radiator Removal & Installation
G03149742Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

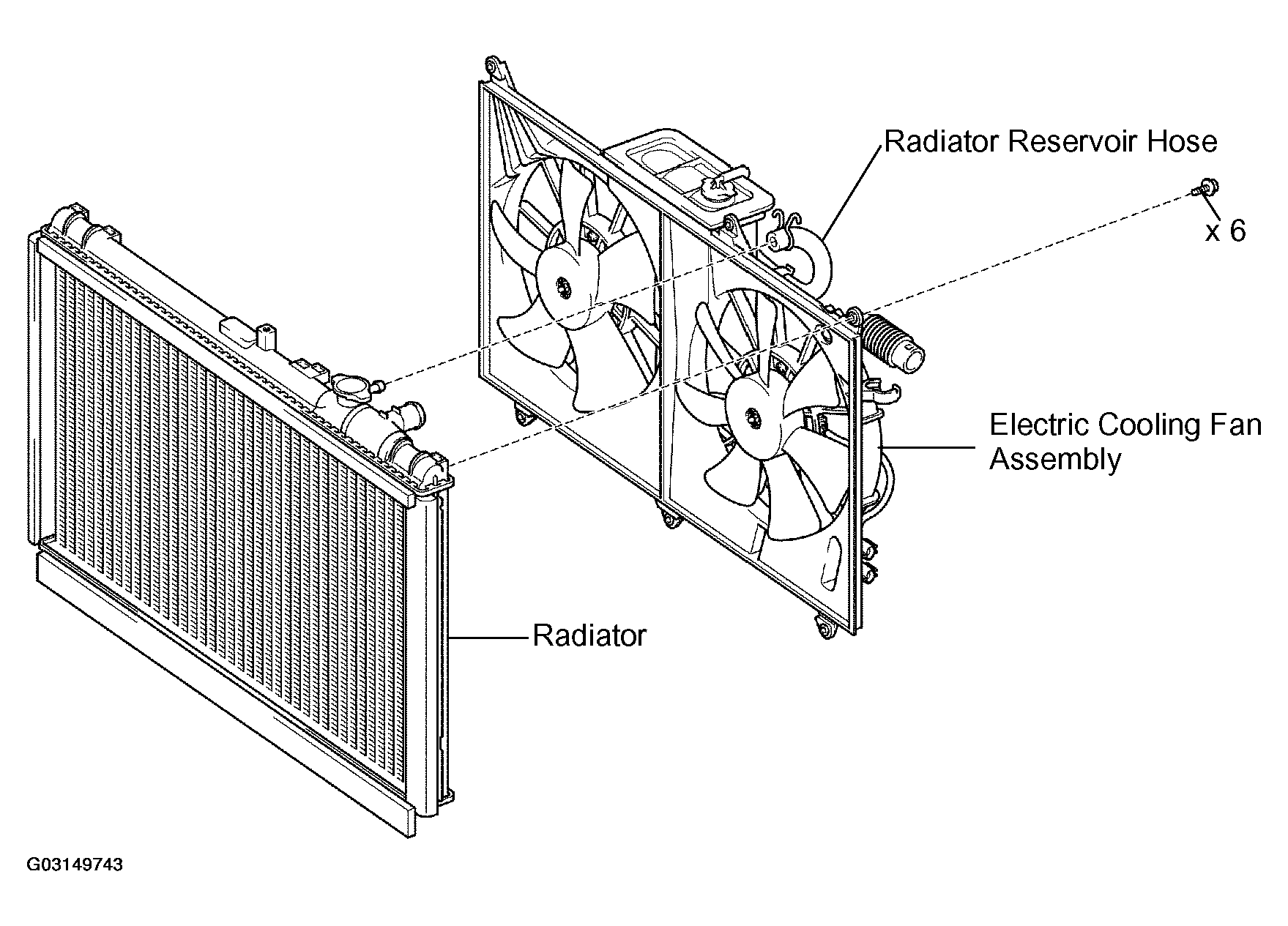

Fig 2: Exploded View Of Electric Cooling Fan Removal & Installation
G03149743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

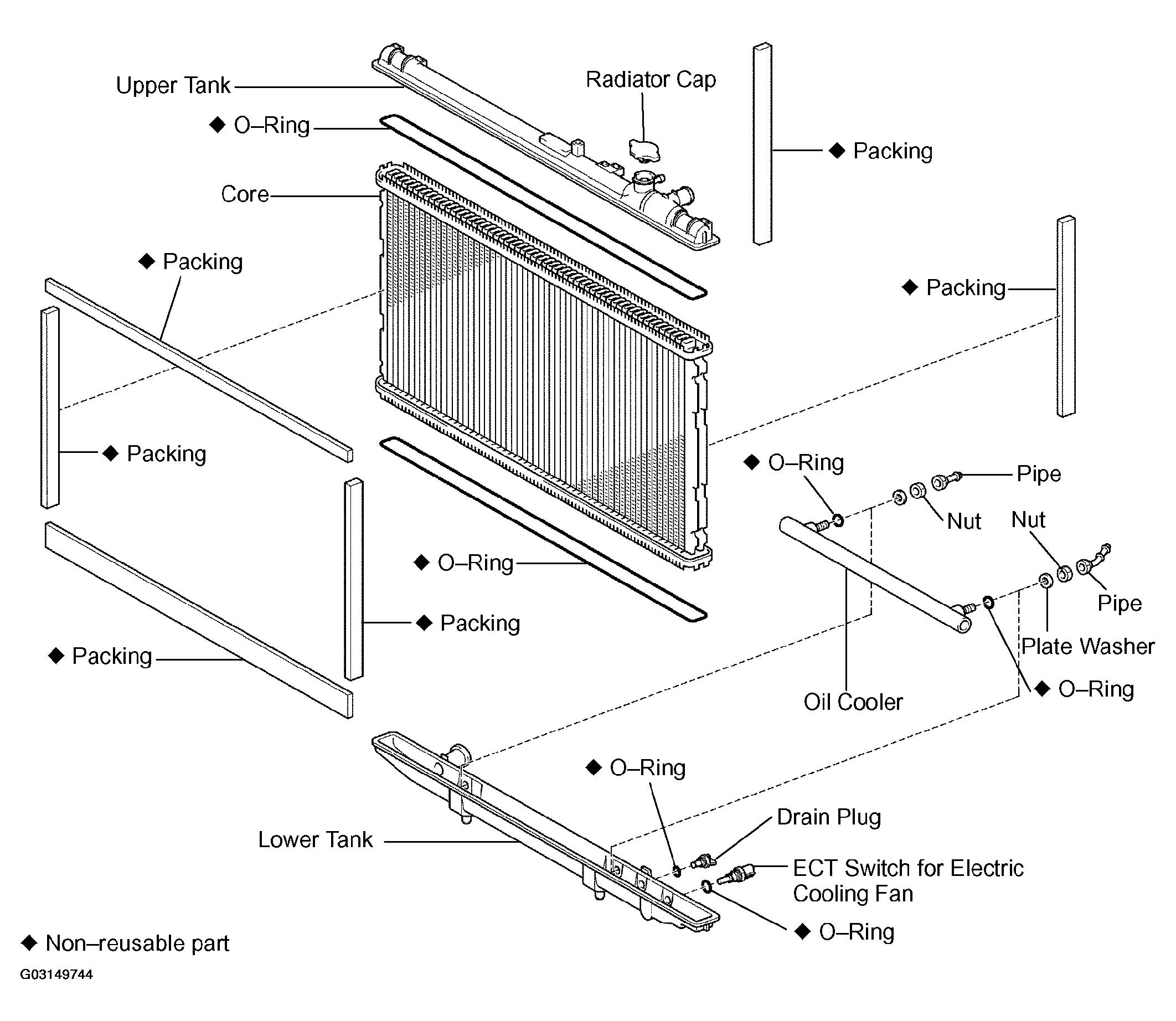

Fig 3: Exploded View Of Radiator Assembly
G03149744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
