Abs & VSC Actuator: Removal

  1. Remove right front fender liner.
  2. Remove A/C tube clamp bracket bolt.
  3. Disconnect brake line.
    1. Using (SST 09023-00100), disconnect the 6 brake lines from the brake actuator.
      • Torque:  15 N.m (155 kgf.cm, 11 ft.lbf)
    2. Disconnect the brake hose from the brake actuator.

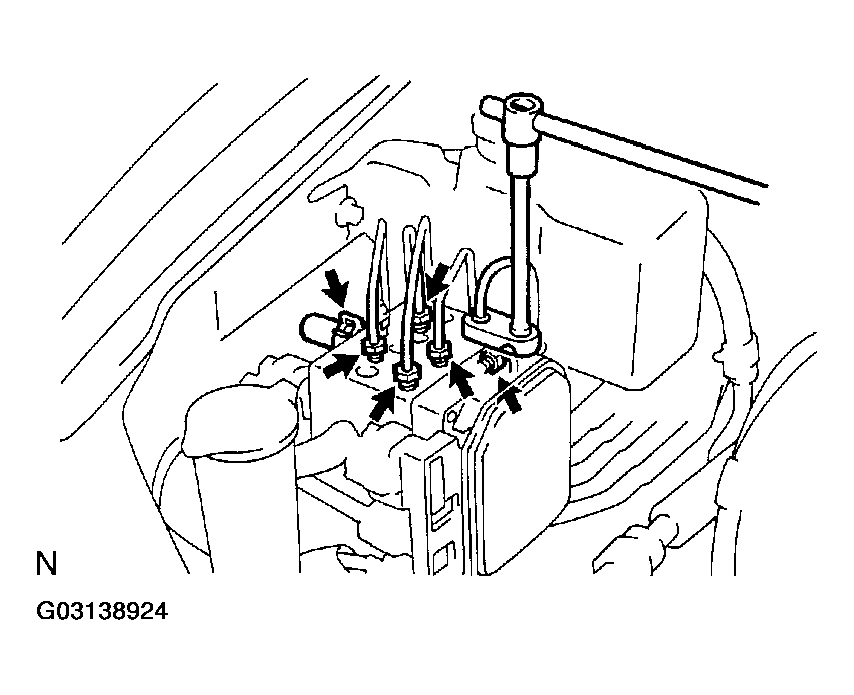

    Fig 1: Disconnecting Brake Lines From Brake Actuator
    G03138924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Remove brake actuator assembly.
    1. Disconnect the 4 connectors from the brake actuator.
    2. Remove the 2 bolts, 2 nuts and brake actuator assembly.
      1. Torque:  19 N.m (195 kgf.cm, 14 ft.lbf)

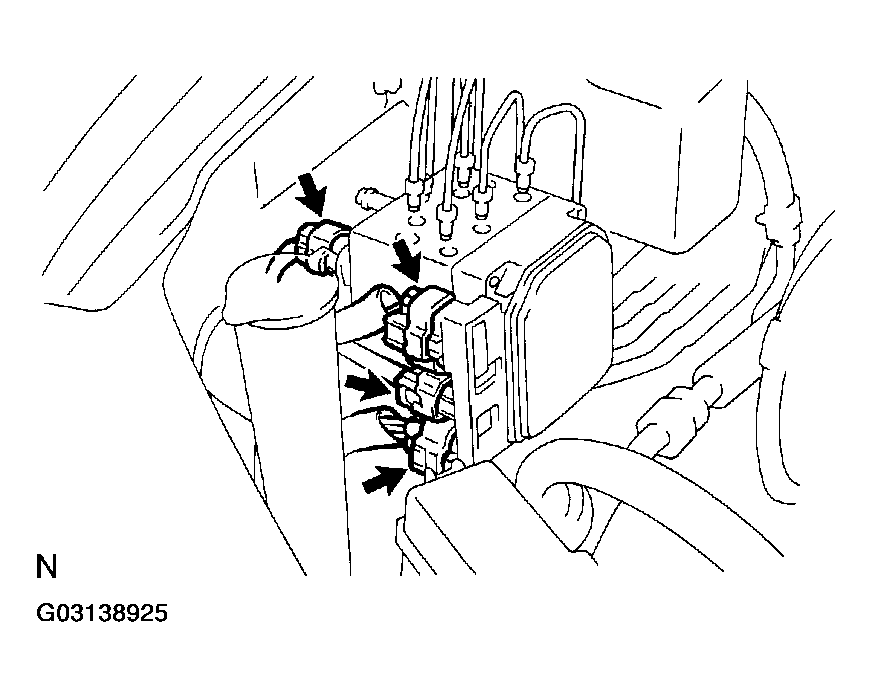

    Fig 2: Identifying Brake Actuator Connectors
    G03138925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. Remove brake actuator.
    1. Remove the 2 nuts and actuator from the actuator bracket.
      1. Torque:  5.4 N.m (55 kgf.cm, 48 ft.lbf)
    2. Remove the 2 holders and 3 cushions from the brake actuator.
