Home >> Lexus >> 2001 >> ES 300 >> Repair and Diagnosis >> Brakes >> Traction Control >> Abs & TRAC Actuator >> Components

Abs & TRAC Actuator: Components

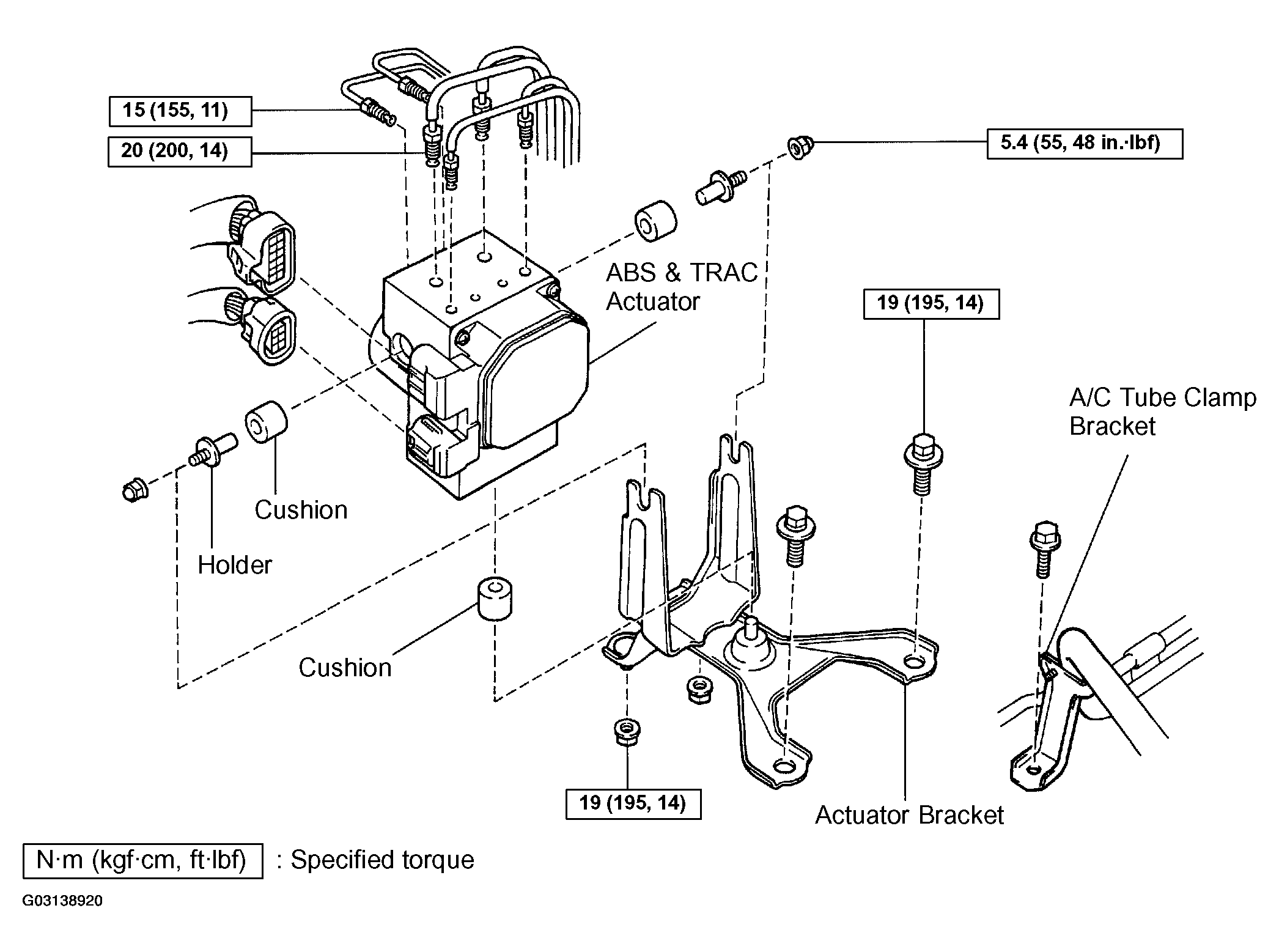

Fig 1: Exploded View Of ABS & TRAC Actuator Assembly

G03138920

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
