Valve Body Assembly: Inspection
- Clean all parts in solvent. Dry with compressed air. Ensure all valve body passages are clear. Ensure strainers are not damaged or clogged. Inspect valves for scoring or roughness.
- Ensure valves slide freely in bores. Inspect valve springs for damage, squareness and collapsed coils. Measure spring free length. Replace spring if not within specification. See appropriate VALVE BODY SPRING SPECIFICATIONS table. Ensure valve body springs correspond with appropriate valve. Ensure retainers are installed in appropriate locations. See VALVE BODY RETAINER SPECIFICATIONS table.

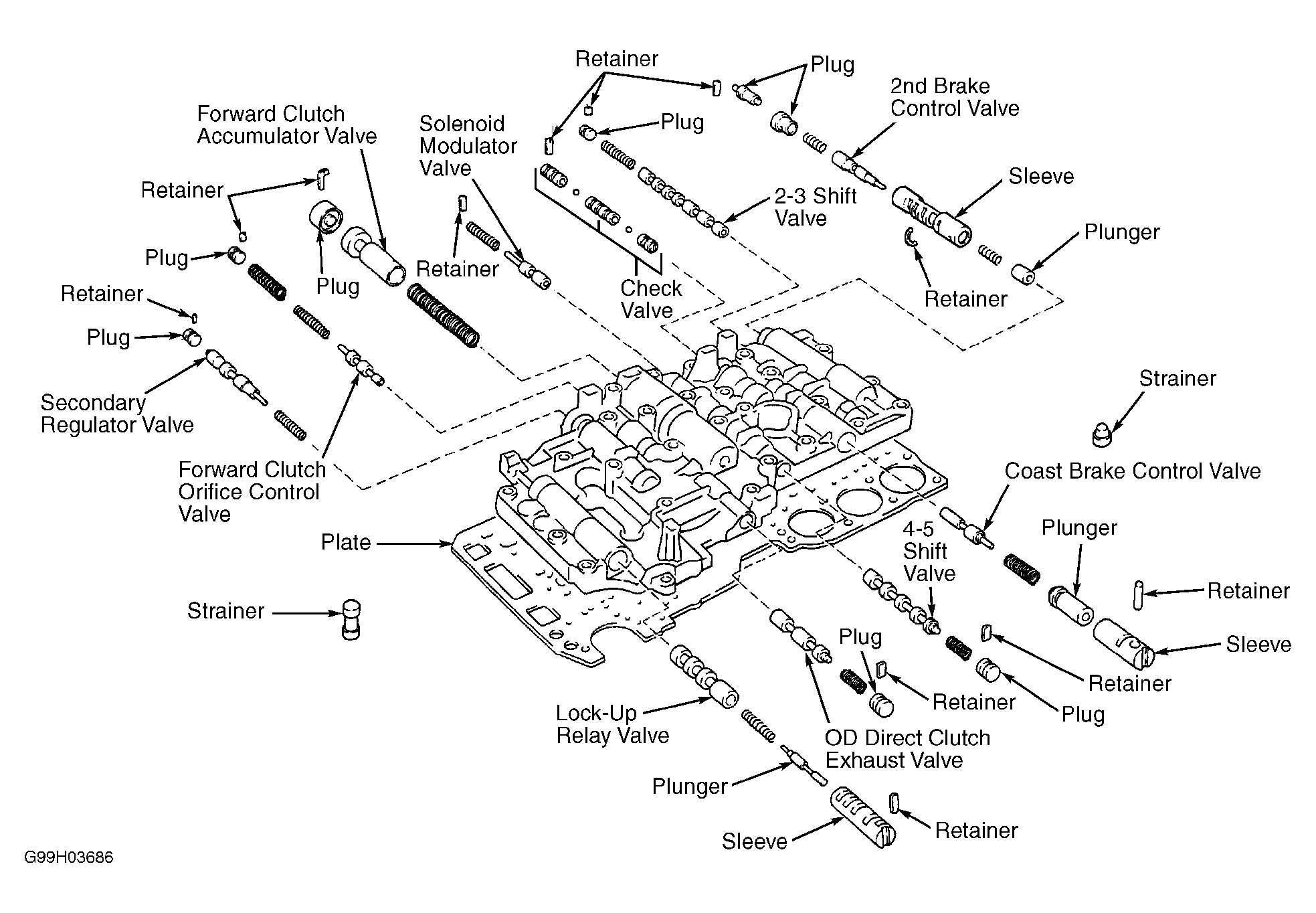

UPPER VALVE BODY SPRING SPECIFICATIONS
| Spring |
Free Length - In. (mm) |
Diameter - In. (mm) |
Color |
| Coast Brake Control Valve |
1.060 (26.92) |
.343 (8.70) |
Green |
| Forward Clutch Accumulator Valve |
3.077 (78.16) |
.689 (17.50) |
Yellow |
| Forward Clutch Orifice Control Valve |
1.461 (37.13) |
.439 (11.14) |
White |
| Forward Clutch Orifice Control Valve |
.826 (21.50) |
.306 (7.76) |
None |
| Lock-Up Relay Valve |
.922 (23.42) |
.236 (5.86) |
Red |
| O/D Direct Clutch Exhaust Valve |
.955 (24.25) |
.343 (8.70) |
Orange |
| Secondary Regulator Valve |
1.357 (34.48) |
.363 (9.22) |
Red |
| Solenoid Modulator Valve |
1.417 (35.99) |
.327 (8.30) |
Light Blue |
| 2nd Brake Control Valve (1st Spring) |
| V8 |
1.211 (30.75) |
.353 (8.70) |
White |
| 6-Cyl. |
1.026 (26.05) |
.283 (7.20) |
Yellow |
| 2nd Brake Control Valve (2nd Spring) |
| V8 |
.956 (24.29) |
.303 (7.70) |
Blue |
| 6-Cyl. |
.779 (19.79) |
.303 (7.70) |
Pink |
| 2-3 Shift Valve |
1.004 (25.50) |
.383 (9.73) |
Red |
| 4-5 Shift Valve |
1.004 (25.50) |
.383 (9.73) |
Red |

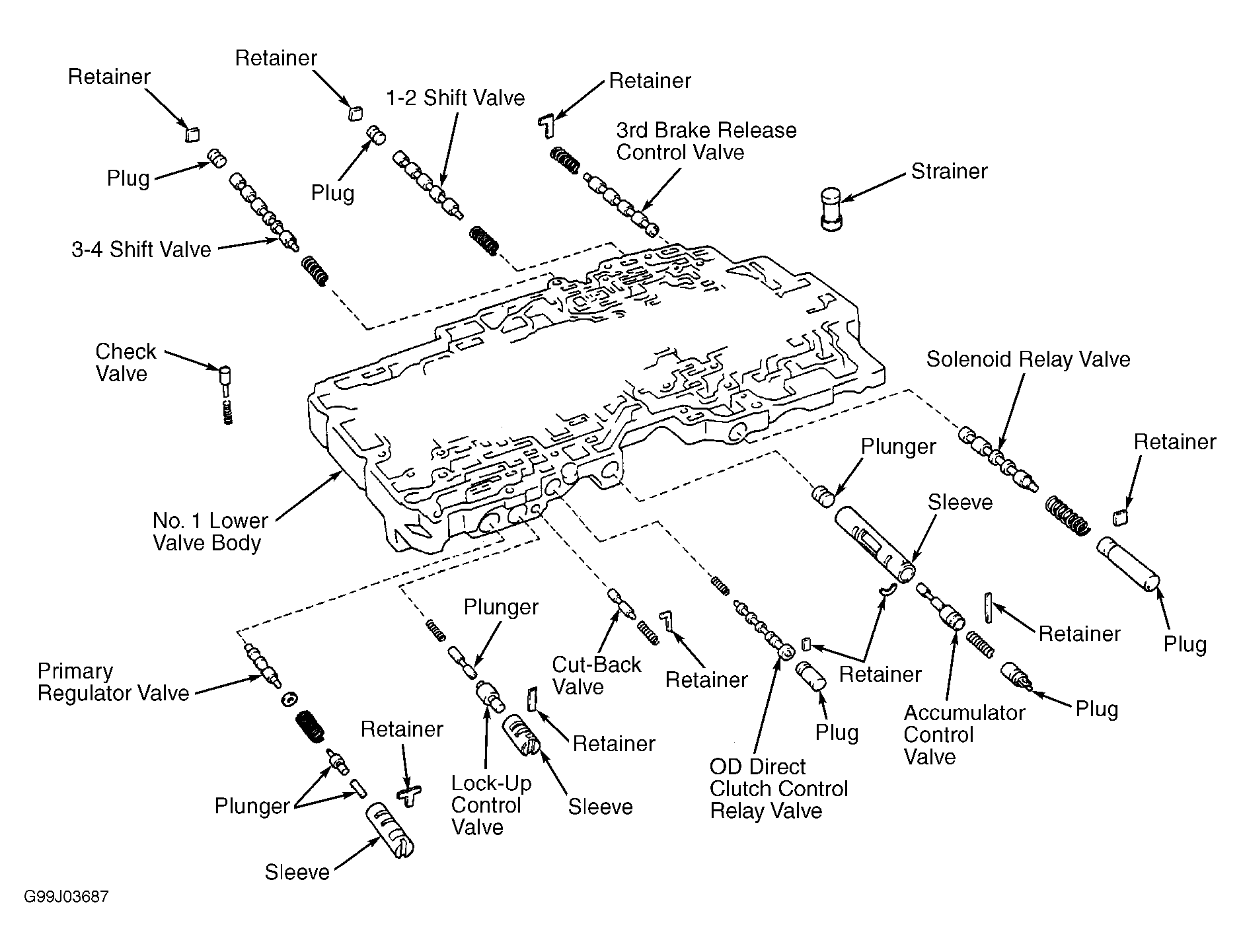

LOWER VALVE BODY NO. 1 SPRING SPECIFICATIONS
| Spring |
Free Length - In. (mm) |
Diameter - In. (mm) |
Color |
| Accumulator Control Valve |
1.081 (27.47) |
.348 (8.85) |
Light Green |
| Cut Back Valve |
.890 (22.60) |
.320 (8.13) |
None |
| Lock-Up Control Valve |
.822 (20.87) |
.219 (5.55) |
Yellow |
| O/D Direct Clutch Control Relay Valve |
.799 (20.30) |
.240 (6.10) |
None |
| Primary Regulator Valve |
1.566 (39.78) |
.743 (18.88) |
Light Green |
| Solenoid Relay Valve |
1.264 (32.11) |
.346 (8.80) |
Beige |
| 3rd Brake Release Control Valve |
.955 (24.25) |
.343 (8.70) |
Orange |
| 1-2 Shift Valve |
1.004 (25.50) |
.383 (9.73) |
Red |
| 3-4 Shift Valve |
1.004 (25.50) |
.383 (9.73) |
Red |

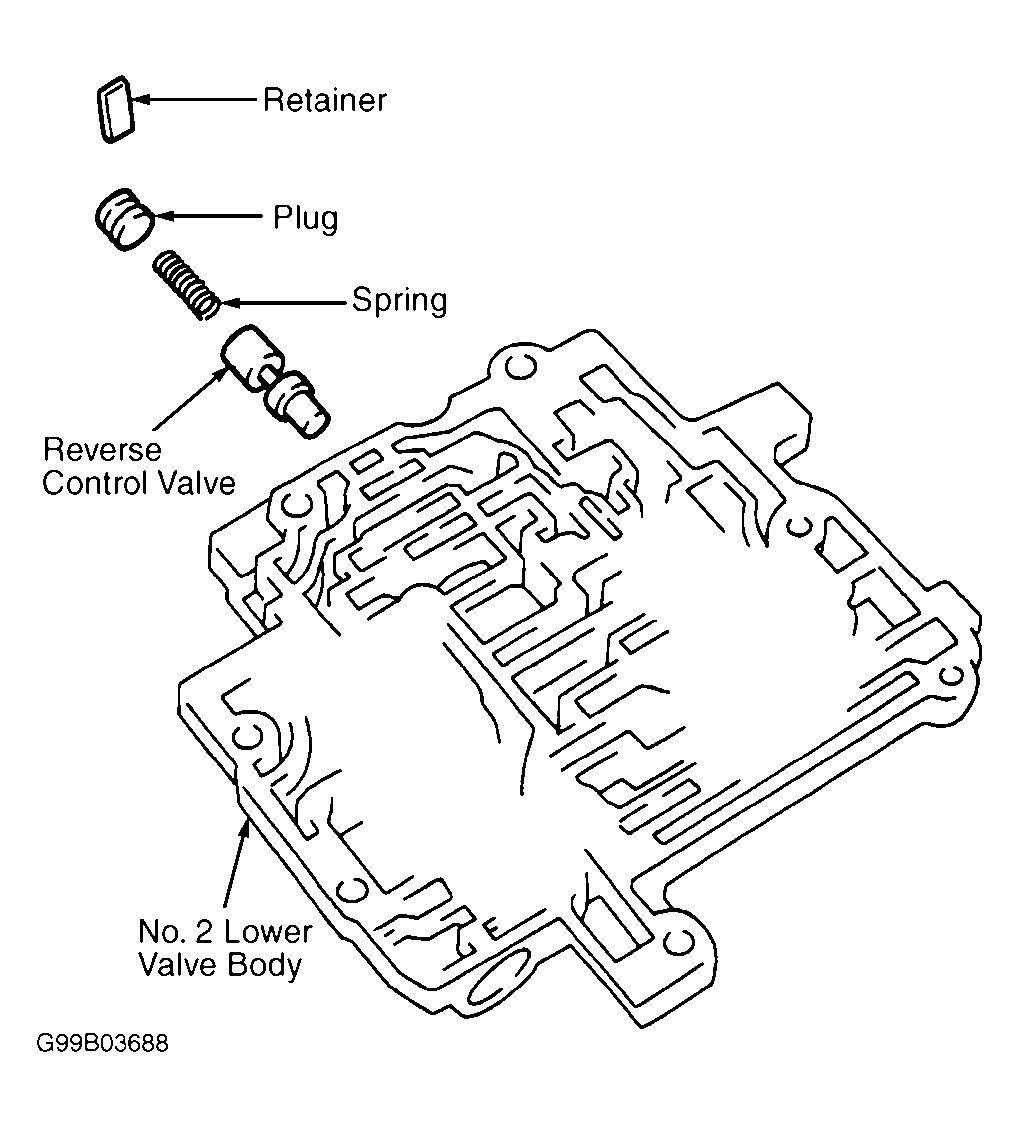

LOWER VALVE BODY NO. 2 SPRING SPECIFICATIONS
| Spring |
Free Length - In. (mm) |
Diameter - In. (mm) |
Color |
| Reverse Control Valve |
1.007 (25.58) |
.340 (8.64) |
None |
VALVE BODY RETAINER SPECIFICATIONS
| Retainer |
Height - In. (mm) |
Width - In. (mm) |
| Upper Valve Body |
| Check Valve |
.394 (10.0) |
.197 (5.0) |
| Coast Brake Control Valve |
.591 (15.0) |
.197 (5.0) |
| Forward Clutch Accumulator Valve |
1.437 (36.5) |
N/A |
| Forward Clutch Orifice Control Valve |
.335 (8.5) |
.197 (5.0) |
| Lock-Up Relay Valve |
N/A |
N/A |
| O/D Direct Clutch Exhaust Valve |
.335 (8.5) |
.197 (5.0) |
| Secondary Regulator Valve |
.394 (10.0) |
.197 (5.0) |
| Solenoid Modulator Valve |
.827 (21.0) |
N/A |
| 2nd Brake Control Valve |
.650 (16.5) |
.236 (6.0) |
| 2-3 Shift Valve |
.315 (8.0) |
.197 (5.0) |
| 4-5 Shift Valve |
.394 (10.0) |
.197 (5.0) |
| Lower Valve Body No. 1 |
| Accumulator Control Valve |
1.142 (29.0) |
.197 (5.0) |
| Cut Back Valve |
.827 (21.0) |
N/A |
| Lock-Up Control Valve |
.748 (19.0) |
.197 (5.0) |
| O/D Direct Clutch Control Relay Valve |
.335 (8.5) |
.197 (5.0) |
| Primary Regulator Valve |
N/A |
N/A |
| Solenoid Relay Valve |
.315 (8.0) |
.315 (8.0) |
| 3rd Brake Release Control Valve |
.827 (21.0) |
N/A |
| 1-2 Shift Valve |
.315 (8.0) |
.315 (8.0) |
| 3-4 Shift Valve |
.315 (8.0) |
.315 (8.0) |
| Lower Valve Body No. 2 |
| Reverse Control Valve |
.335 (8.5) |
.197 (5.0) |
