Valve Body Assembly: Disassembly

Remove detent spring and manual valve from valve body assembly. Remove solenoids and lock plates, oil strainer and pressure relief valve. See Fig 1. Remove lower valve body No. 2-to-upper valve body bolts. See Fig 2. Note bolt length and location. Separate lower valve body No. 2 from lower valve body No. 1. See Fig 3.
Turn over valve body assembly and remove 30 bolts securing upper valve body to lower valve body No. 1. See Fig 4. Separate upper valve body from lower valve body No. 1. Turn upper valve body over and remove 2 screws and separator plate.

Fig 1: Identifying Valve Body Solenoids

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

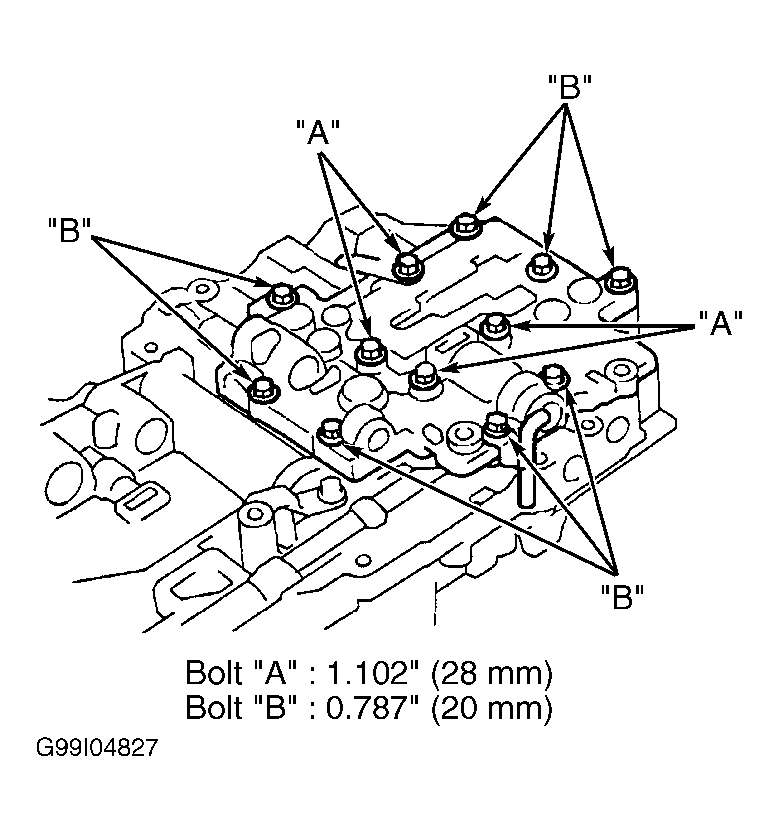

Fig 2: Identifying Lower Valve Body No. 2 Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Exploded View Of Valve Body Assembly

Fig 4: Identifying Upper Valve Body Bolts

CAUTION: DO NOT allow valve body plate to separate from upper valve body during removal, or check balls and strainer may fall out.
