Overdrive Brake: Disassembly

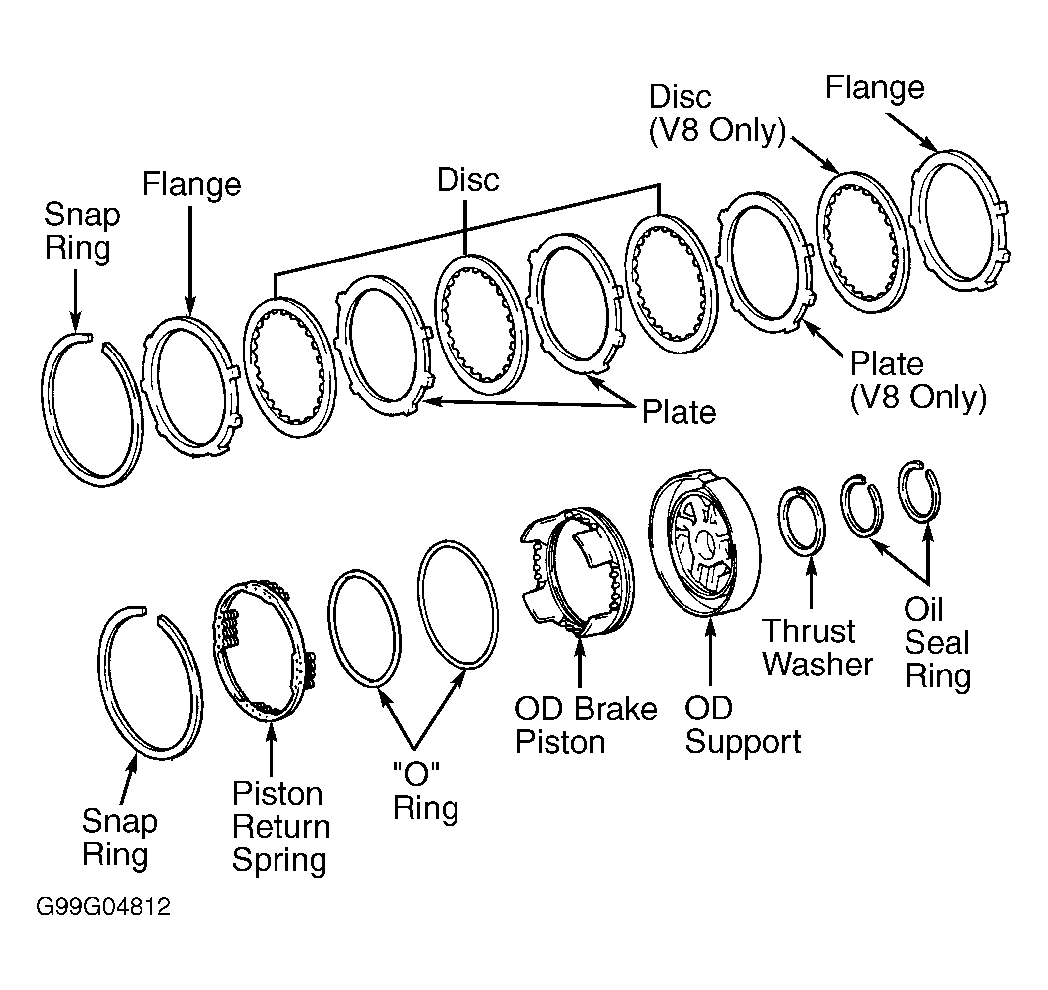

Remove all thrust washers from overdrive support. Using appropriate compressor, compress piston return spring. Note location of snap ring ends for reassembly reference. Remove snap ring. Place overdrive support on direct clutch assembly. Hold brake piston in a level position. Carefully apply air pressure to piston supply port, and remove piston. Remove oil seal rings from rear of overdrive support. See Figure.
