Automatic A/C-Heater Systems: Description
WARNING:
To avoid injury from accidental air bag deployment, read and carefully follow all SERVICE PRECAUTIONS and DISABLING & ACTIVATING AIR BAG SYSTEM procedures in AIR BAG SYSTEM SAFETY article in GENERAL SERVICING.
NOTE:
When battery is disconnected, radio will go into anti-theft protection mode. Obtain radio anti-theft protection code from owner prior to servicing vehicle.

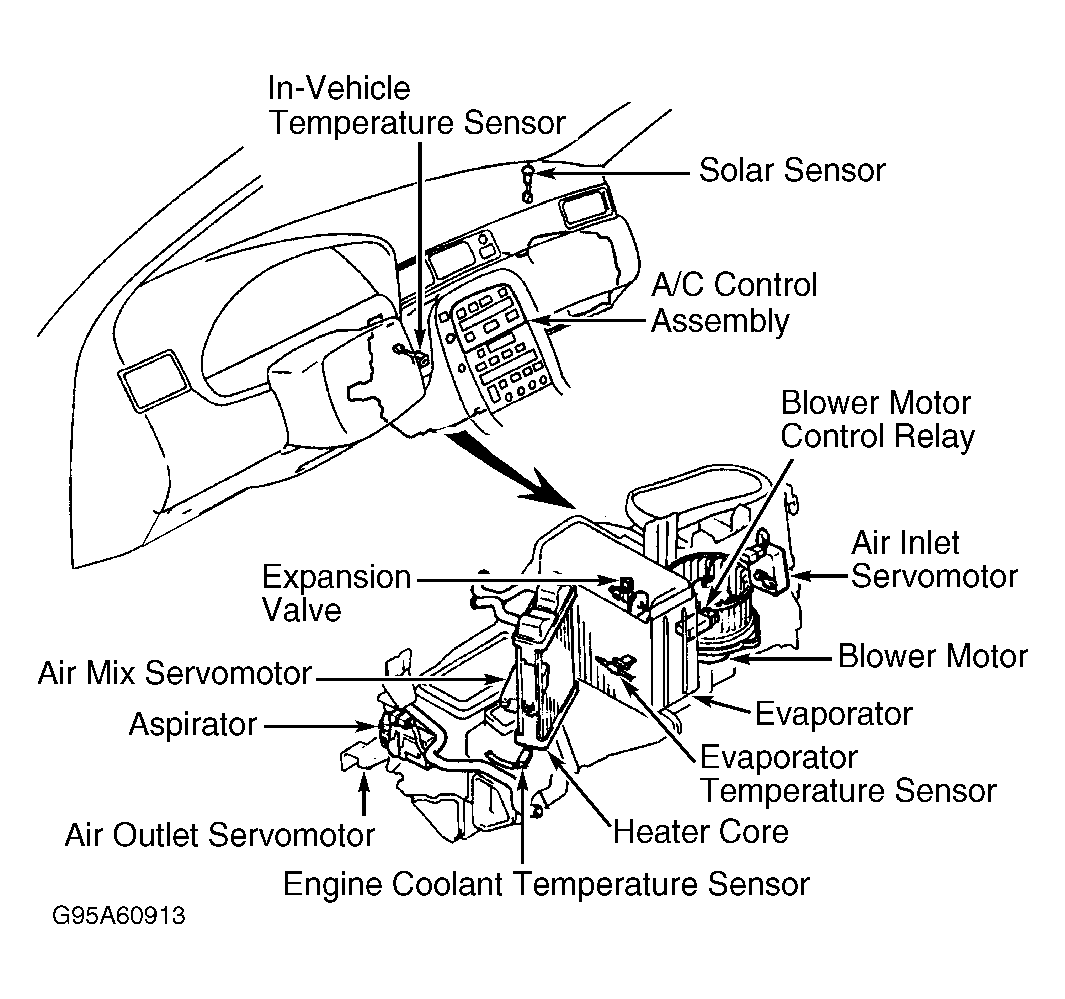

An Electronic Control Unit (ECU), located within the A/C-heater control panel, automatically controls all air conditioning and heating functions. Manual controls allow the driver to select air distribution mode and desired temperature. In addition to normal A/C system components, the system includes various motors, controls, and sensors. See Fig 1. The system has self-diagnostic capabilities.
