Relay Block No. 4

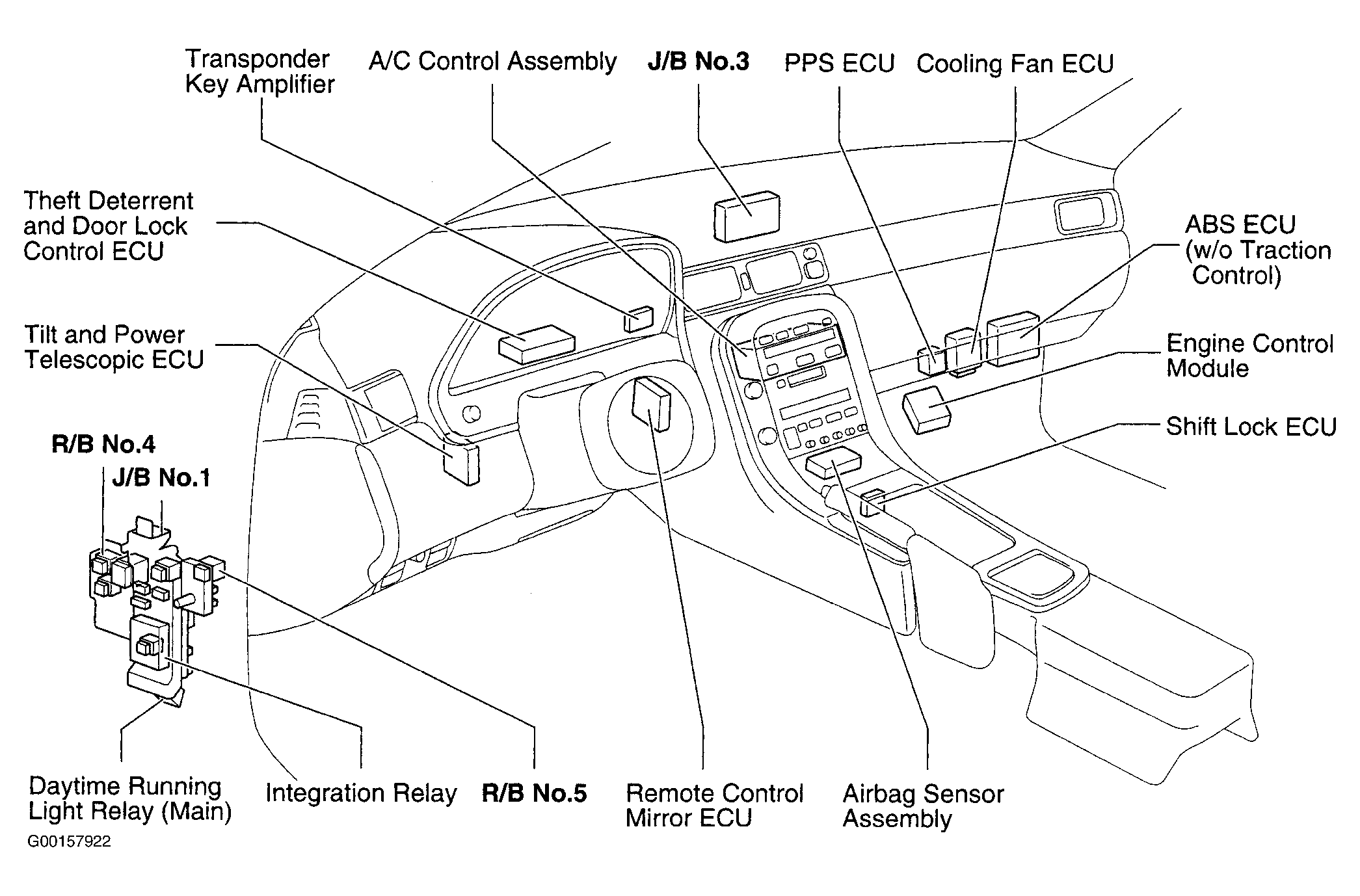

Relay block (R/B) No. 4 is located behind left kick panel. See Figure.

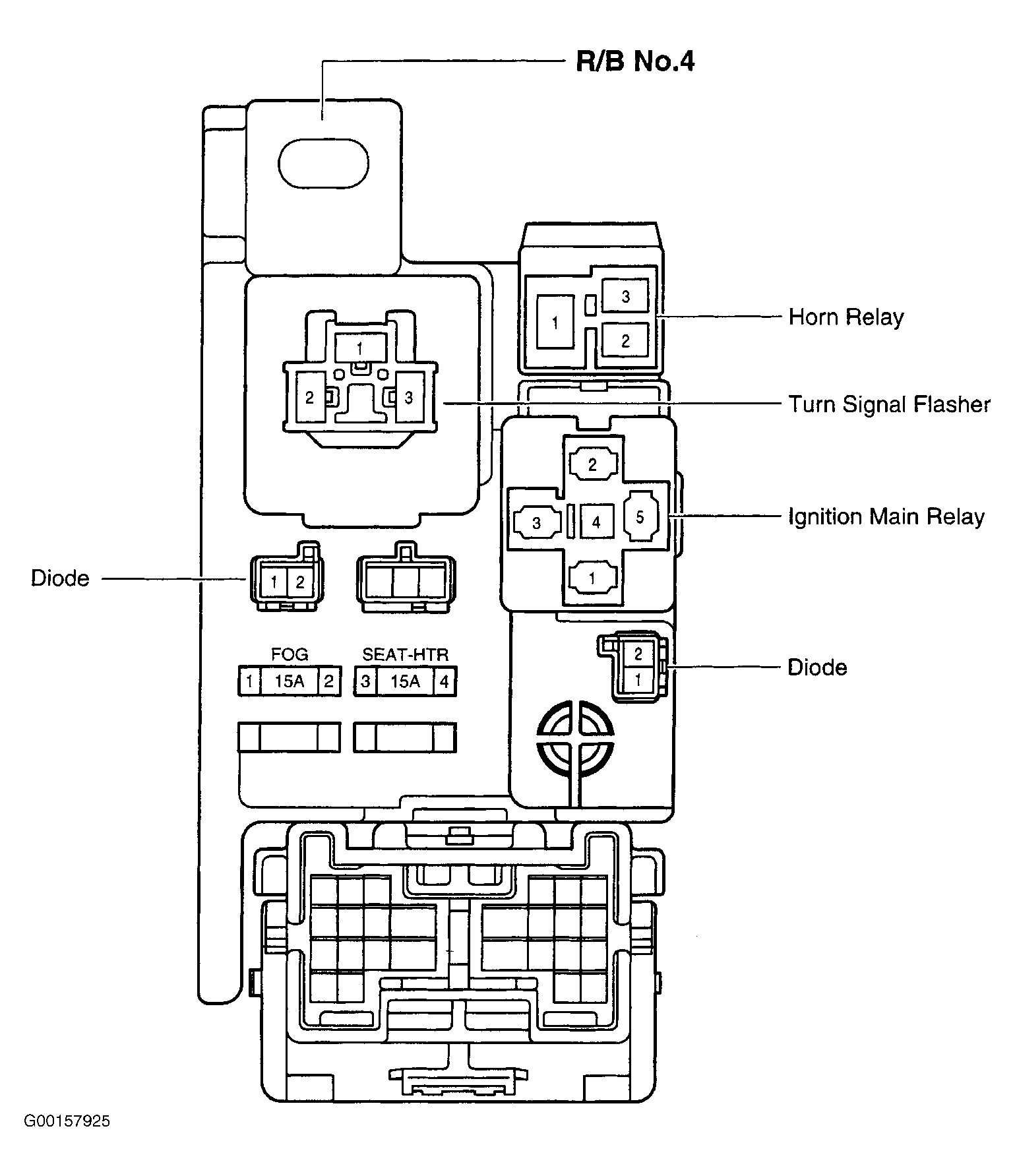

Fig 1: Identifying Relay Block No. 4 Fuses & Relays

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Relay Block No. 4 Legend
