Junction Block No. 1

Junction block (J/B) No. 1 is located behind left kick panel. See Fig 1.

Fig 1: Locating Instrument Panel Electrical Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

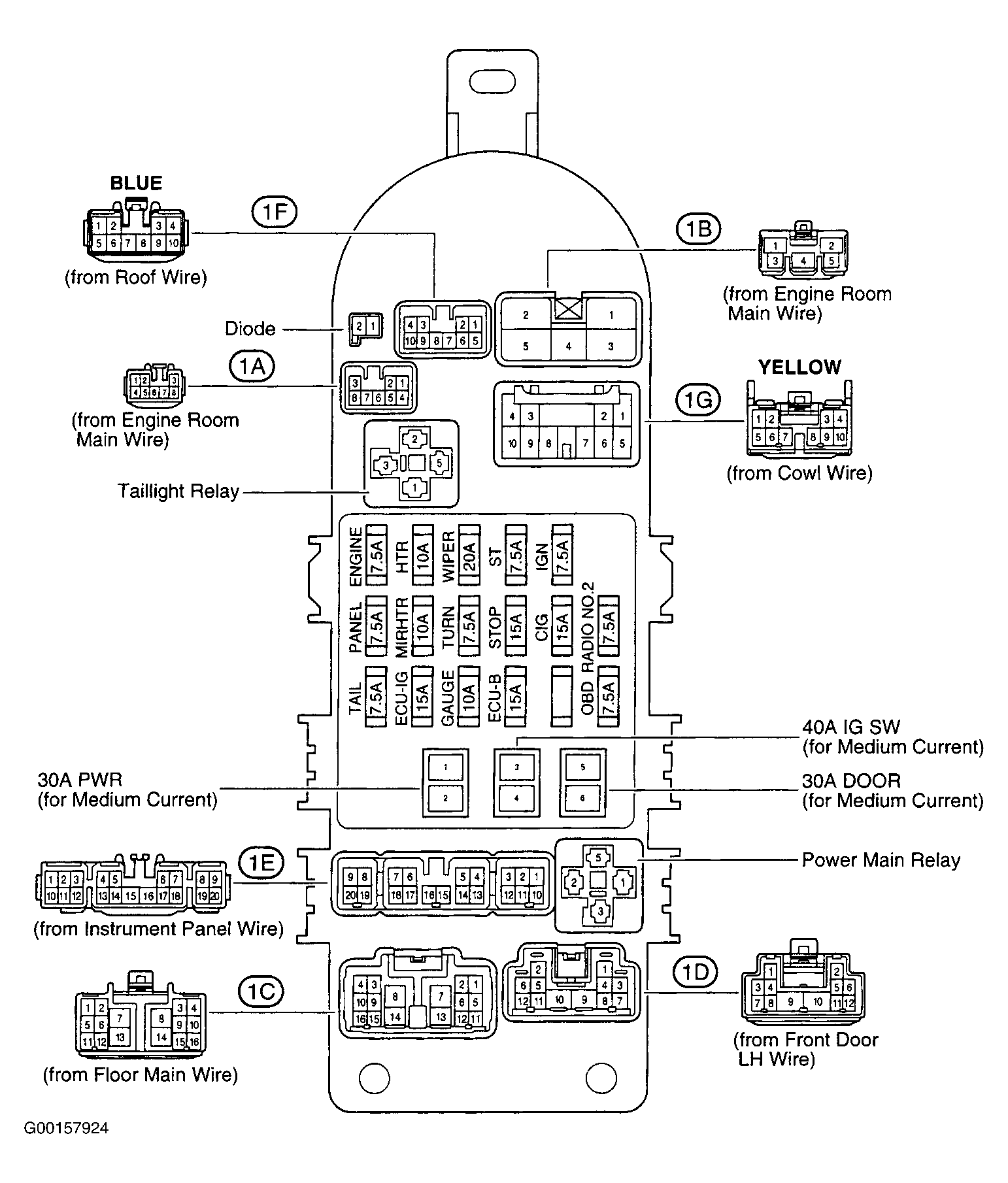

Fig 2: Identifying Junction Block No. 1 Fuses & Relays

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

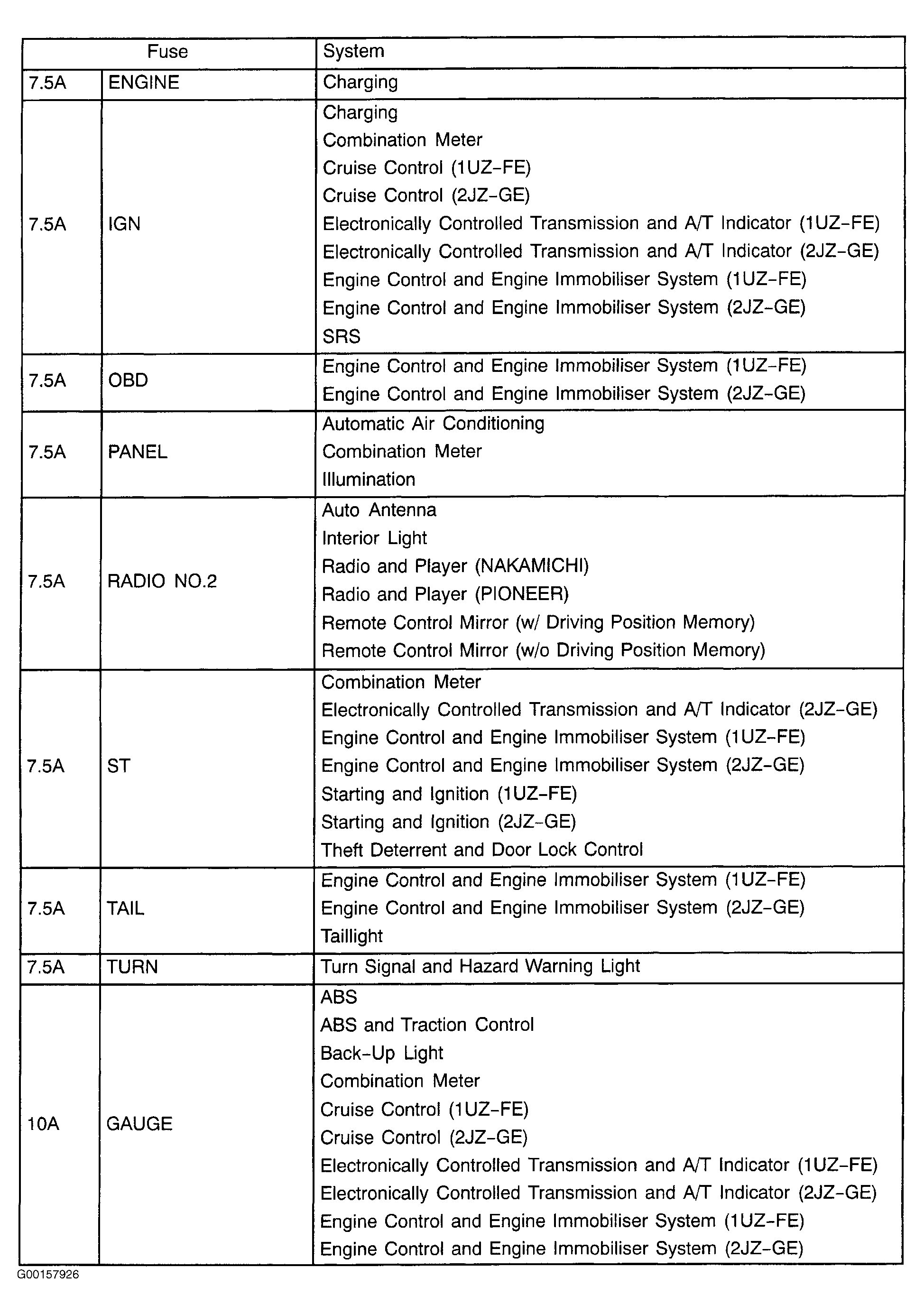

Fig 3: Junction Block No. 1 Legend (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

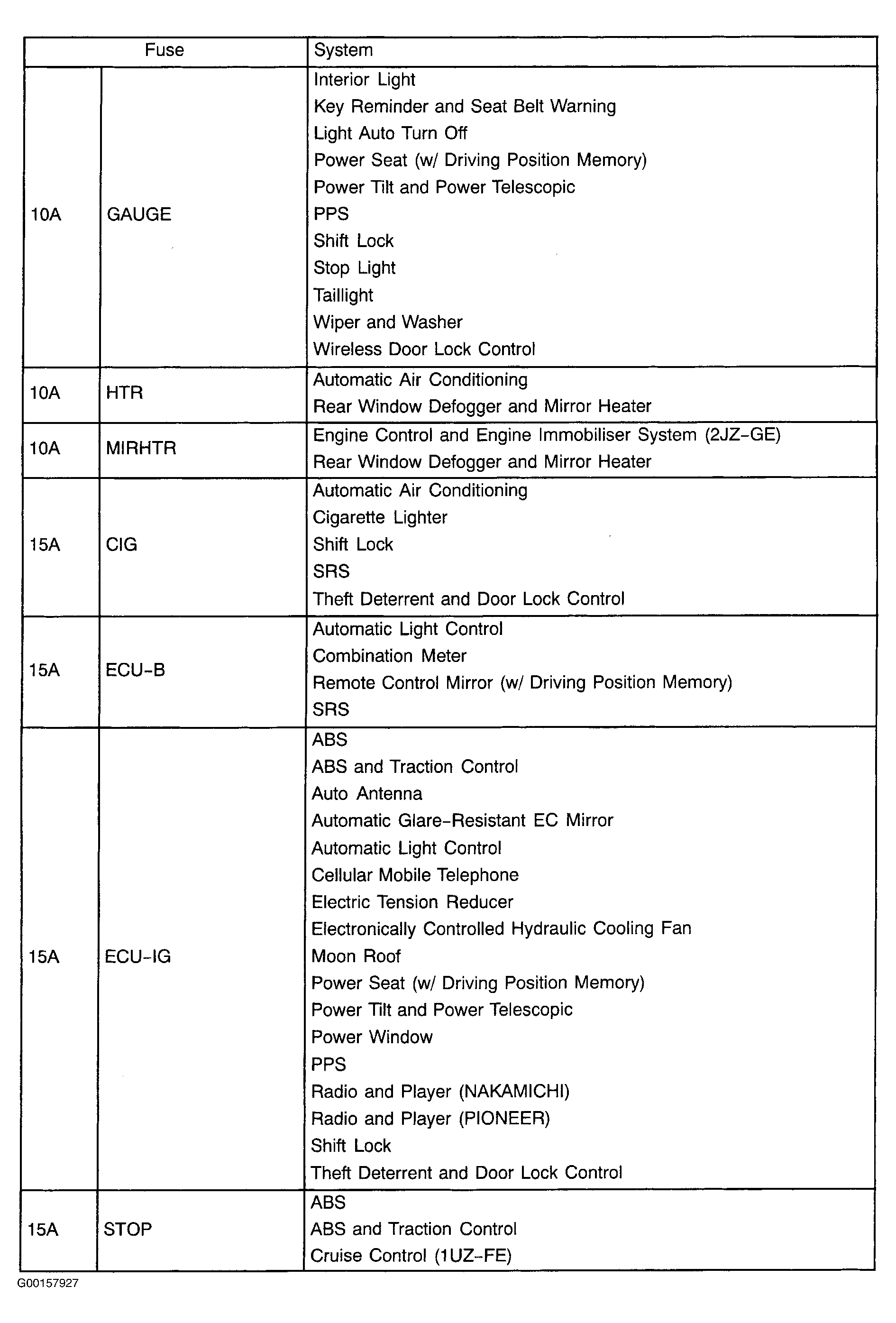

Fig 4: Junction Block No. 1 Legend (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

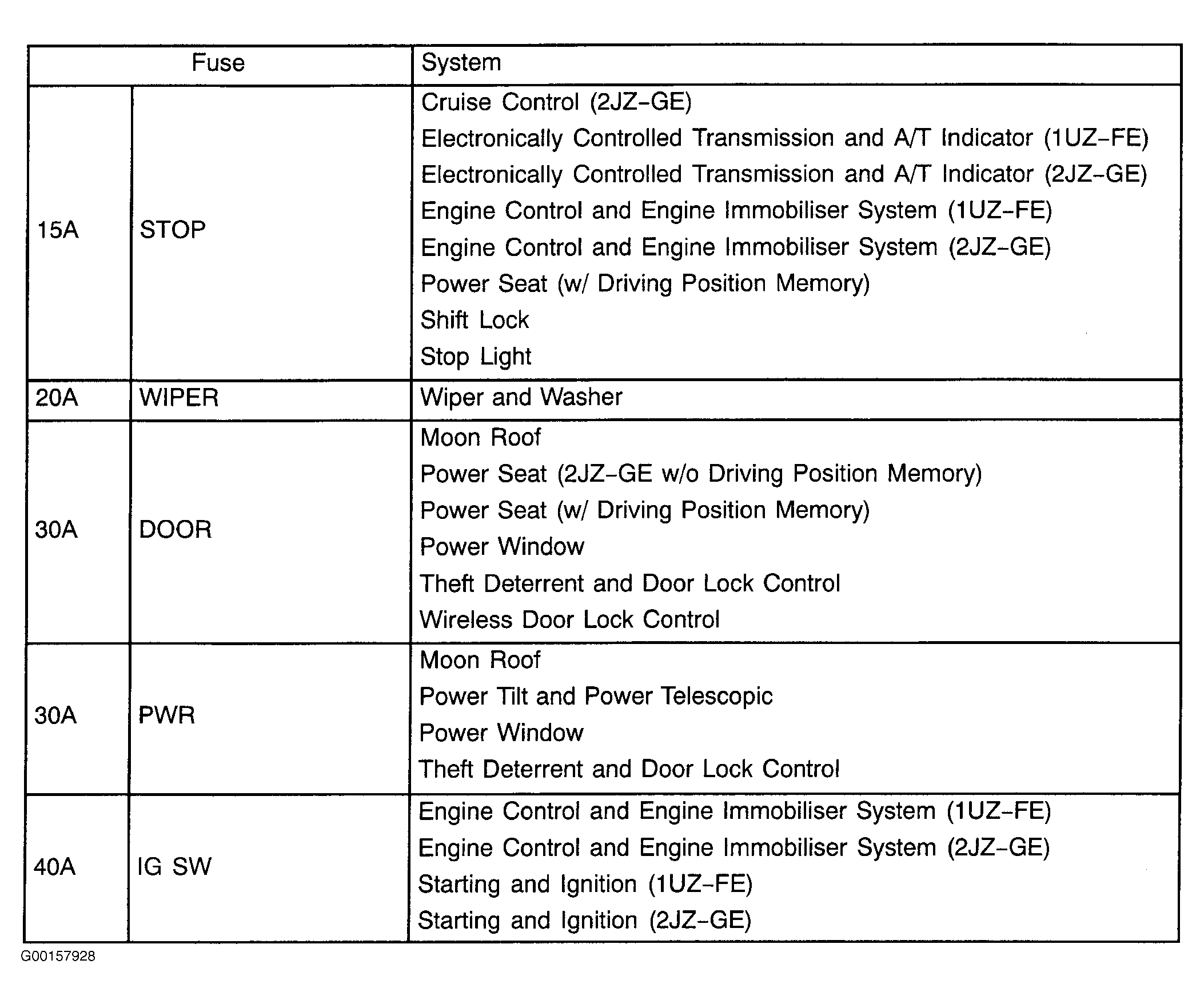

Fig 5: Junction Block No. 1 Legend (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
