Oil Pump: Installation
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2000 Lexus SC 400, 2000 Lexus LS 400, 2000 Lexus GS 400, 1999 Lexus SC 400, and 1999 Lexus LS 400. However, it is still accessible from the selected car via links, so may be relevant.
- Ensure sealing surfaces are clean. Install NEW "O" ring on cylinder block. Apply sealant on oil pump body sealing surface.

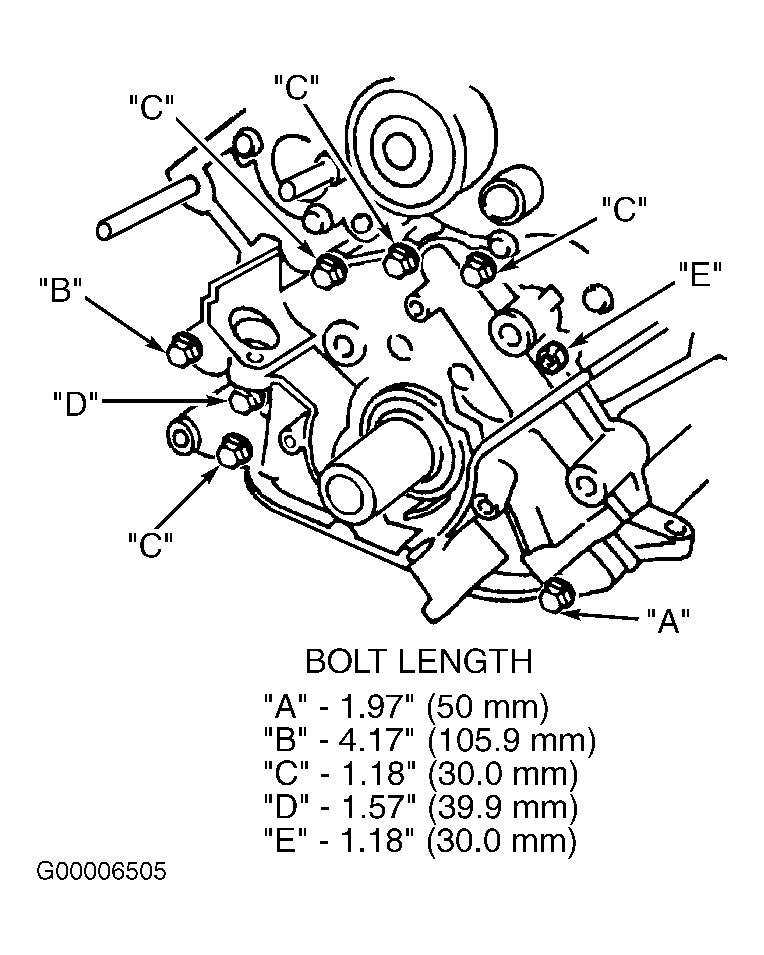

- Install oil pump. Ensure teeth on drive rotor engage with teeth on crankshaft. Install bolts. Ensure proper bolts are installed in specified areas. See Fig 1. Tighten all bolts to specification. See TORQUE SPECIFICATIONS .
- To install remaining components, reverse removal procedure. Ensure proper oil pan installation procedure is used. See OIL PAN under REMOVAL & INSTALLATION. Fill engine with oil.
