Pin Voltage Test

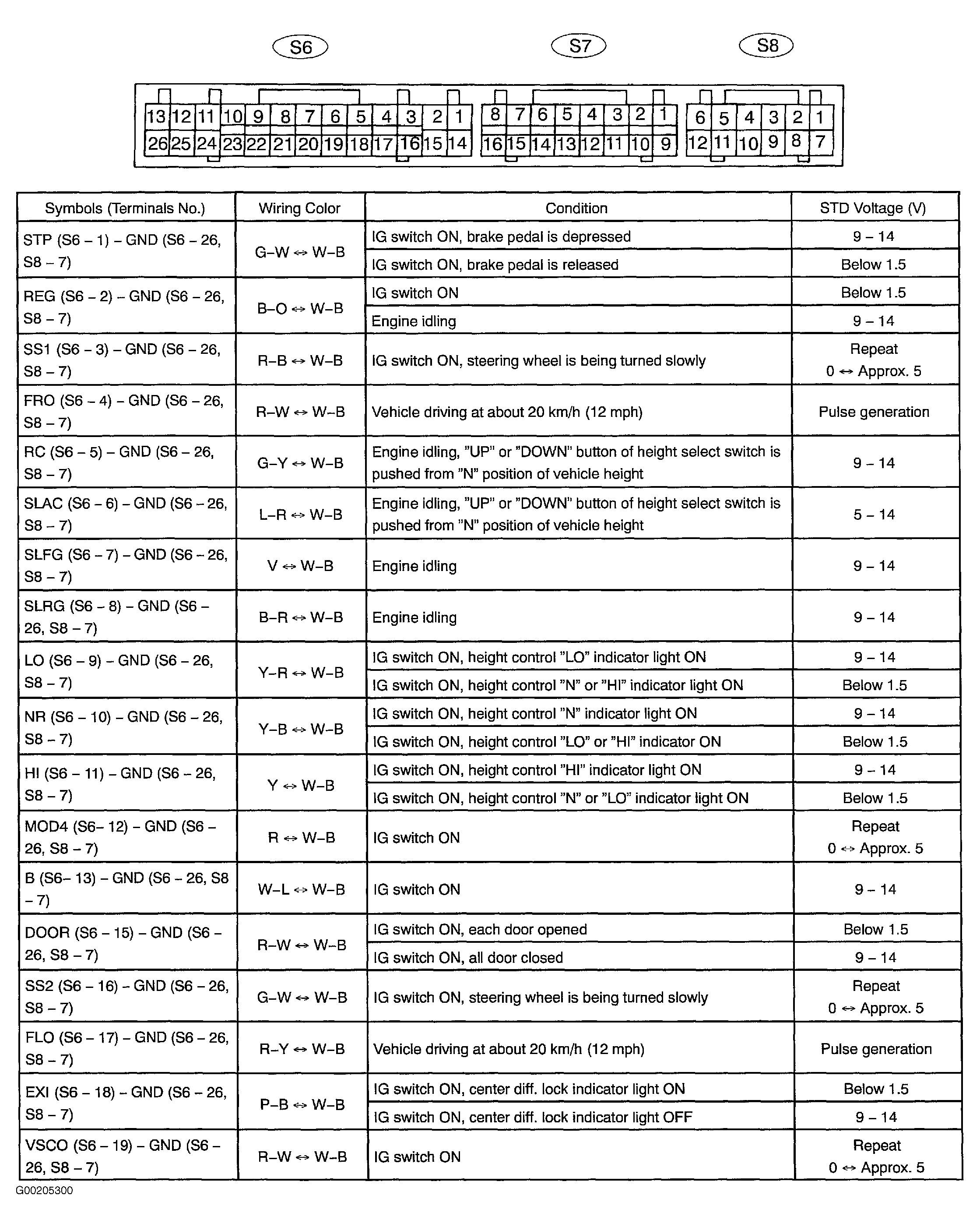

Fig 1: Suspension Control ECU Pin Voltage Chart (1 Of 3)
G00205300Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

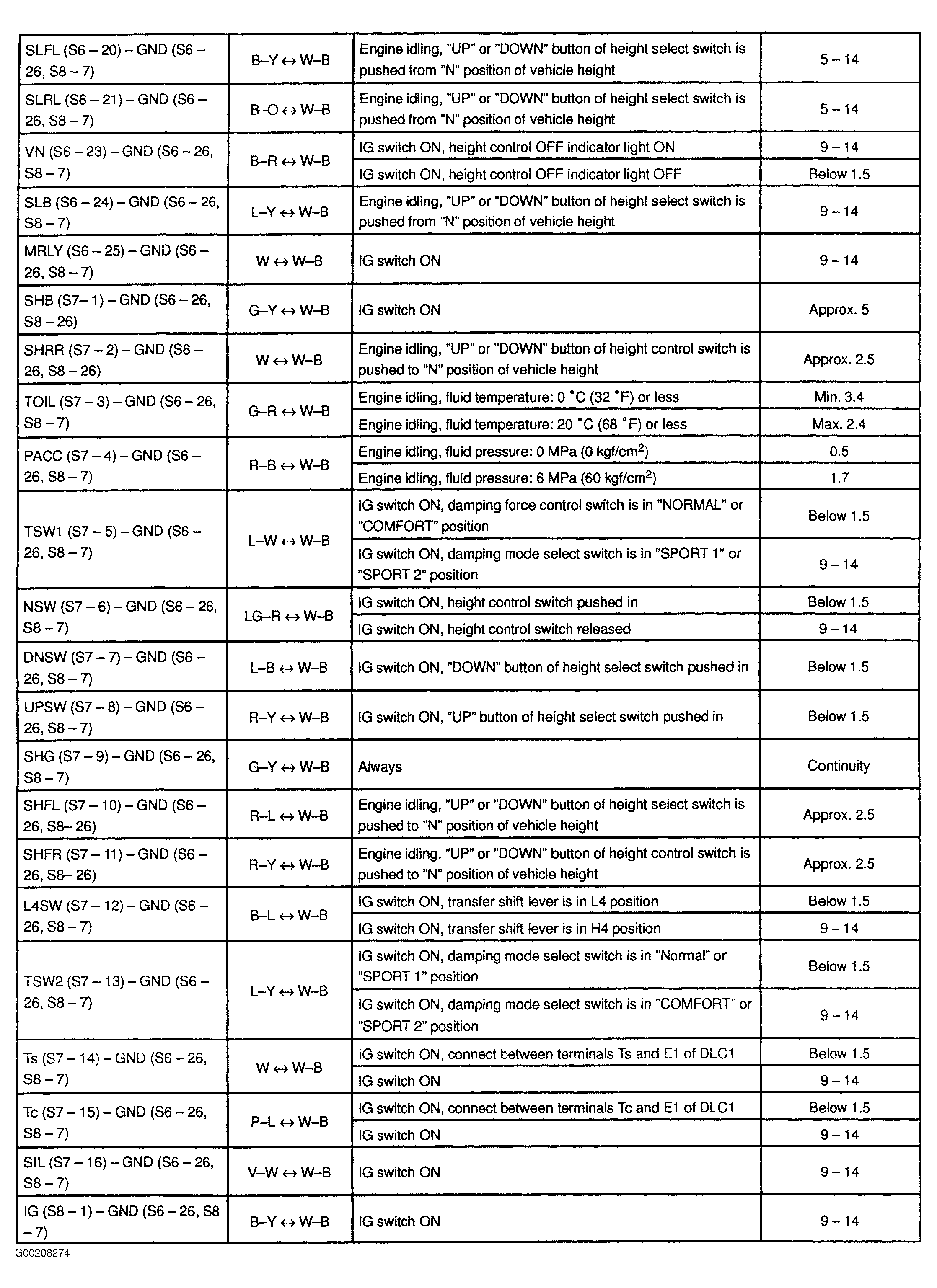

Fig 2: Suspension Control ECU Pin Voltage Chart (2 Of 3)
G00208274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

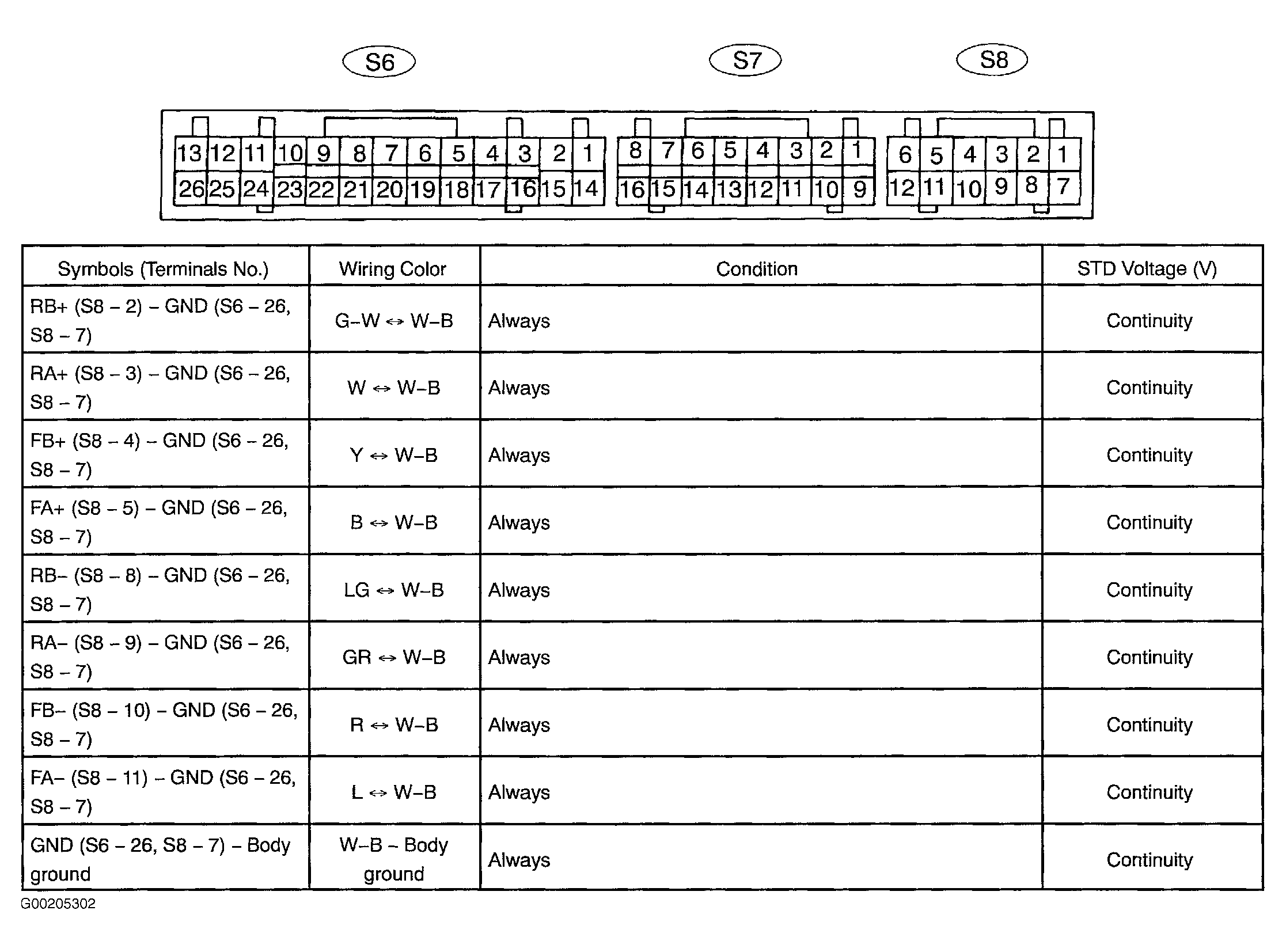

Fig 3: Suspension Control ECU Pin Voltage Chart (3 Of 3)
G00205302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
