Power Rack & Pinion: Troubleshooting

Use the power steering troubleshooting chart to help find the cause of the problem. See Fig 1. The numbers indicate the priority of the likely cause of the problem. Check each part in the order shown. If necessary, repair or replace these parts.

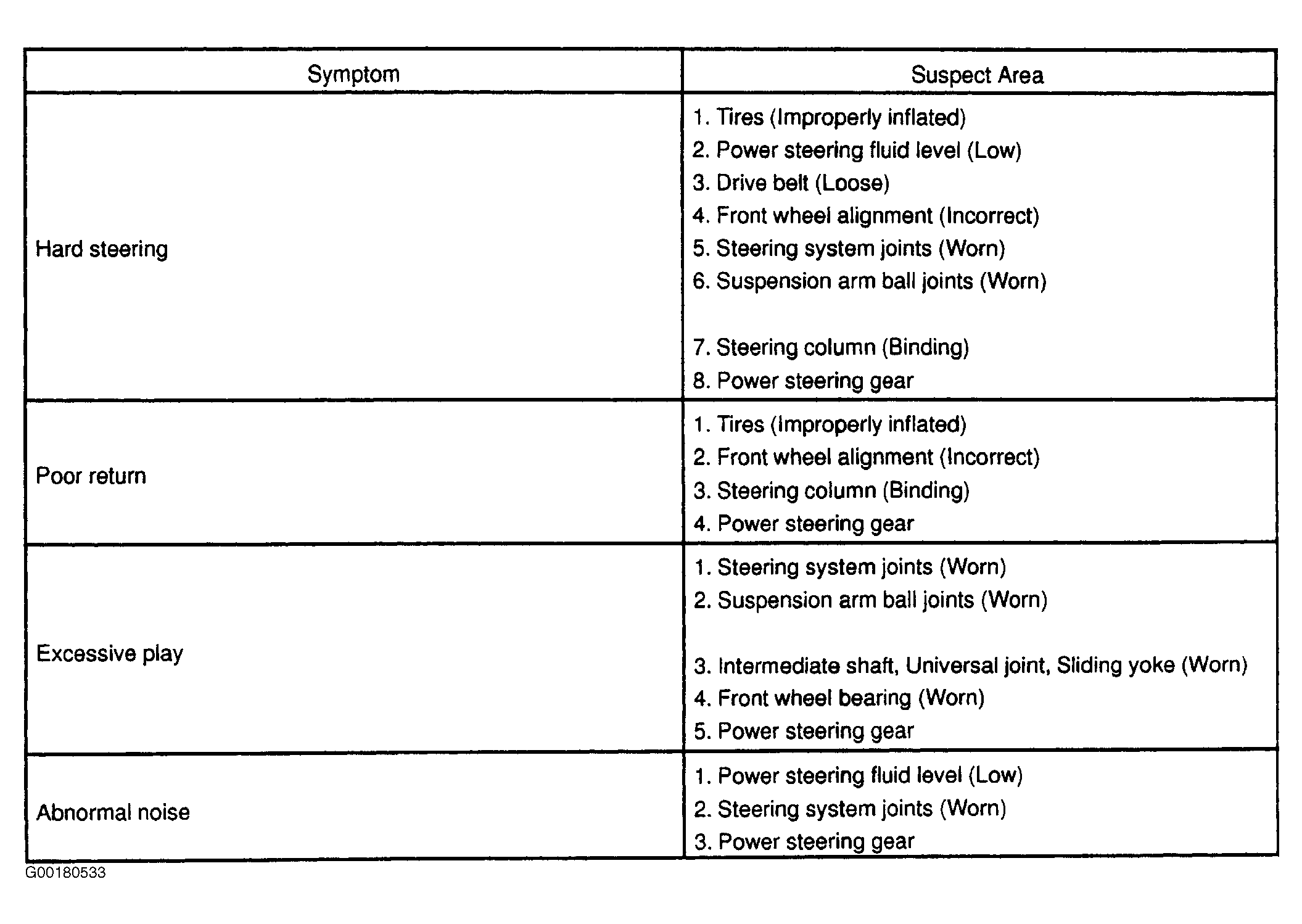

Fig 1: Power Steering Troubleshooting Chart
G00180533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
