Component Locations

WARNING: Vehicles are equipped with air bag supplemental restraint system. Before attempting ANY repairs involving steering column, instrument panel or related components, see SERVICE PRECAUTIONS and DISABLING & ACTIVATING AIR BAG SYSTEM in appropriate AIR BAG RESTRAINT SYSTEMS article. For 1998, see AIR BAG RESTRAINT SYSTEM . For 1999, see AIR BAG RESTRAINT SYSTEM . For 2000, see AIR BAG RESTRAINT SYSTEMS .

For component locations, see Fig 1-Fig 5 .

Fig 1: Locating Power Steering Gear Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

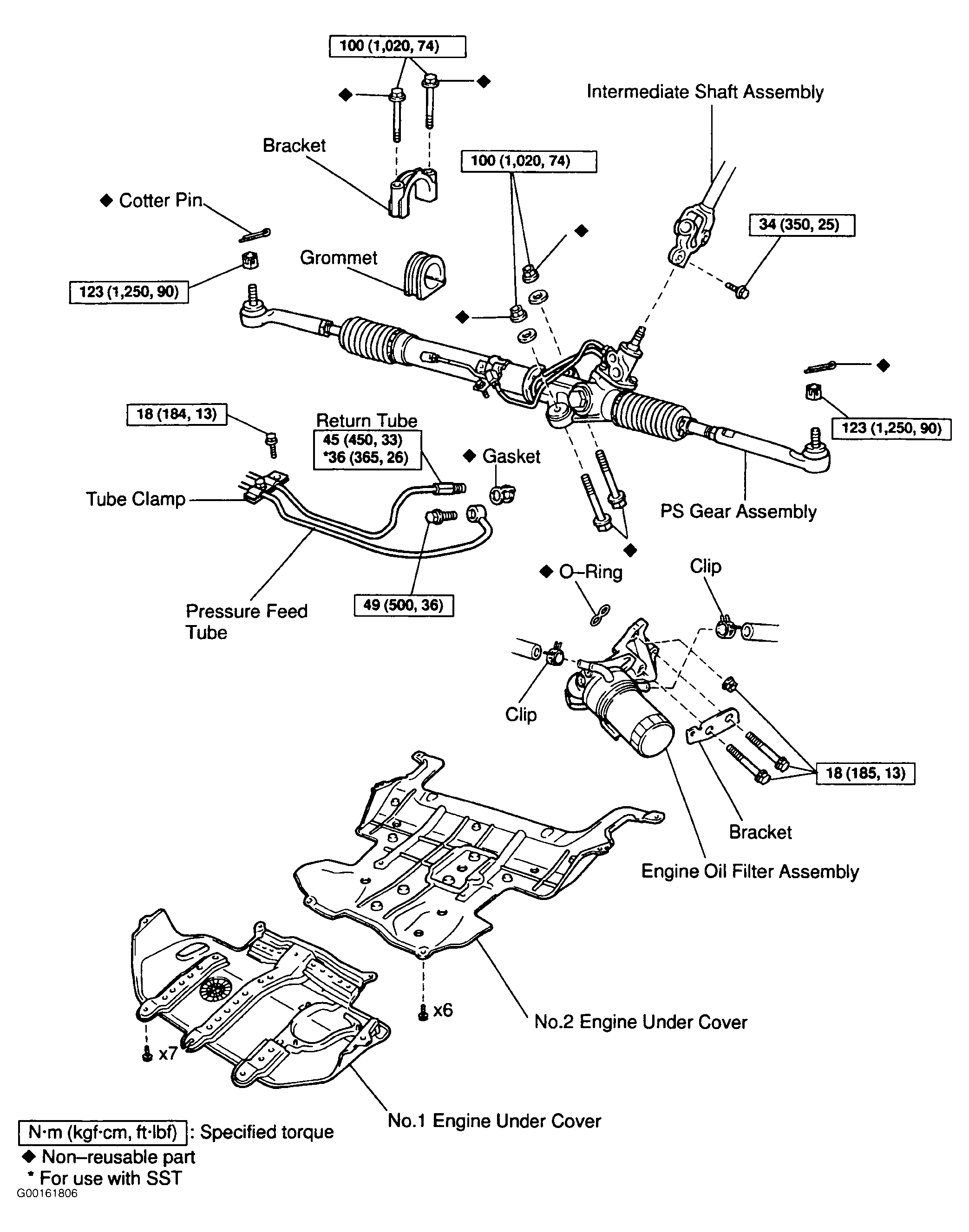

Fig 2: Exploded View Of Power Steering Gear Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

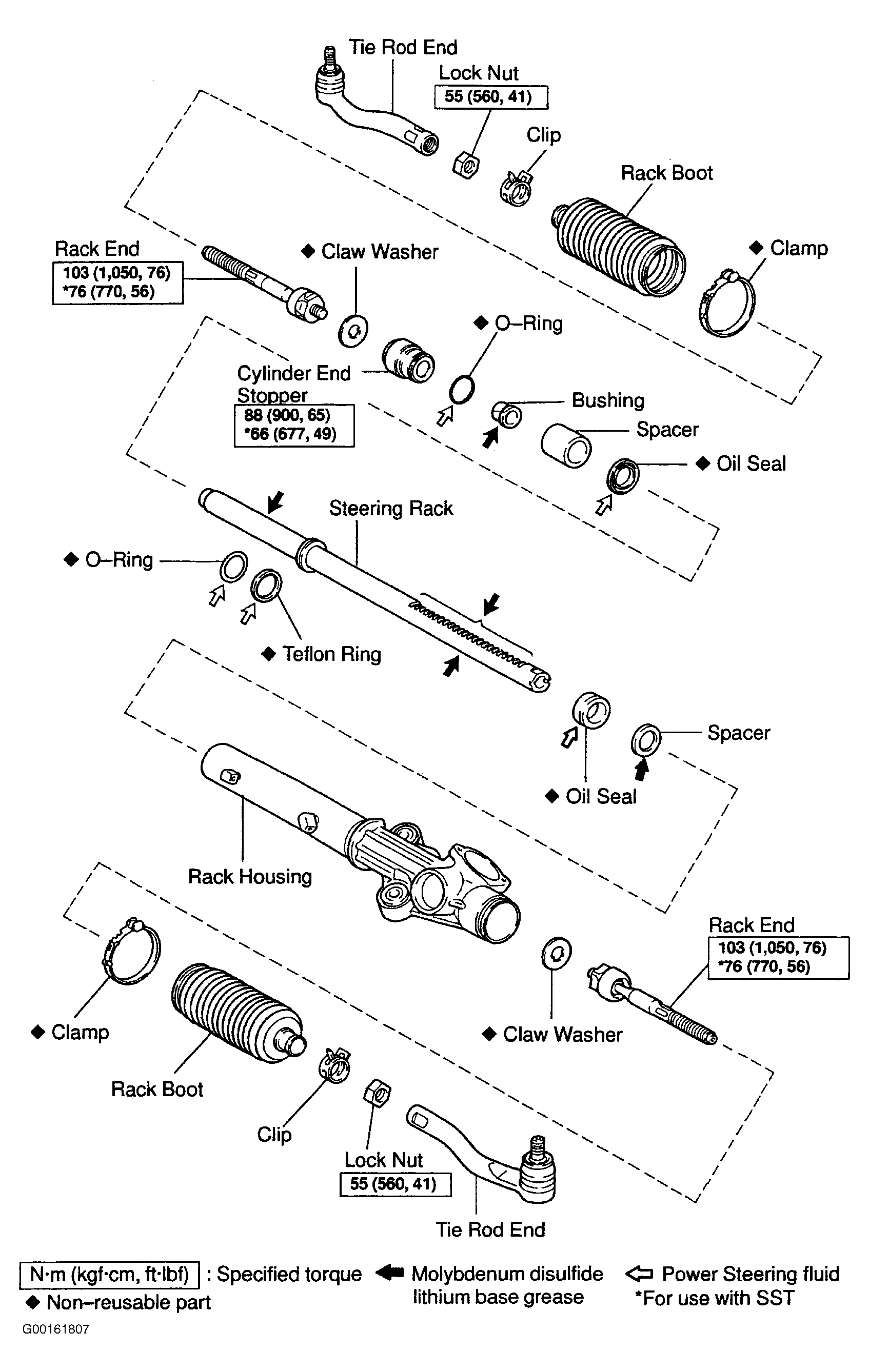

Fig 3: Exploded View Of Power Steering Gear Components (2 Of 2)

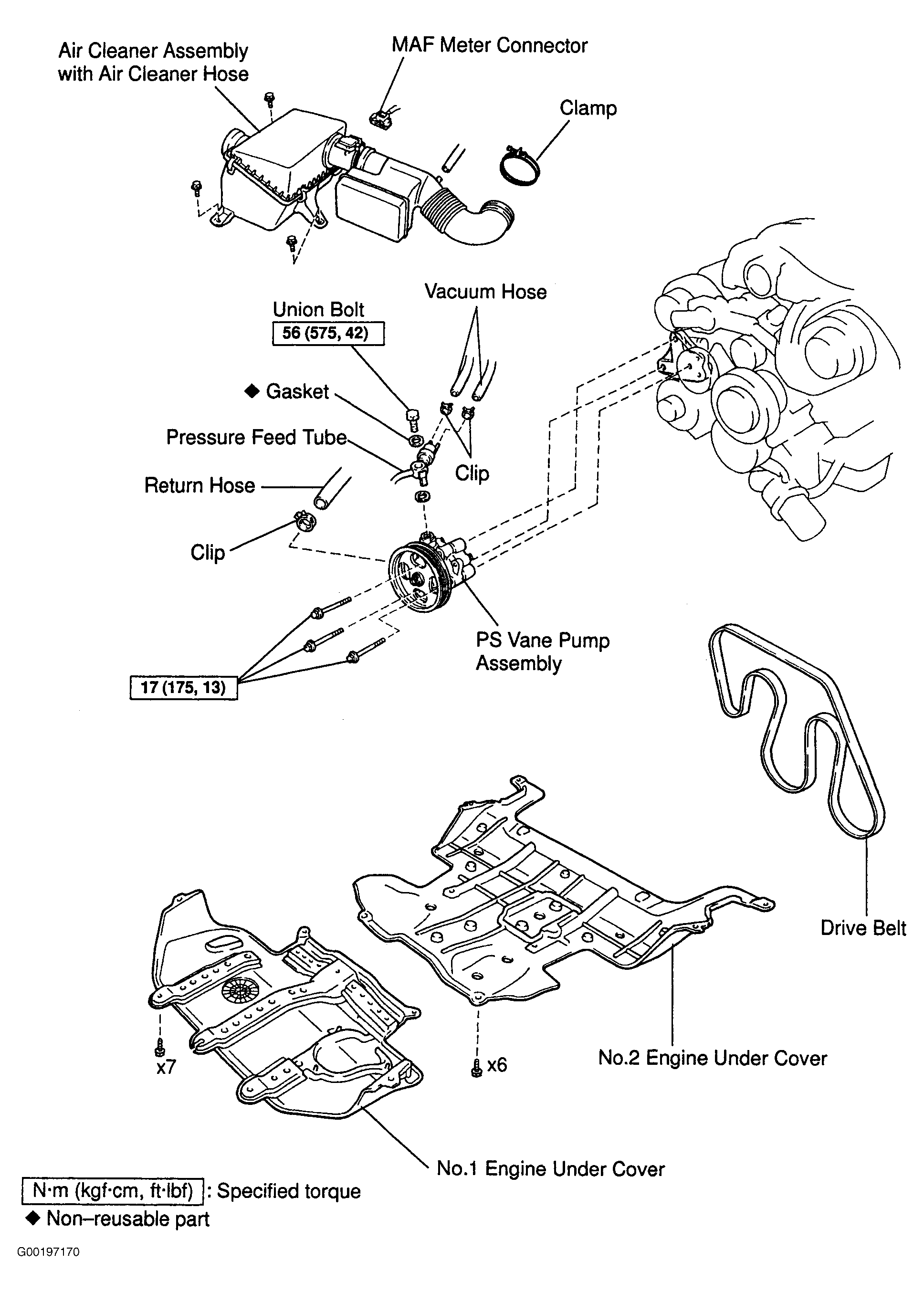

Fig 4: Locating Power Steering Pump

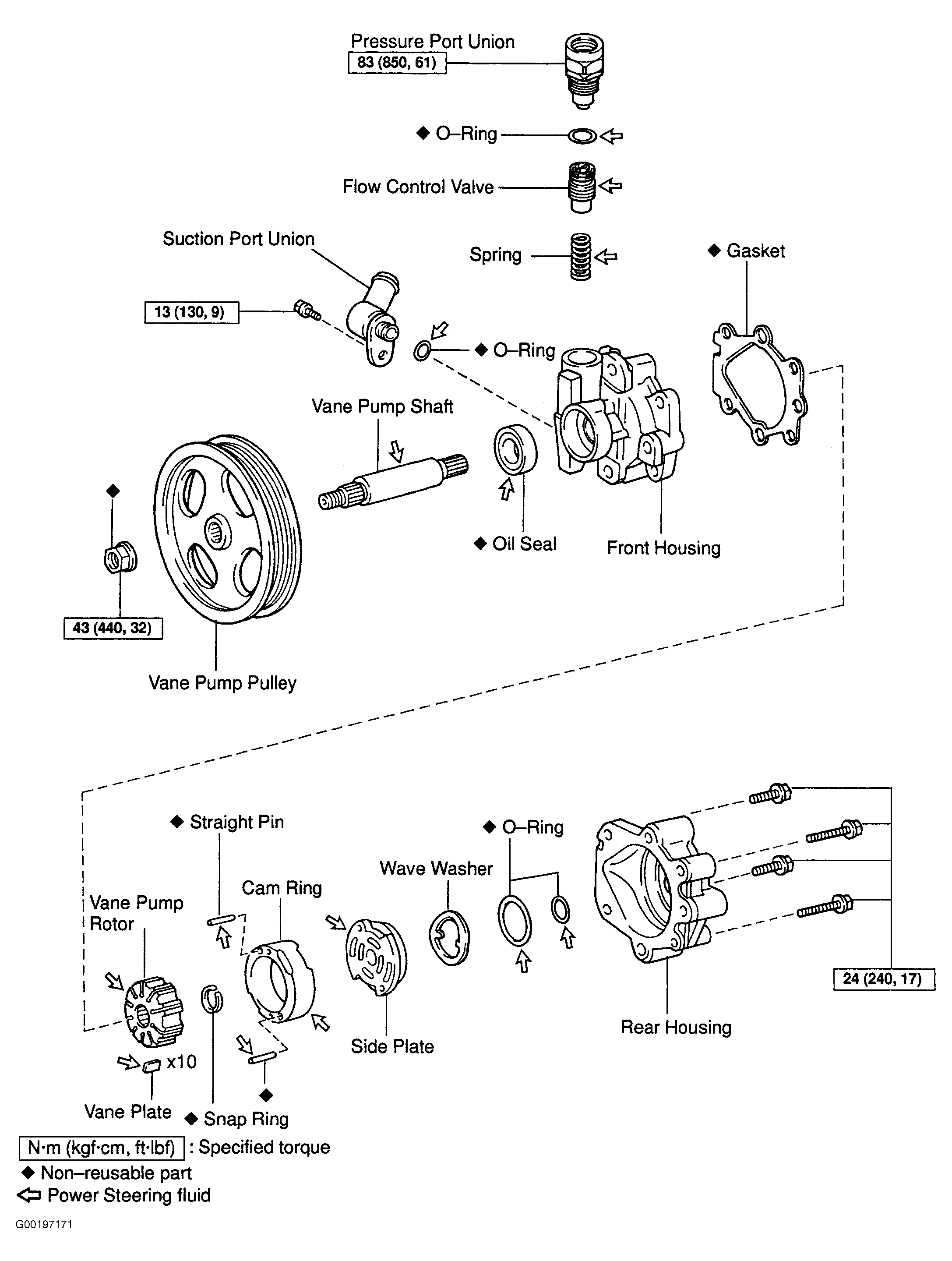

Fig 5: Exploded View Of Power Steering Pump
