Cooling System (Mechanical): Thermostat: Components

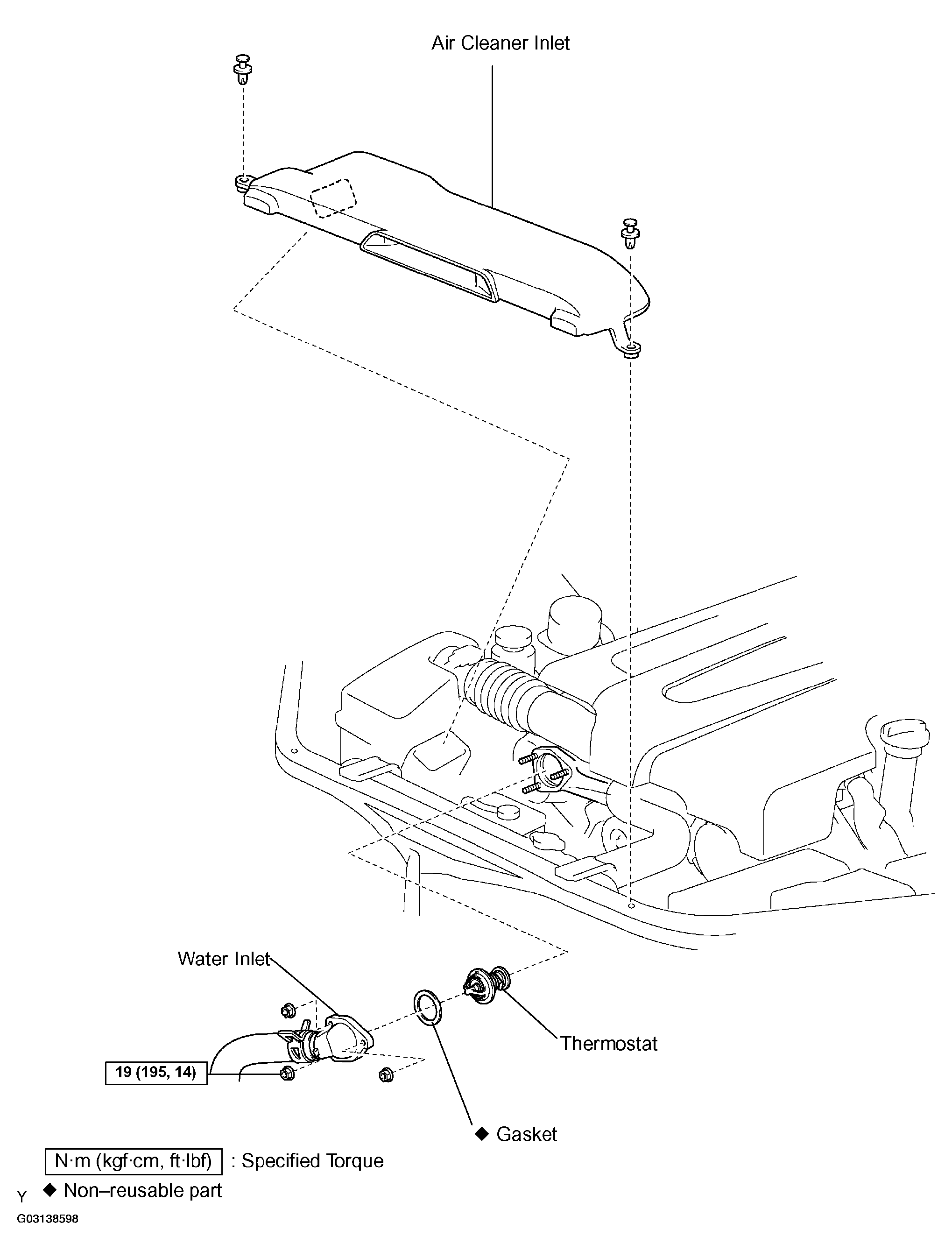

Fig 1: Identifying Components For Thermostat Removal

G03138598

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
