Fusible Link Block
Fusible Link Block
Fusible link block is located on left inner panel, near engine room junction block. See
Figure
.

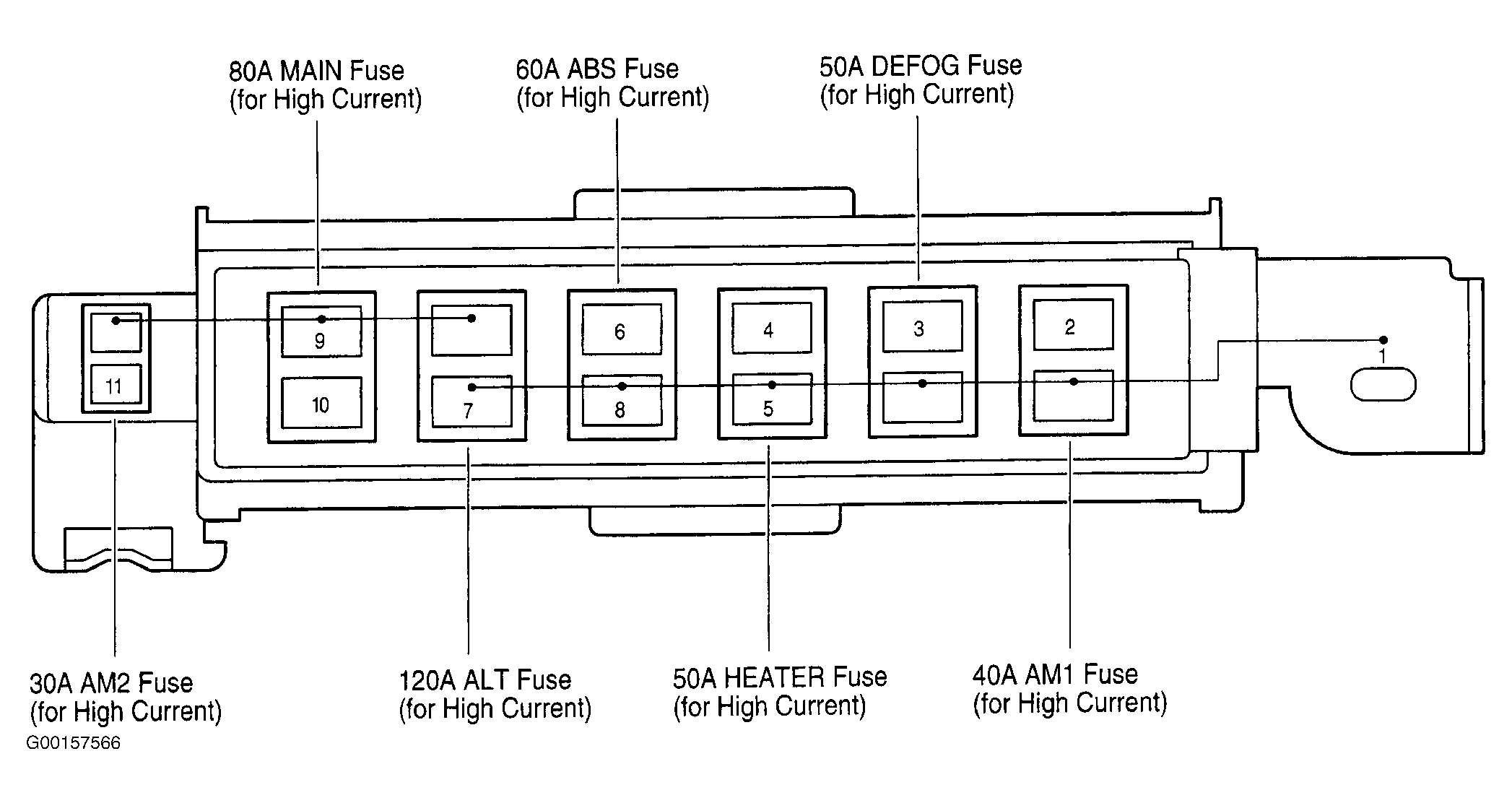

Fig 1: Identifying Fusible Link Block Fuses
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

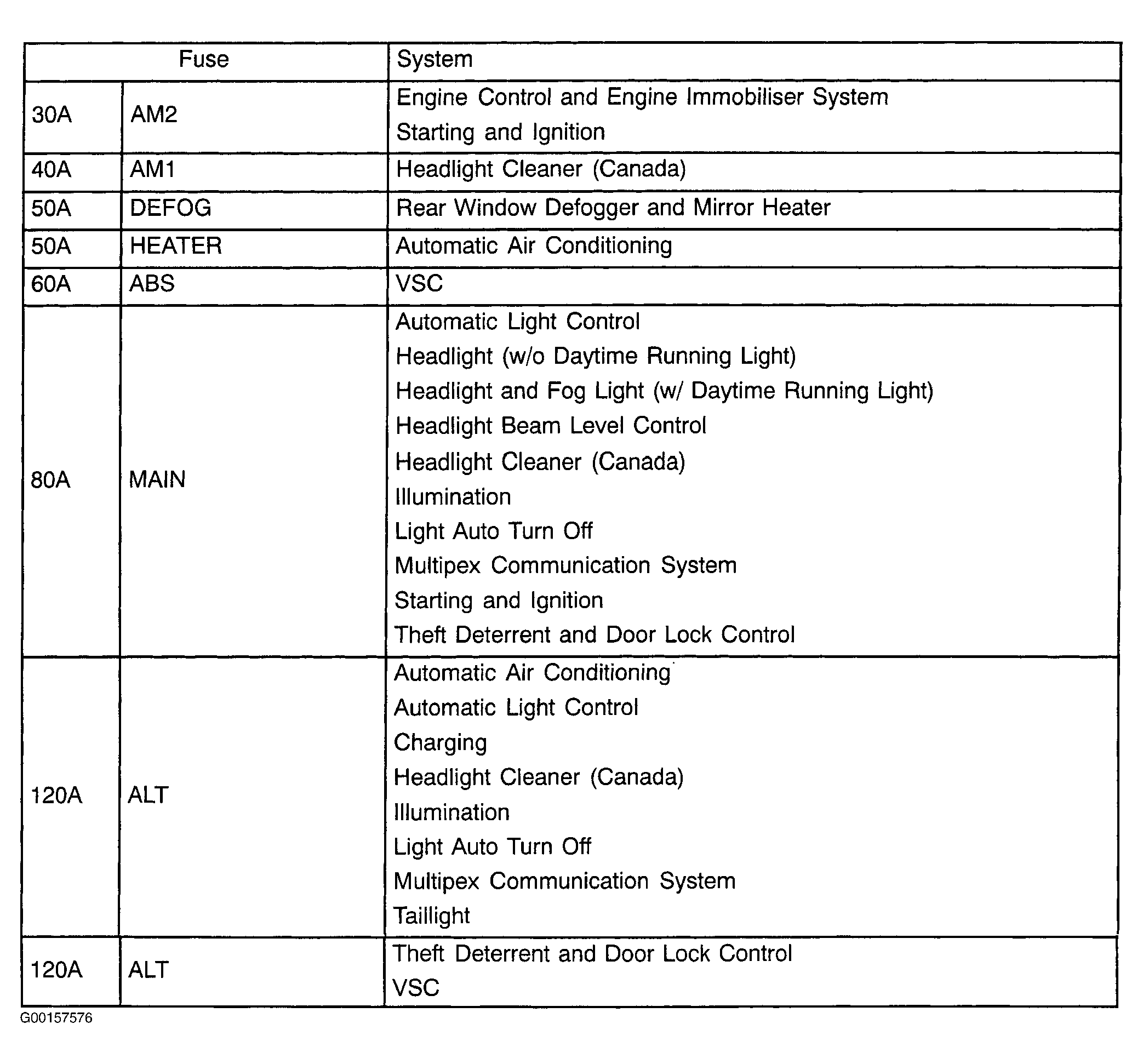

Fig 2: Fusible Link Block Legend
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
