Combination Switch: Installation
WARNING:
During installation, if spiral cable mating mark is not properly aligned, steering wheel may not turn completely, or flat cable inside spiral cable may be severed, disabling SRS.

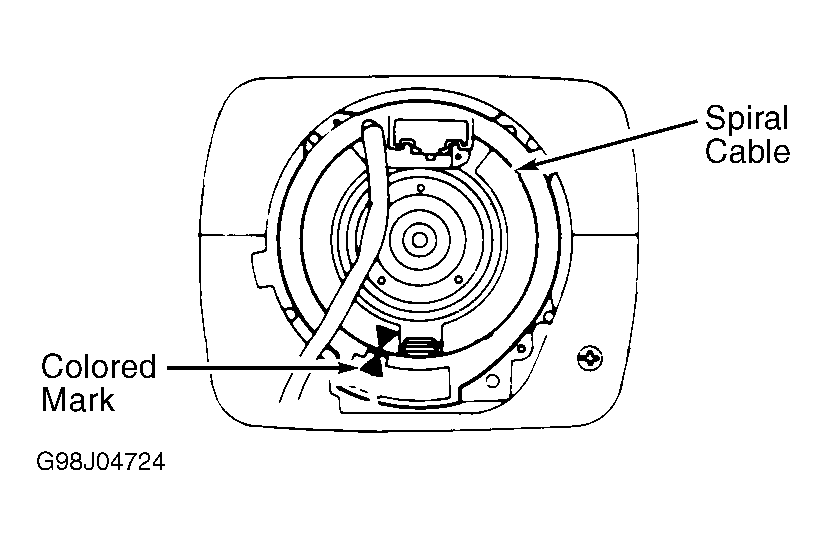

Ensure front wheels are in straight-ahead position. Install combination switch. Turn spiral cable counterclockwise until it stops. Turn spiral cable clockwise about 3 turns until colored mating mark is aligned. See Fig 1. To complete installation, reverse removal procedure.
