Removal & Installation : SC400: Installation

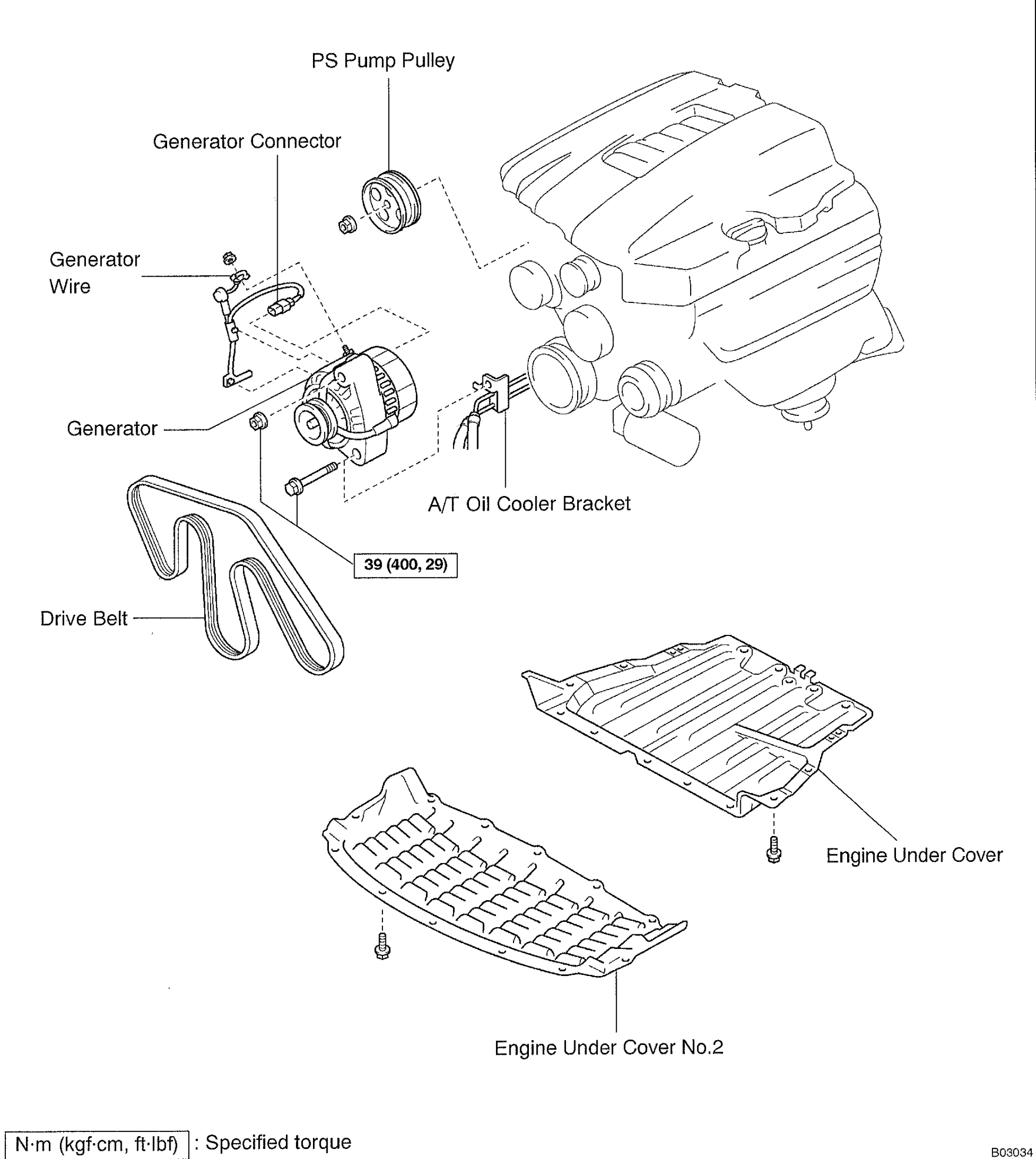

  1. Install generator. Install the generator and transmission oil cooler bracket with the bolt and nut. Torque: 39 N*m (400 kgf-cm, 29 ft-Ibf)
  2. Connect the generator connector. Connect the generator wire with the nut and rubber cap.
  3. Install power steering vane pump pulley (if removed).
  4. Install drive belt. Install the drive belt by turning the drive belt tensioner counterclockwise. See Figure
    NOTE: The pulley bolt for the belt tensioner has a lefthand thread.
  5. Connect negative (-) terminal cable to battery.
  6. Perform on-vehicle inspection. SeeON-VEHICLE TESTING  .
  7. Install engine undercover

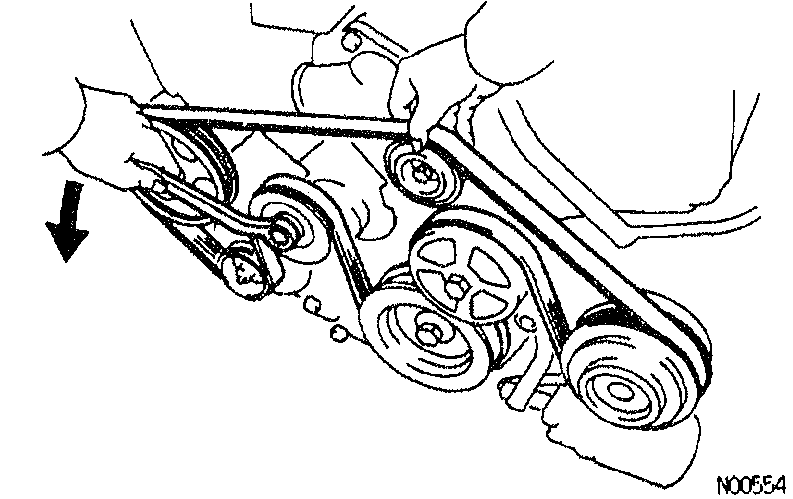

    Fig 1: Removing/Installing Drive Belt
    G00498794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
