Engine Compartment Fuses

Engine Room Junction Block (J/B), Engine Room Relay Block (R/B) and Fusible Link Block are located on left inner panel, in engine compartment. Engine Room No. 2 Relay Block (R/B) is located near the left headlight. Engine Room No. 3 R/B is located near the right headlight. See Fig 1.

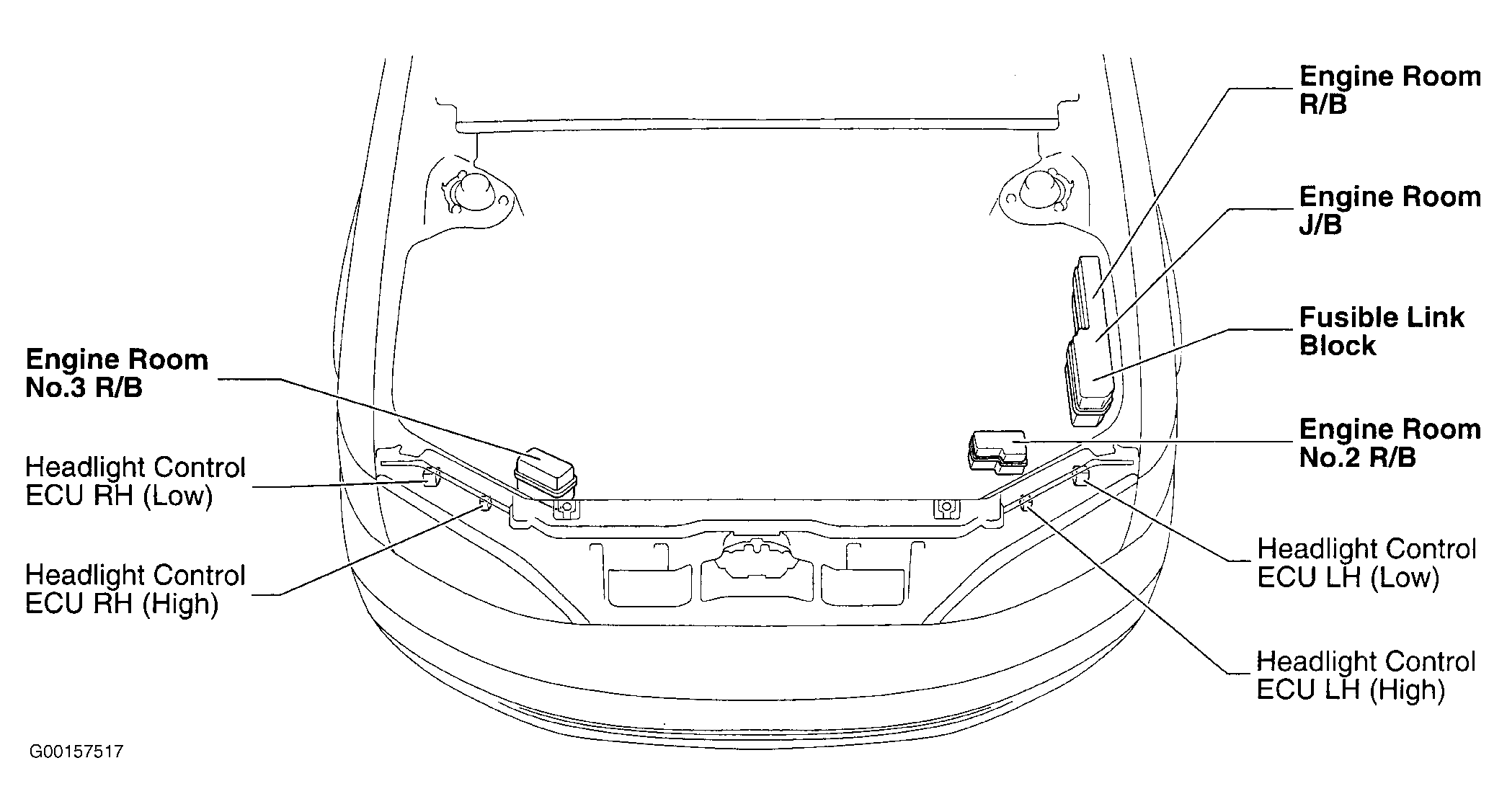

Fig 1: Locating Engine Compartment Electrical Components

G00157517

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

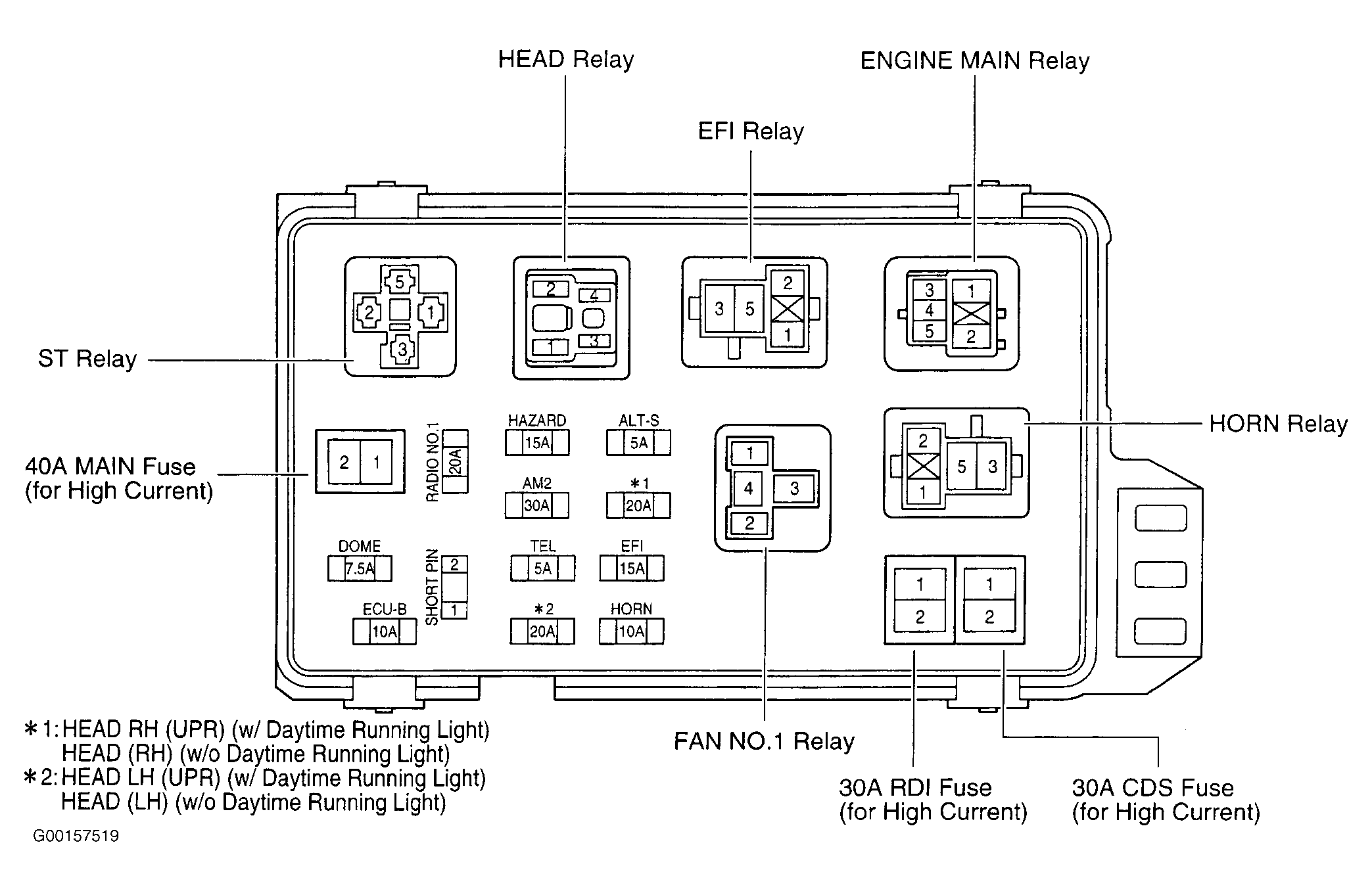

Fig 2: Identifying Engine Room Junction Block Fuses & Relays

G00157519

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

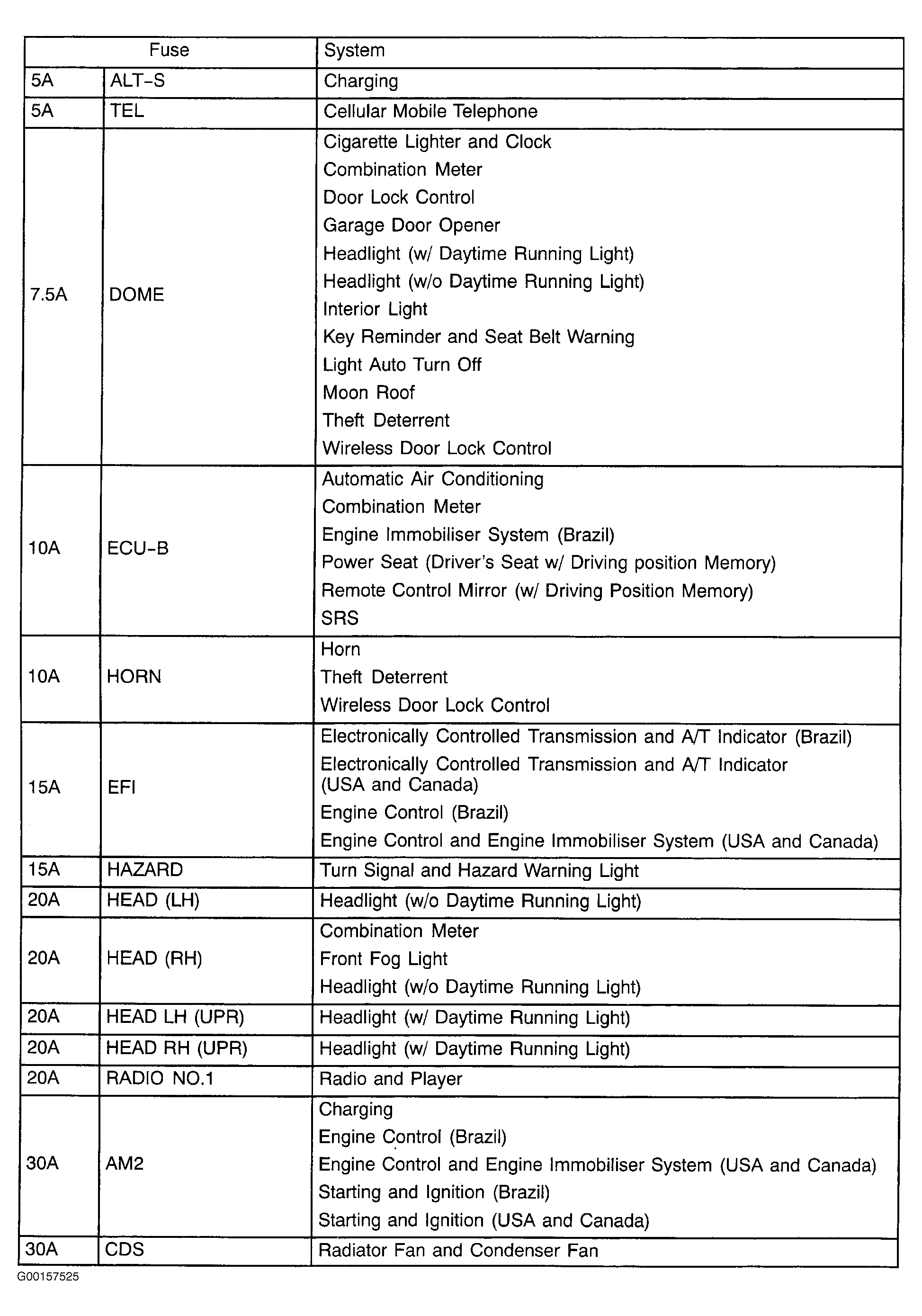

Fig 3: Engine Room Junction Block Legend (1 Of 2)

G00157525

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

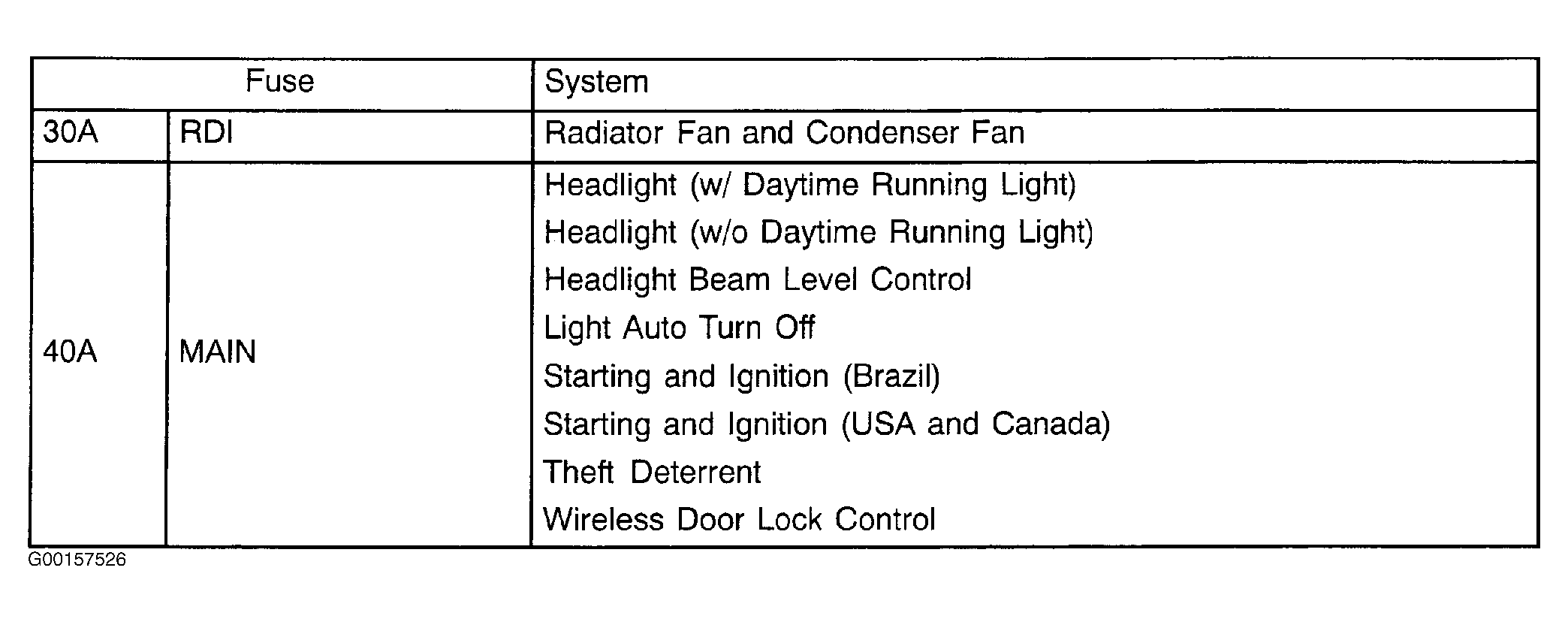

Fig 4: Engine Room Junction Block Legend (2 Of 2)

G00157526

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

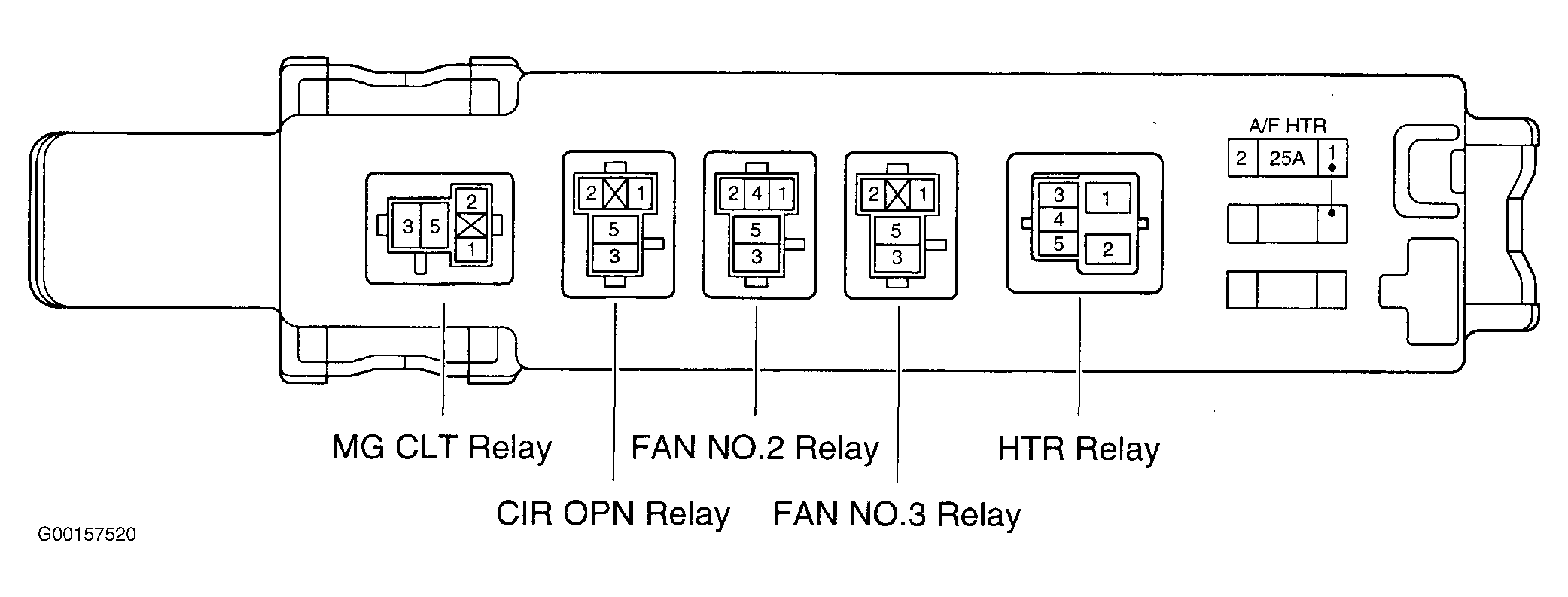

Fig 5: Identifying Engine Room Relay Block Relays

G00157520

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Engine Room Relay Block Legend

G00157527

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

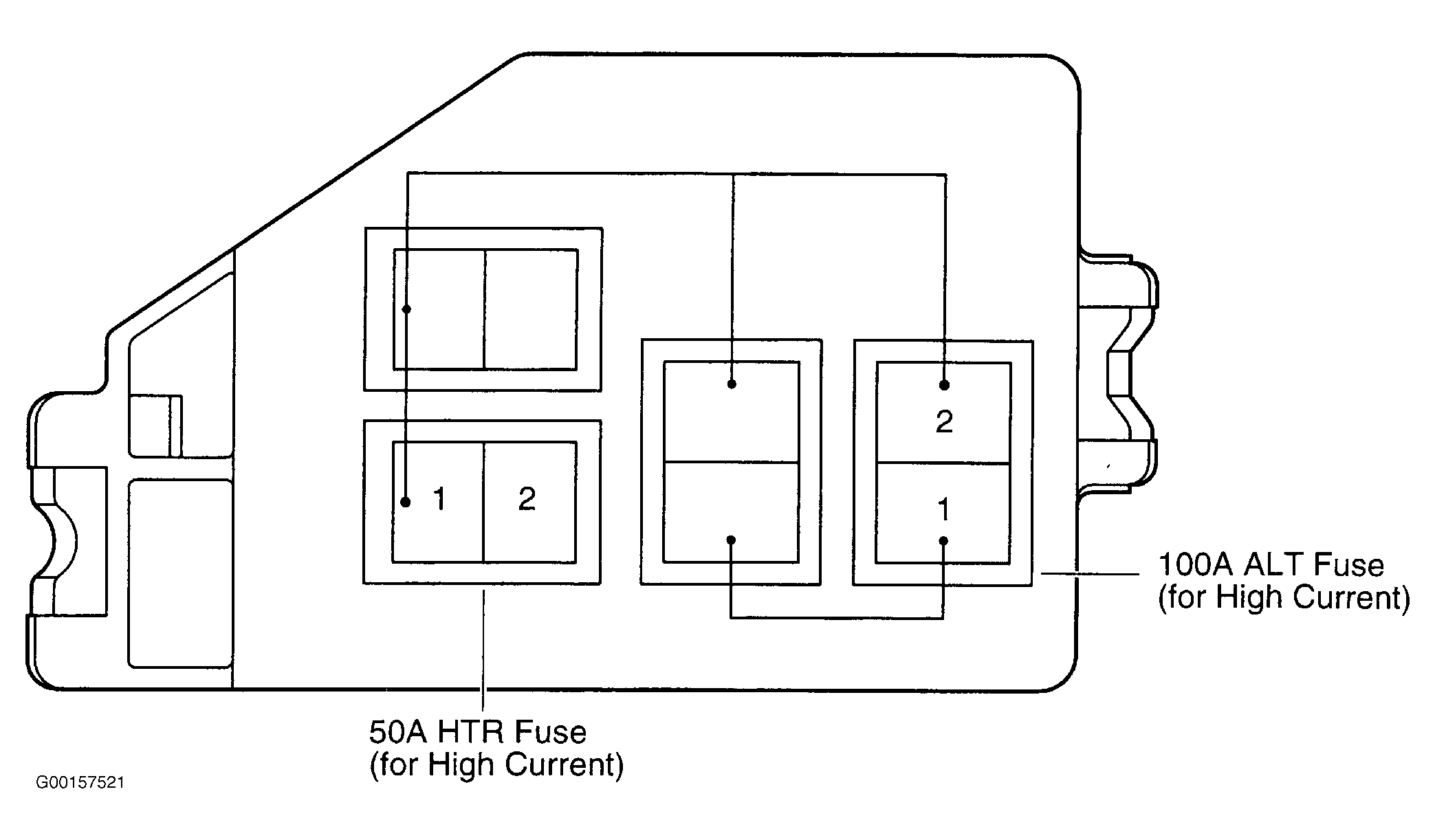

Fig 7: Identifying Fusible Link Block Fuses

G00157521

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

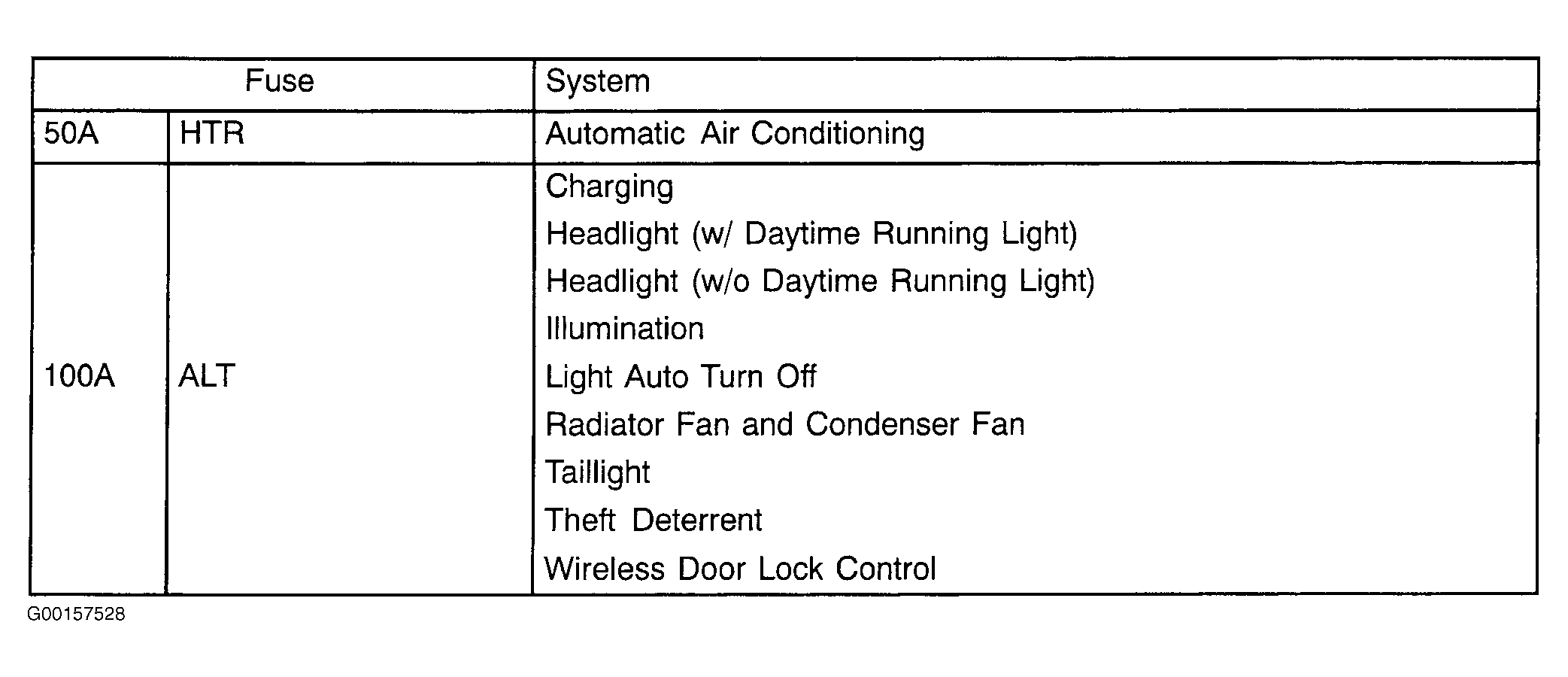

Fig 8: Fusible Link Block Legend

G00157528

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

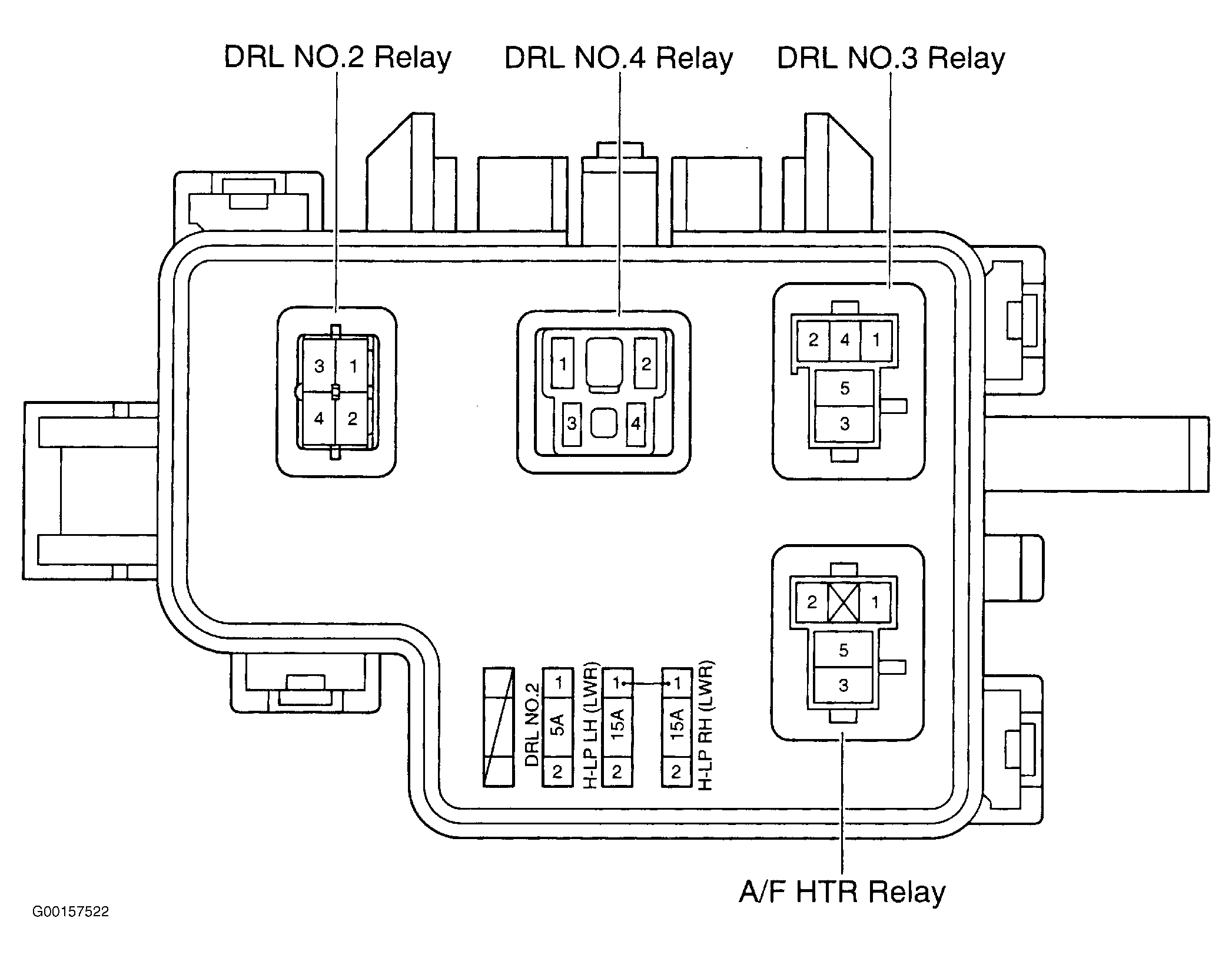

Fig 9: Identifying Engine Room No. 2 Relay Block Relays

G00157522

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

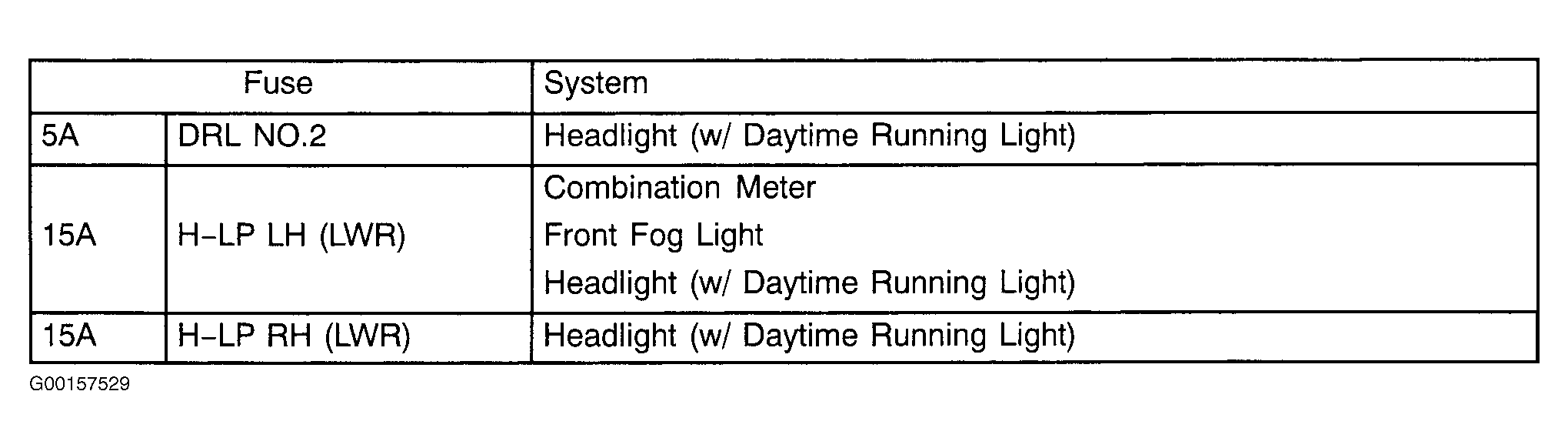

Fig 10: Engine Room No. 2 Relay Block Legend

G00157529

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

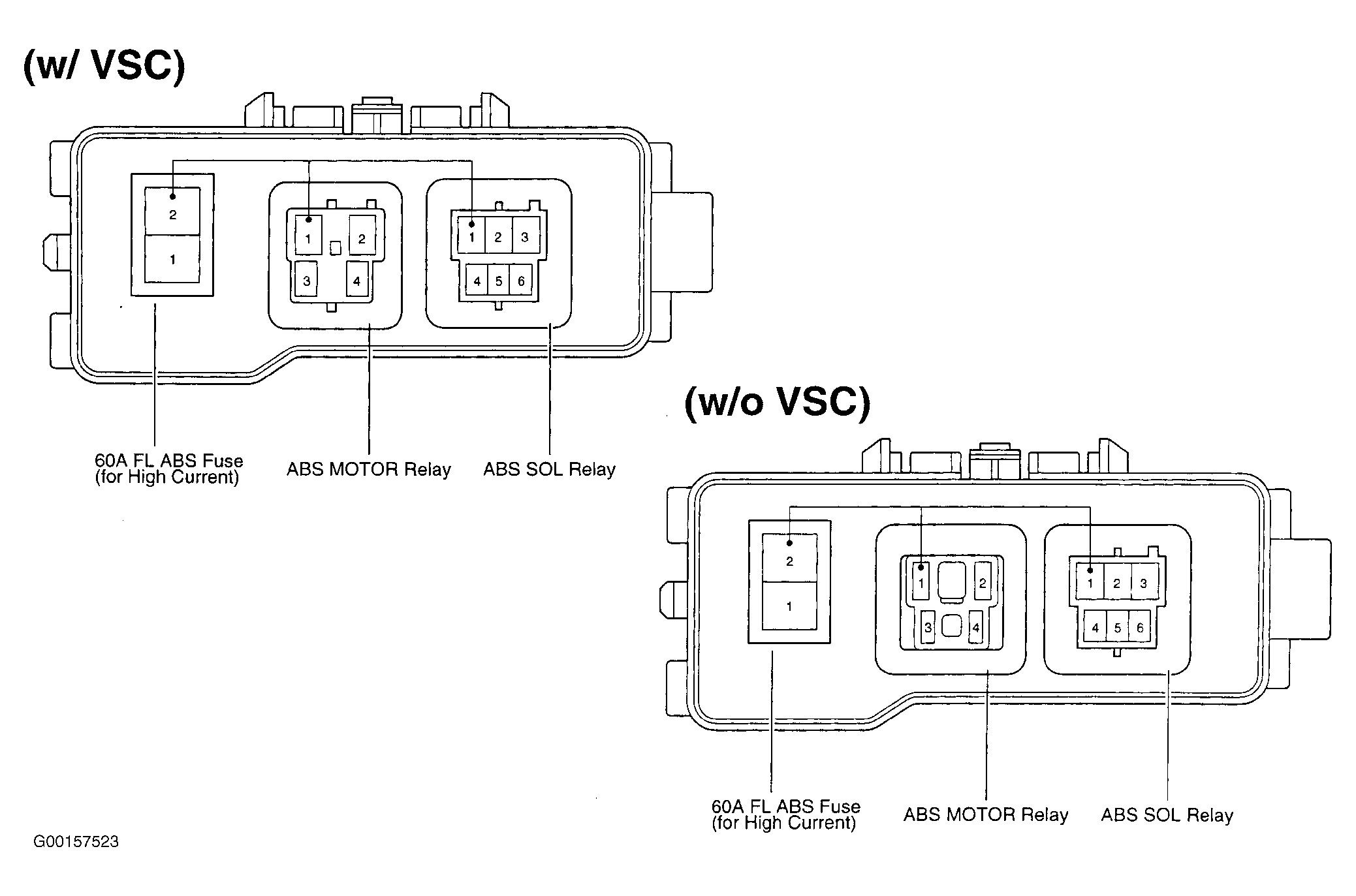

Fig 11: Identifying Engine Room No. 3 Relay Block Relays

G00157523

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Engine Room No. 3 Relay Block Legend

G00157530

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
