Diagnostic Trouble Code P0446 (EG002-99)

Publication date: 1999-04-02
Reference number: EG002-99

DIAGNOSTIC TROUBLE CODE P0446

DIAGNOSTIC TROUBLE CODE P0446

TECHNICAL SERVICE BULLETIN

Reference Number(s): EG002-99, Date of Issue:  April 2, 1999
LEXUS: 1999 ES 300
GROUP: Engine
COPYRIGHT: © 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002

DESCRIPTION

DIAGNOSTIC TROUBLE CODE P0446

Under certain driving conditions, some 1999 Model Year ES 300s will exhibit a false M.I.L. "ON" DTC P0446. A Vacuum Control Valve Assembly has been developed to prevent this condition.

BULLETIN CONTENT

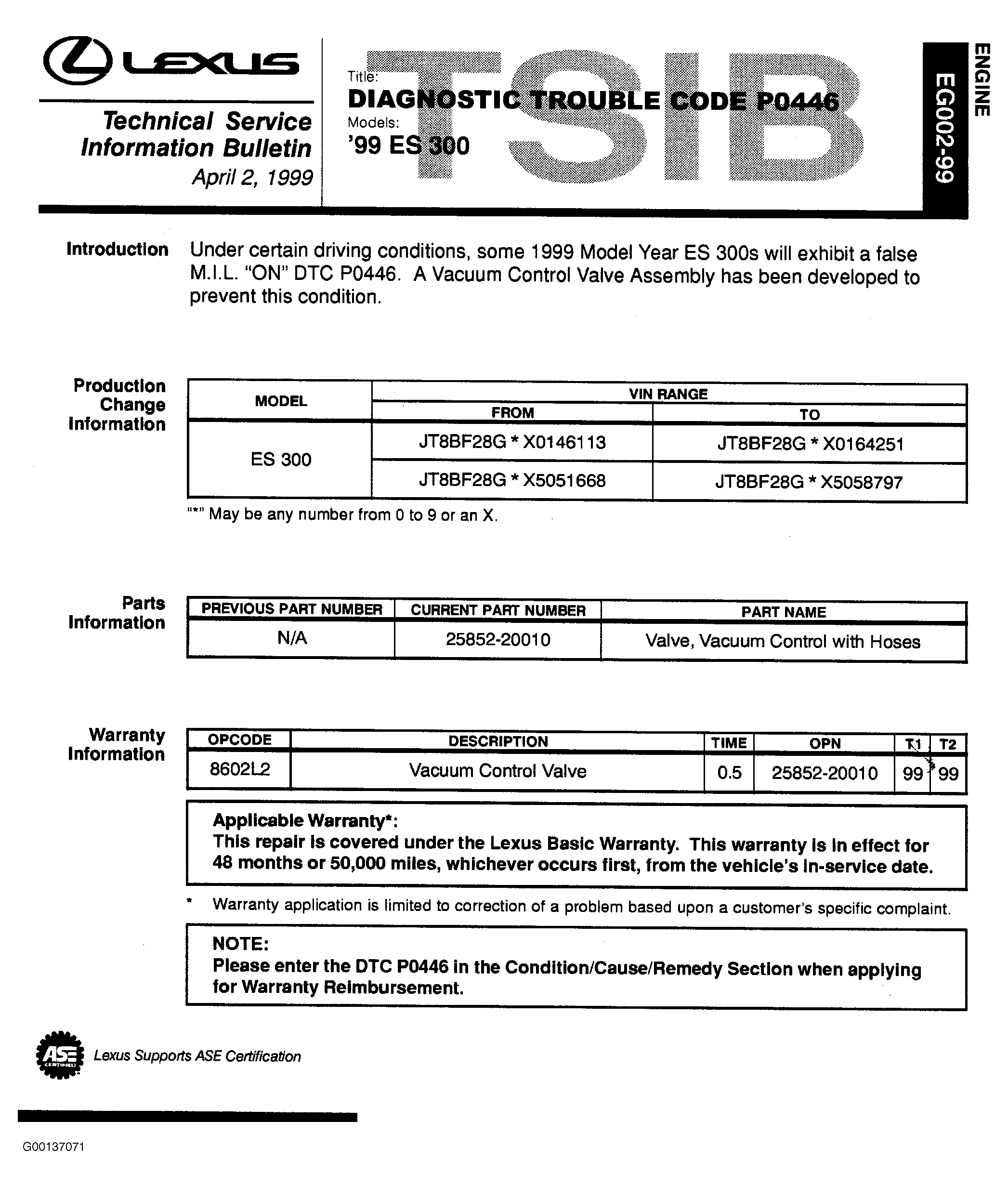

Fig 1: Page 1 of Bulletin
G00137071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

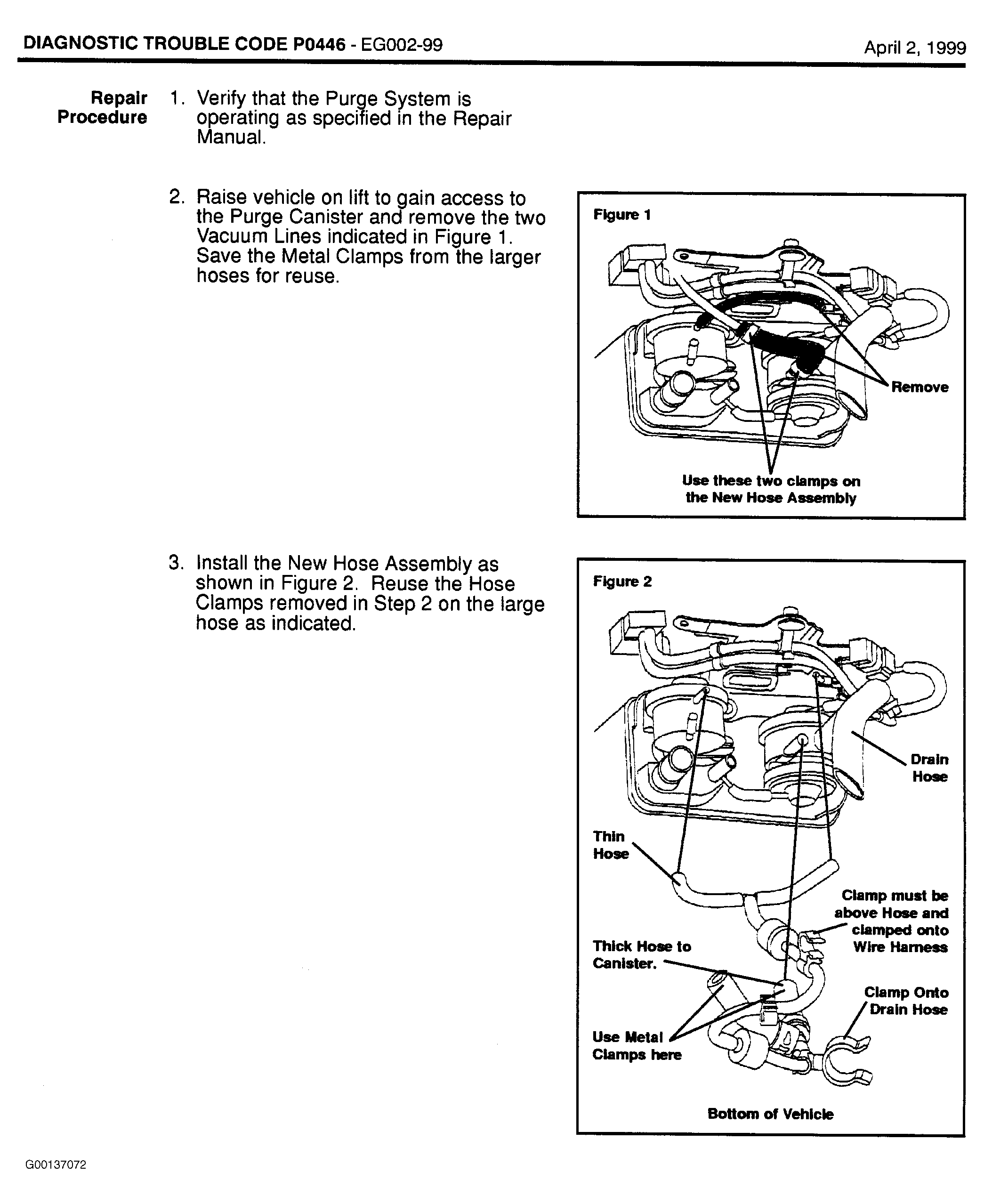

Fig 2: Page 2 of Bulletin
G00137072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

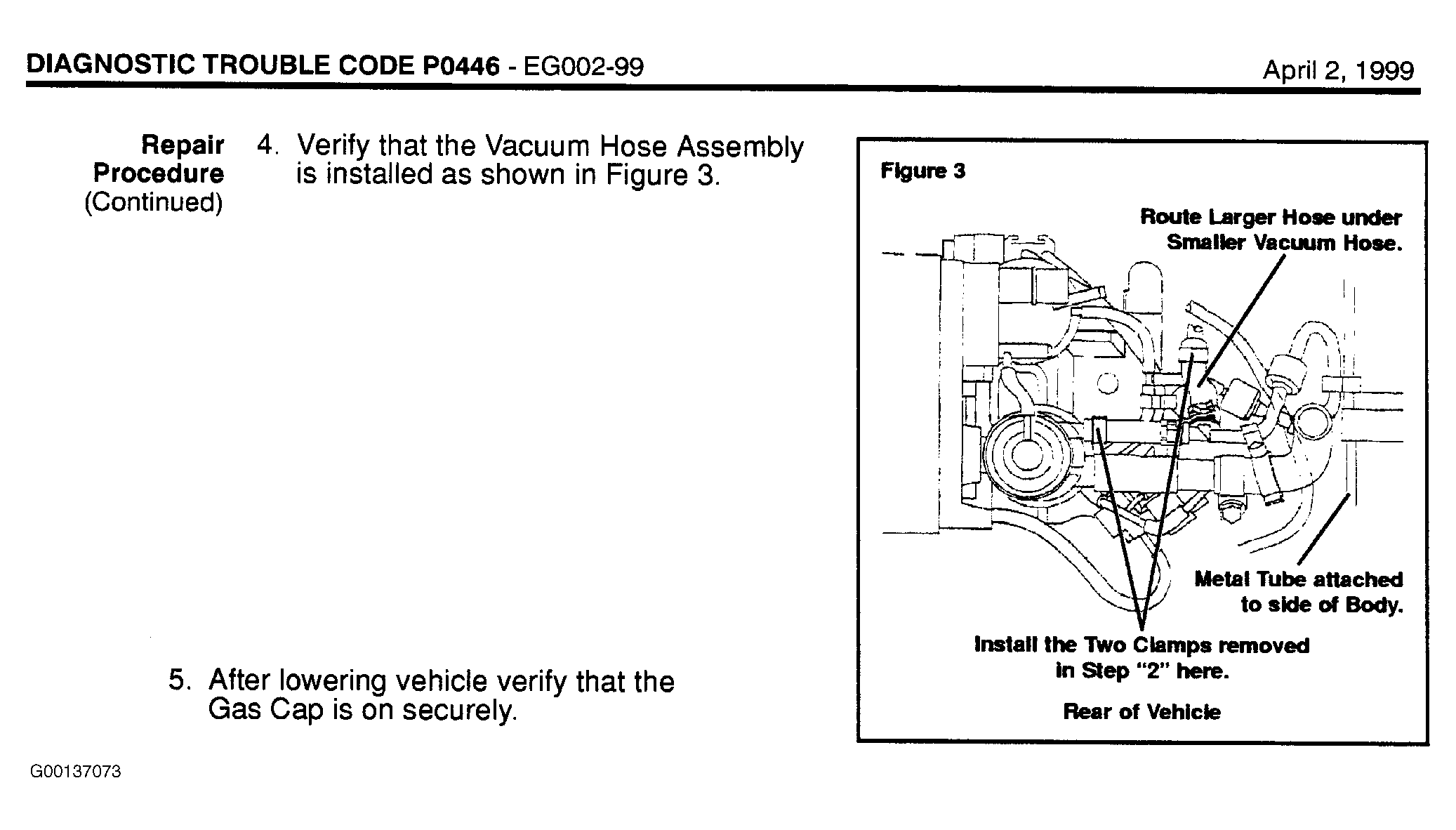

Fig 3: Page 3 of Bulletin
G00137073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
