Removal (SC400)

  1. Remove engine cover. Remove intake air connector. Remove throttle body from intake manifolds. See THROTTLE BODY . Remove engine cover brackets. Disconnect throttle position sensor connector, accelerator pedal position sensor and throttle control motor connectors.

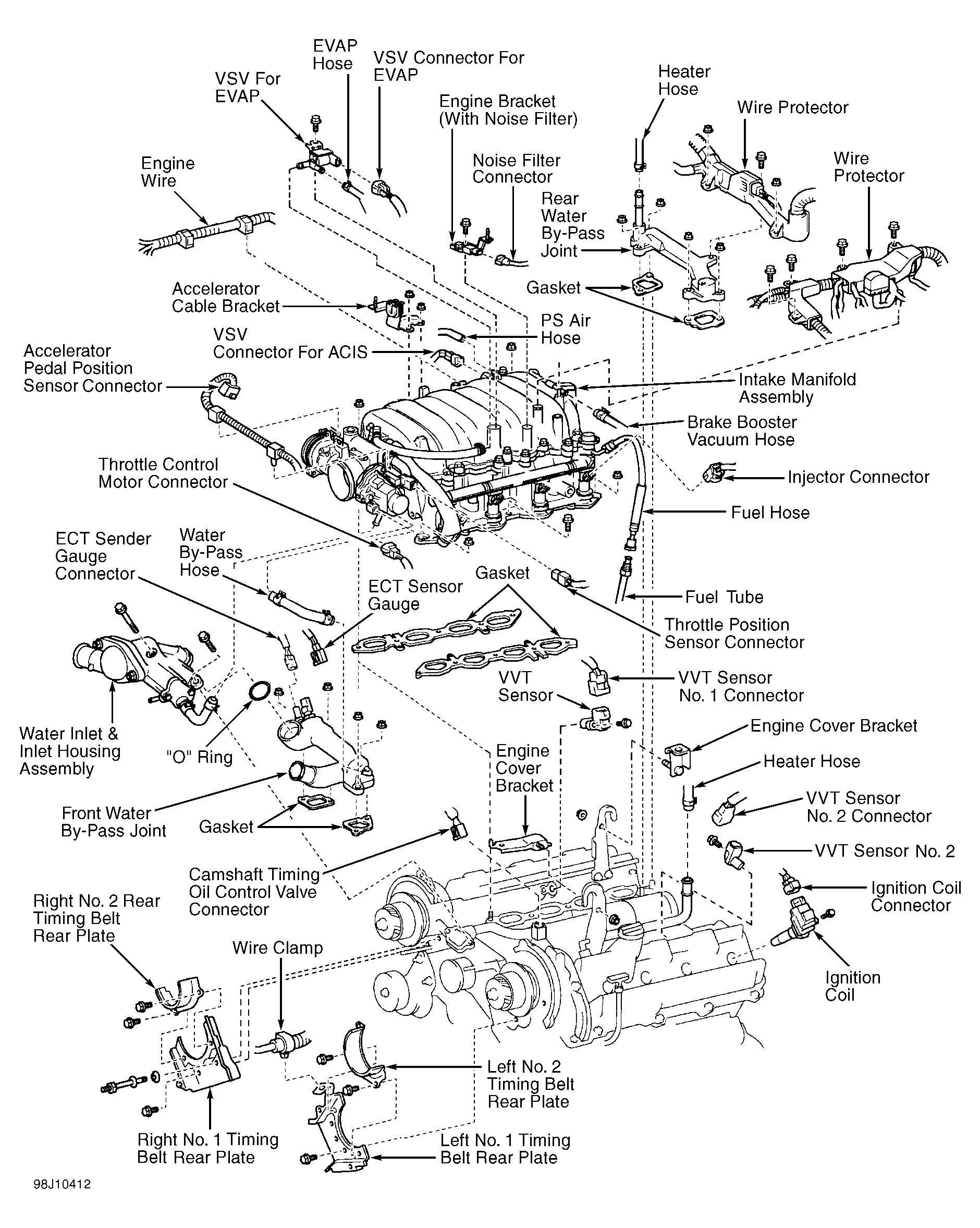

  2. Disconnect EVAP and ACIS vacuum switching valve connectors. Disconnect injector connectors. Disconnect noise filter and camshaft timing oil control valve connectors. See Figure.
  3. Disconnect brake booster vacuum hose. Disconnect PCV hose. Disconnect EVAP vacuum switching valve hose. Disconnect PS air hose from intake manifold. Disconnect rear water bypass joint heater hose. Disconnect vacuum hose from heater water valve vacuum switching valve.
  4. Disconnect water bypass hoses from throttle body. Disconnect wire clamp from throttle body. Disconnect wire clamps from wire clamp bracket on right fuel rail. Remove bolt and wire clamp bracket from right front bearing cap.
  5. Remove bolts, and disconnect engine wire protector from rear water bypass joint and right cylinder head. Remove EVAP vacuum switching valve bolt. Remove bolt and wire clamp bracket from left valve cover. Remove bolts, and disconnect engine wire protector from intake manifold and left front bearing cap. Remove bolts, nuts, intake manifold assembly and gaskets.
  6. Remove nuts, ACIS actuator and gasket. Disconnect vacuum hose from ACIS actuator. Remove bolt, and disconnect ACIS vacuum switching valve from upper intake manifold. Remove nuts, bolts, upper intake manifold and gasket. Remove bolts and intake air control valve.
