Clutch Start Cancel Switch Test: T100
- Locate switch on left side of instrument panel. Remove left lower instrument panel to access switch connector. Disconnect wiring harness connector from switch pigtail connector. See Fig 2.
- Connect negative lead of ohmmeter to terminal No. 1. Check for continuity between clutch start cancel switch connector terminals No. 1 and 2 and terminals No. 1 and 3. If continuity does not exist, go to next step. If continuity exists, replace clutch start cancel switch.

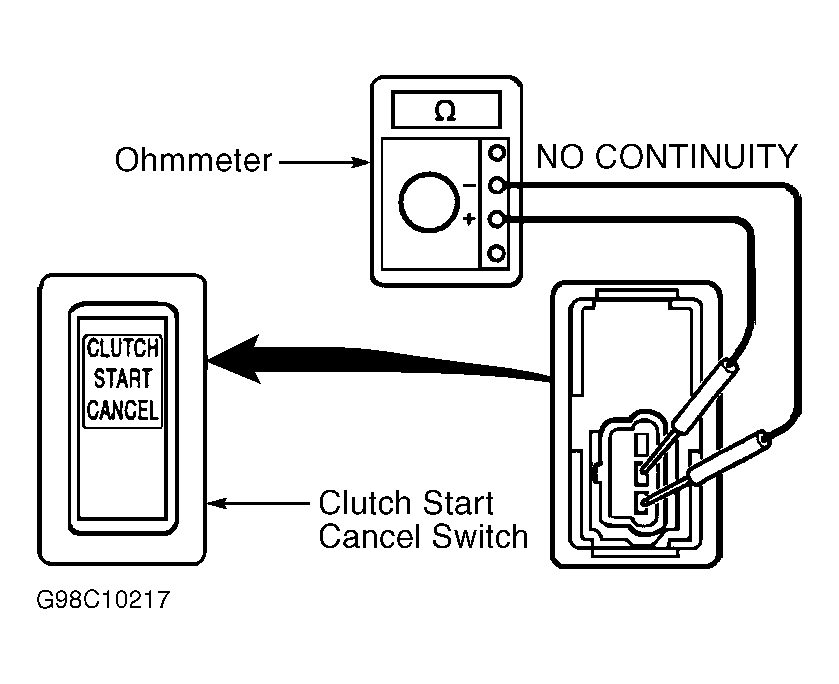

- Check for continuity between clutch start cancel switch connector terminals No. 2 and 3. If continuity exists, replace clutch start cancel switch. If continuity does not exist, check operation of switch by applying battery voltage to switch. Using jumper wires, connect positive battery lead to terminal No. 3 and negative battery lead to terminal No. 1 of clutch start cancel switch connector.
- Connect ohmmeter positive lead to terminal No. 2 and negative lead to terminal No. 1 of clutch start cancel switch connector. Continuity should not exist. Depress clutch start cancel switch. Continuity should exist and indicator light on clutch start cancel switch should be on. If switch does not test as specified, replace switch.
