Connector Identification
NOTE:
This article also applies to Lexus LX470. Refer to Land Cruiser, unless otherwise indicated.
NOTE:

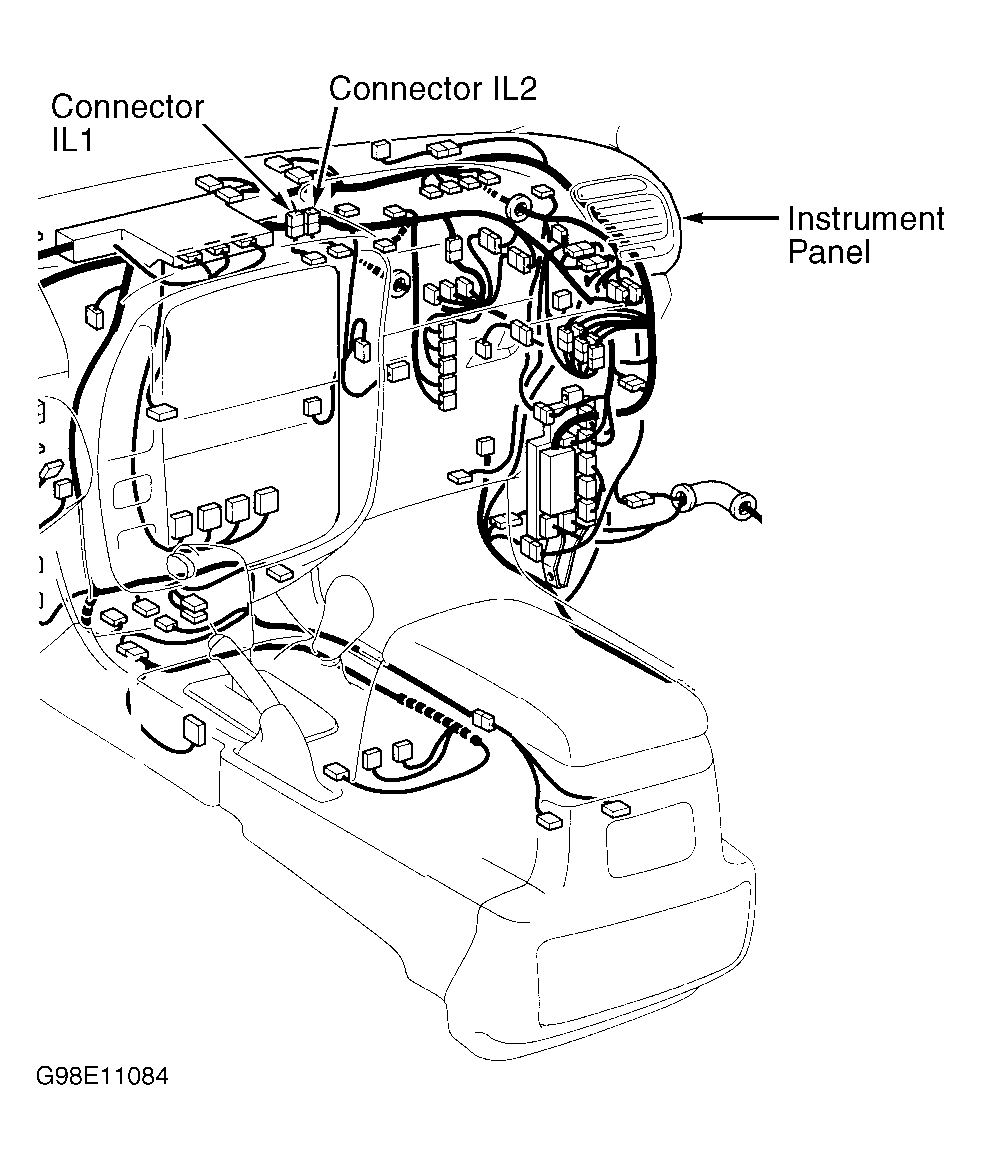

Many wires change colors at connectors IL1 (10-pin) and IL2 (18-pin). Both connectors are located at passenger's side of instrument panel. See Fig 1. Many wires may change color to a Sky Blue wire. Sky Blue wires are marked with a terminal number for wire identification.
