Repair Manual Correction: Steering Angle Sensor Inspection (ST002-98)

Publication date: 1998-03-06
Reference number: ST002-98

REPAIR MANUAL CORRECTION: STEERING ANGLE SENSOR INSPECTION

REPAIR MANUAL CORRECTION: STEERING ANGLE SENSOR INSPECTION

TECHNICAL SERVICE BULLETIN

Reference Number(s): ST002-98, Date of Issue:  March 6, 1998
LEXUS: 1998 LS 400
GROUP: Steering
COPYRIGHT: © 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002

DESCRIPTION

REPAIR MANUAL CORRECTION: STEERING ANGLE SENSOR INSPECTION

Repair Manual corrections have been made to the Steering Angle Sensor inspection procedure.

BULLETIN CONTENT

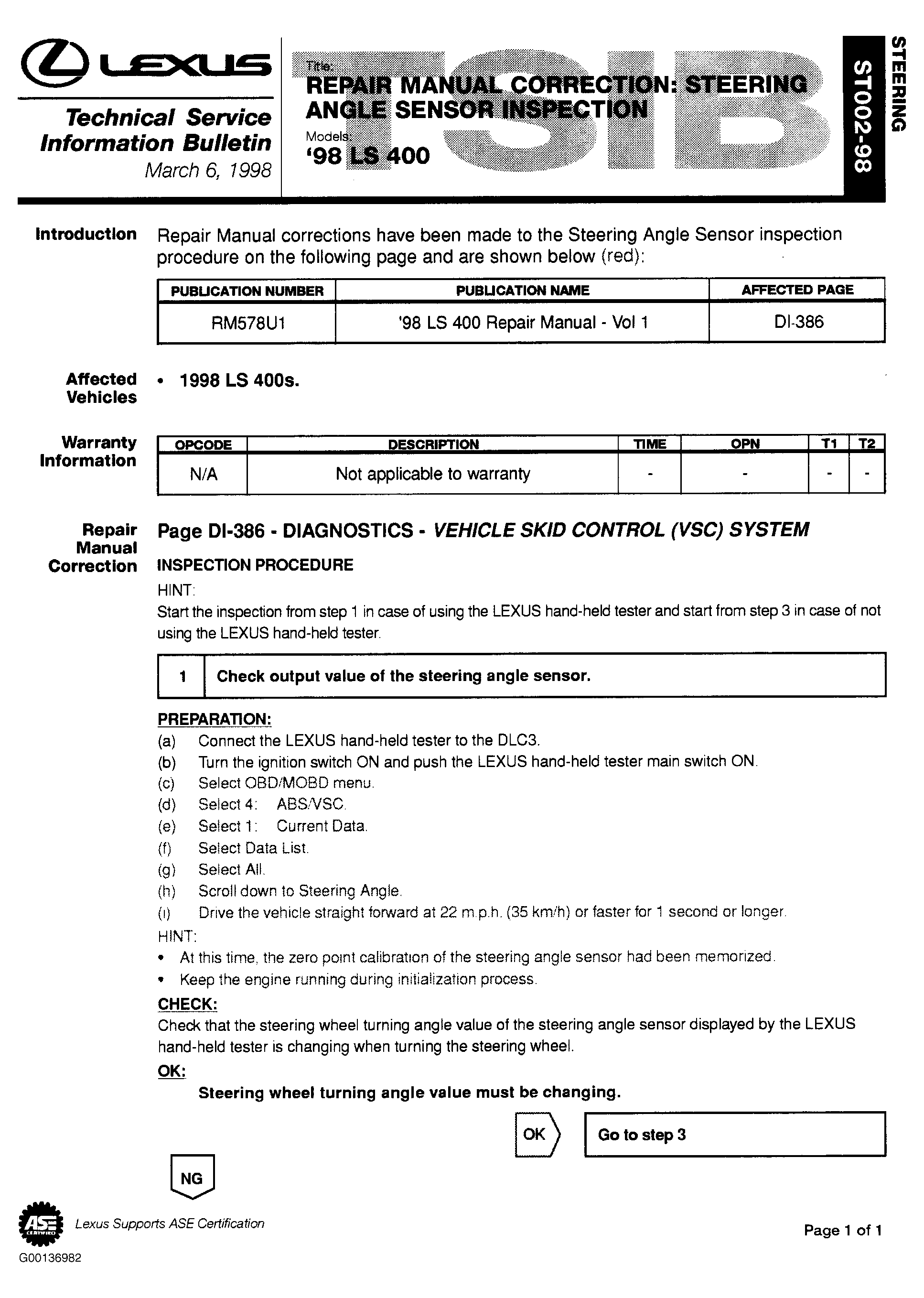

Fig 1: Page 1 of Bulletin
G00136982Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
