Precaution Foe Replacing Navigation Display (EL003-98)

Publication date: 1998-02-13
Reference number: EL003-98

PRECAUTION FOE REPLACING NAVIGATION DISPLAY

TECHNICAL SERVICE BULLETIN

Reference Number(s): EL003-98, Date of Issue: February 13, 1998

LEXUS:	1998 LS 400
GROUP:	Electrical
COPYRIGHT:	© 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002

DESCRIPTION

PRECAUTION FOE REPLACING THE NAVIGATION DISPLAY

Early production 1998 LS 400 Navigation Display units may have spacers on the mounting brackets, (P/N 86211-50030 = R and P/N 86212-50030 = L) that are not needed for replacement units.

BULLETIN CONTENT

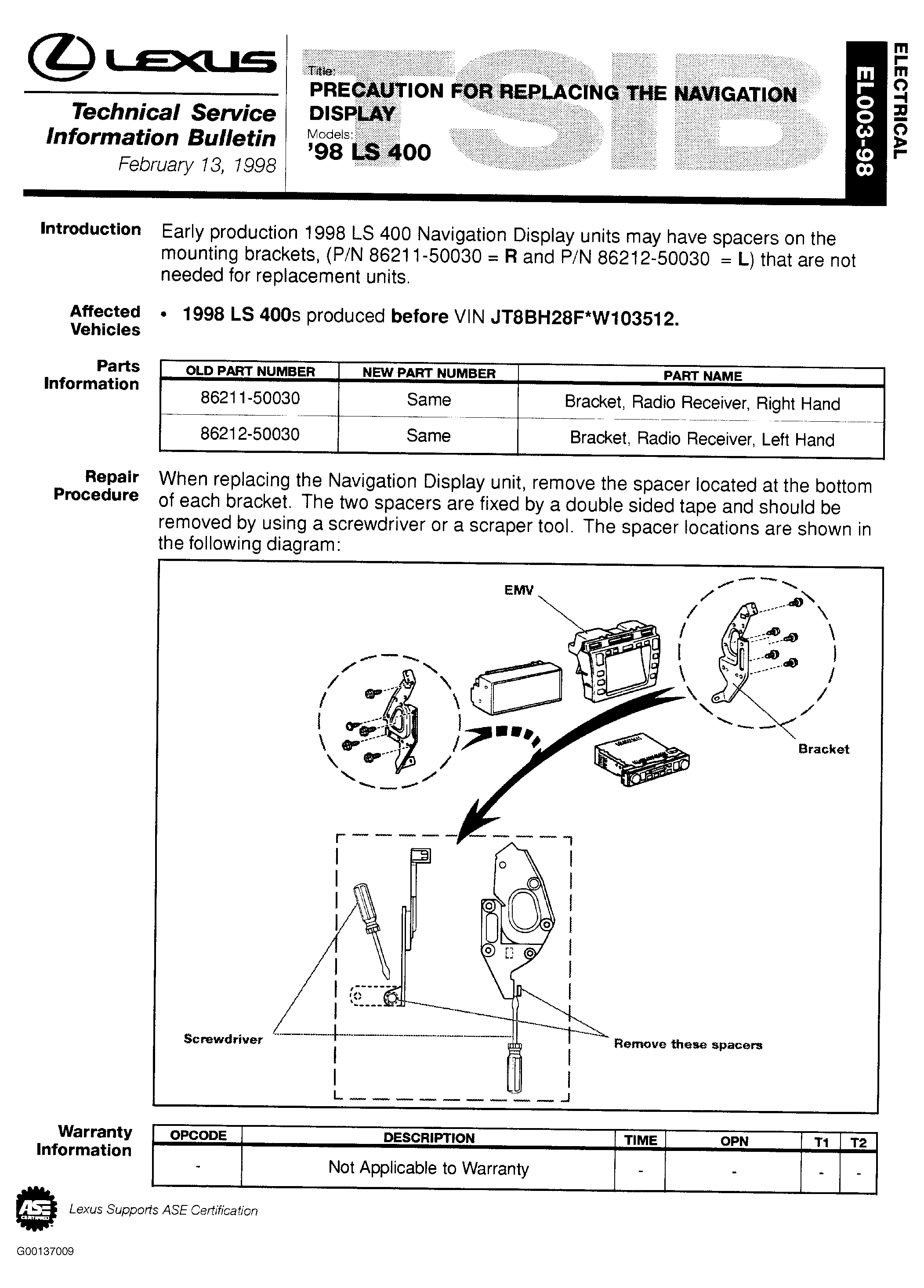

Fig 1: Page 1 of Bulletin
