Alternate Method To Register Wireless Recognition Codes (SS004-99)

Publication date: 1999-06-18
Reference number: SS004-99

ALTERNATE METHOD TO REGISTER WIRELESS RECOGNITION CODES

TECHNICAL SERVICE BULLETIN

Reference Number(s): SS004-99, Date of Issue: June 18, 1999

LEXUS:	1998 LS 400 & GS 300/400; 1999 LS 400, GS 300/400 & RX 300
GROUP:	Special Service Tools
COPYRIGHT:	© 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002

ALTERNATE METHOD TO REGISTER WIRELESS RECOGNITION CODES

The Lexus Diagnostic Tester allows Lexus Dealers to Add and Rewrite Wireless Recognition Codes.

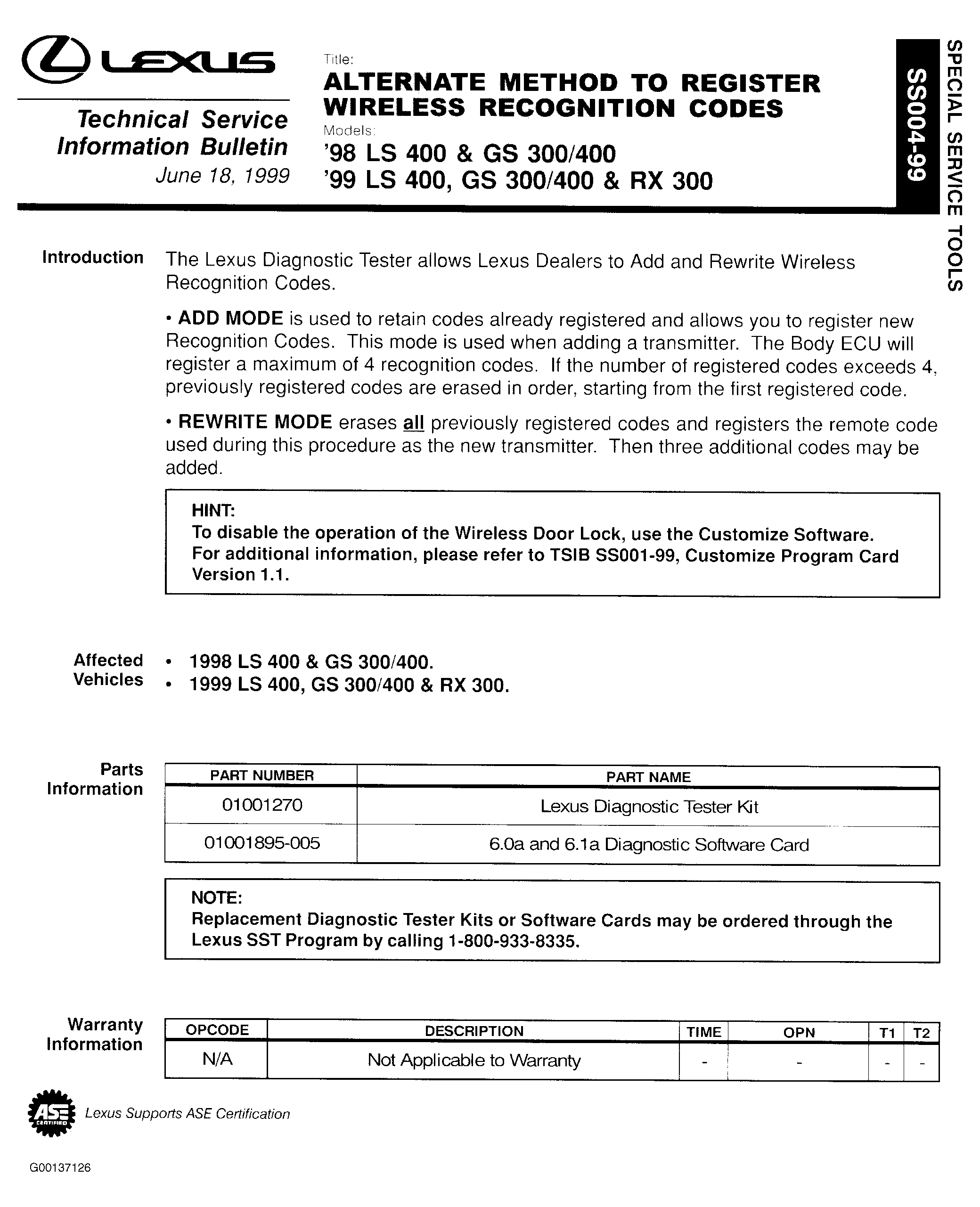

Fig 1: Page 1 of Bulletin

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

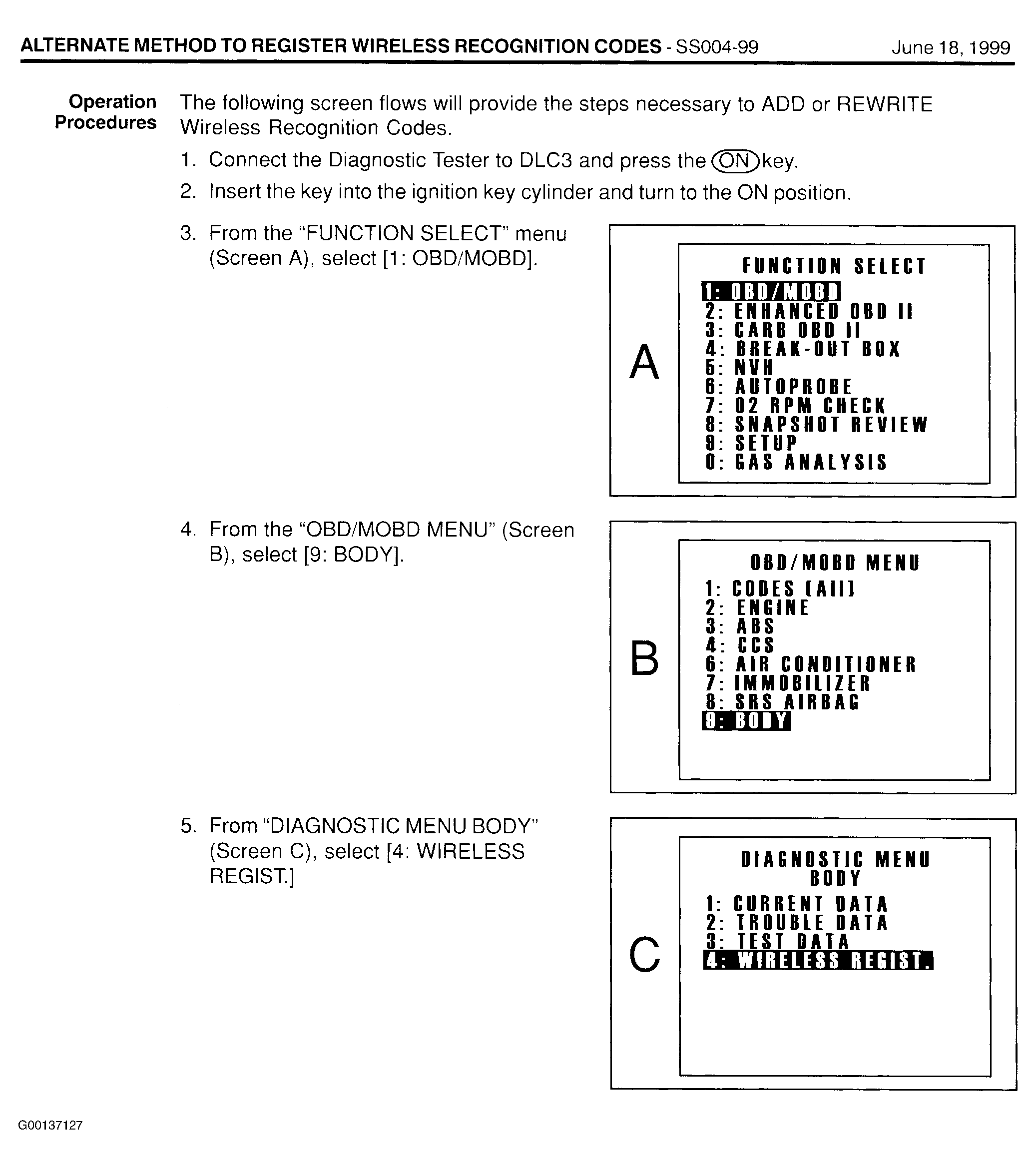

Fig 2: Page 2 of Bulletin

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

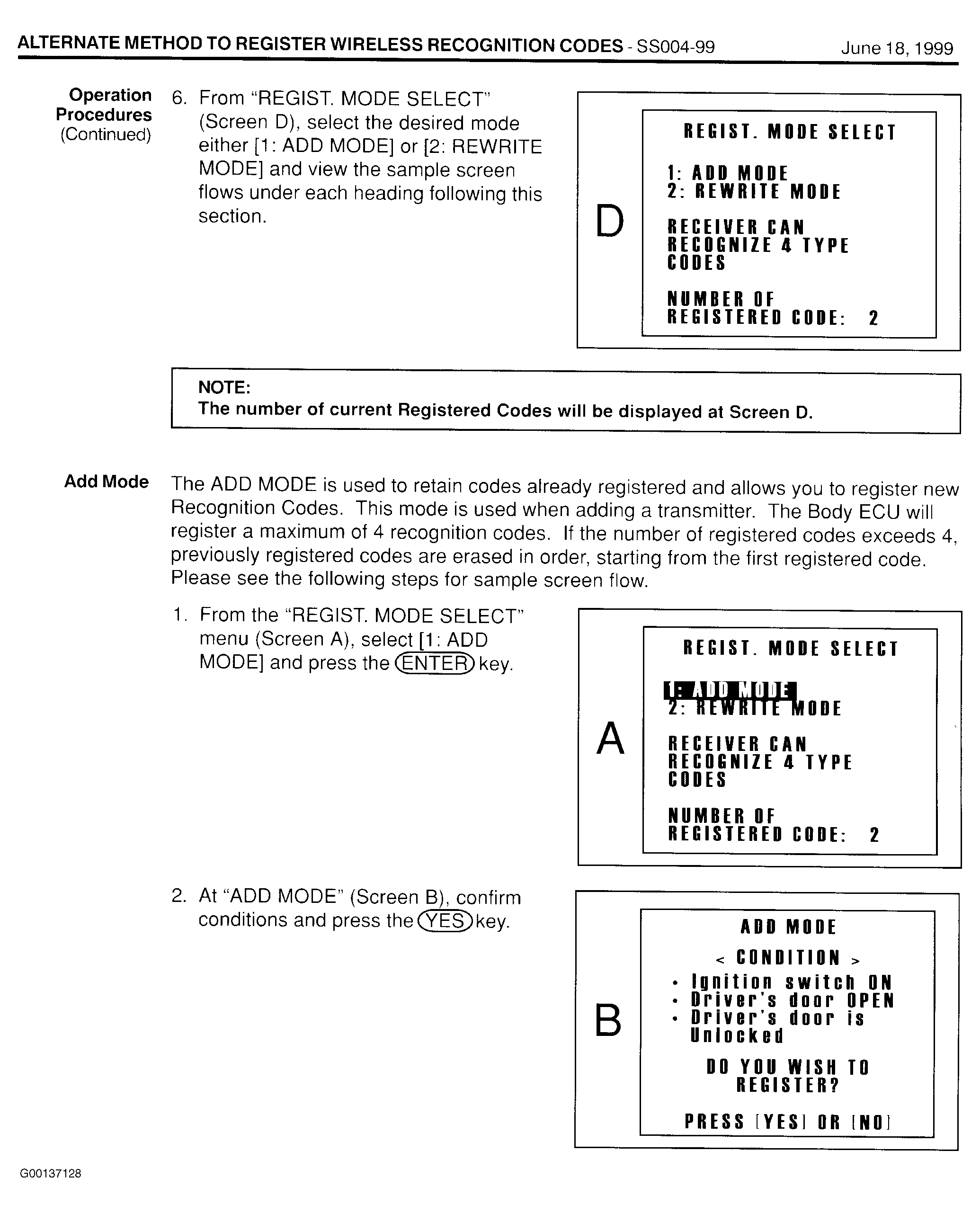

Fig 3: Page 3 of Bulletin

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

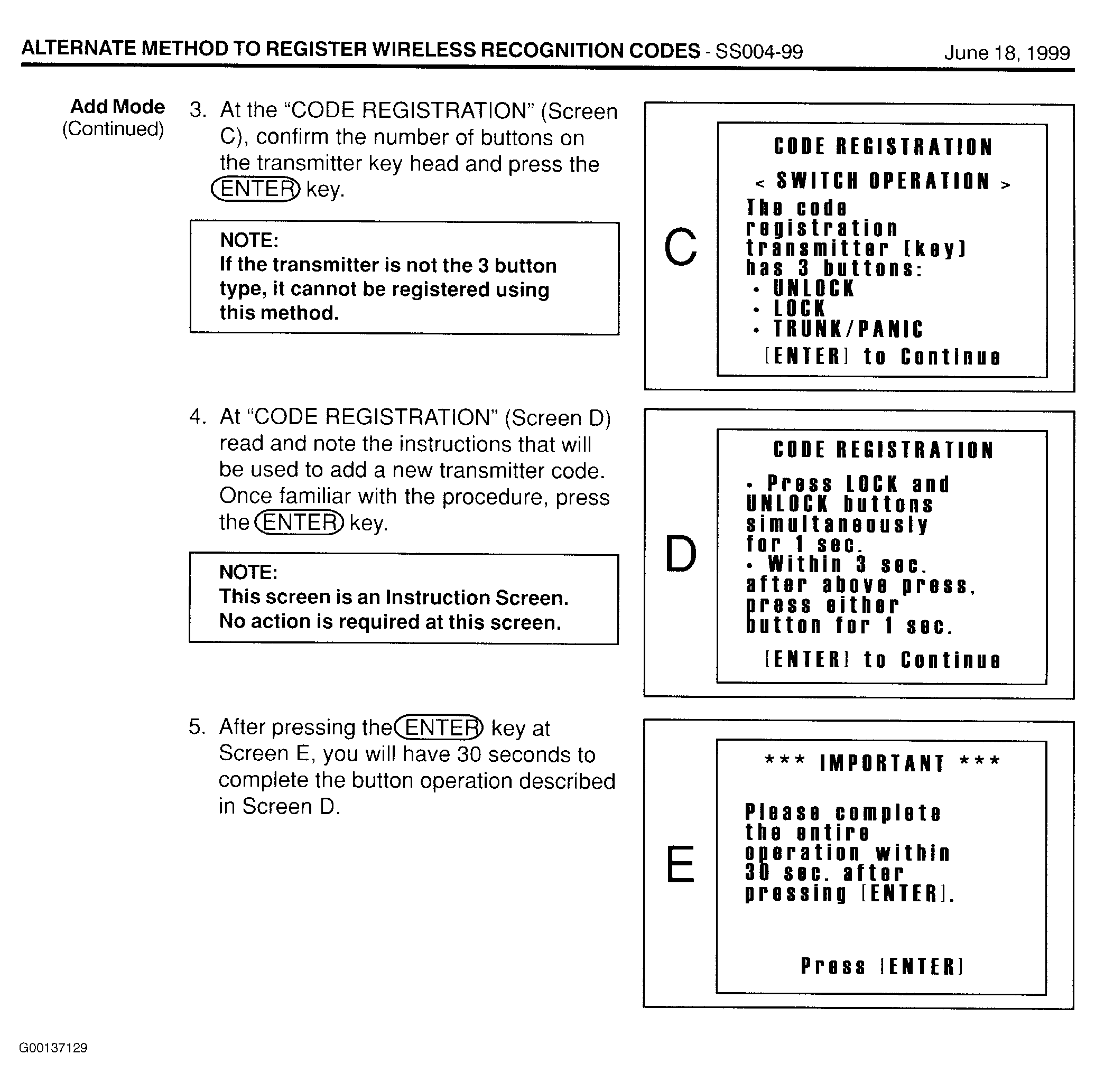

Fig 4: Page 4 of Bulletin

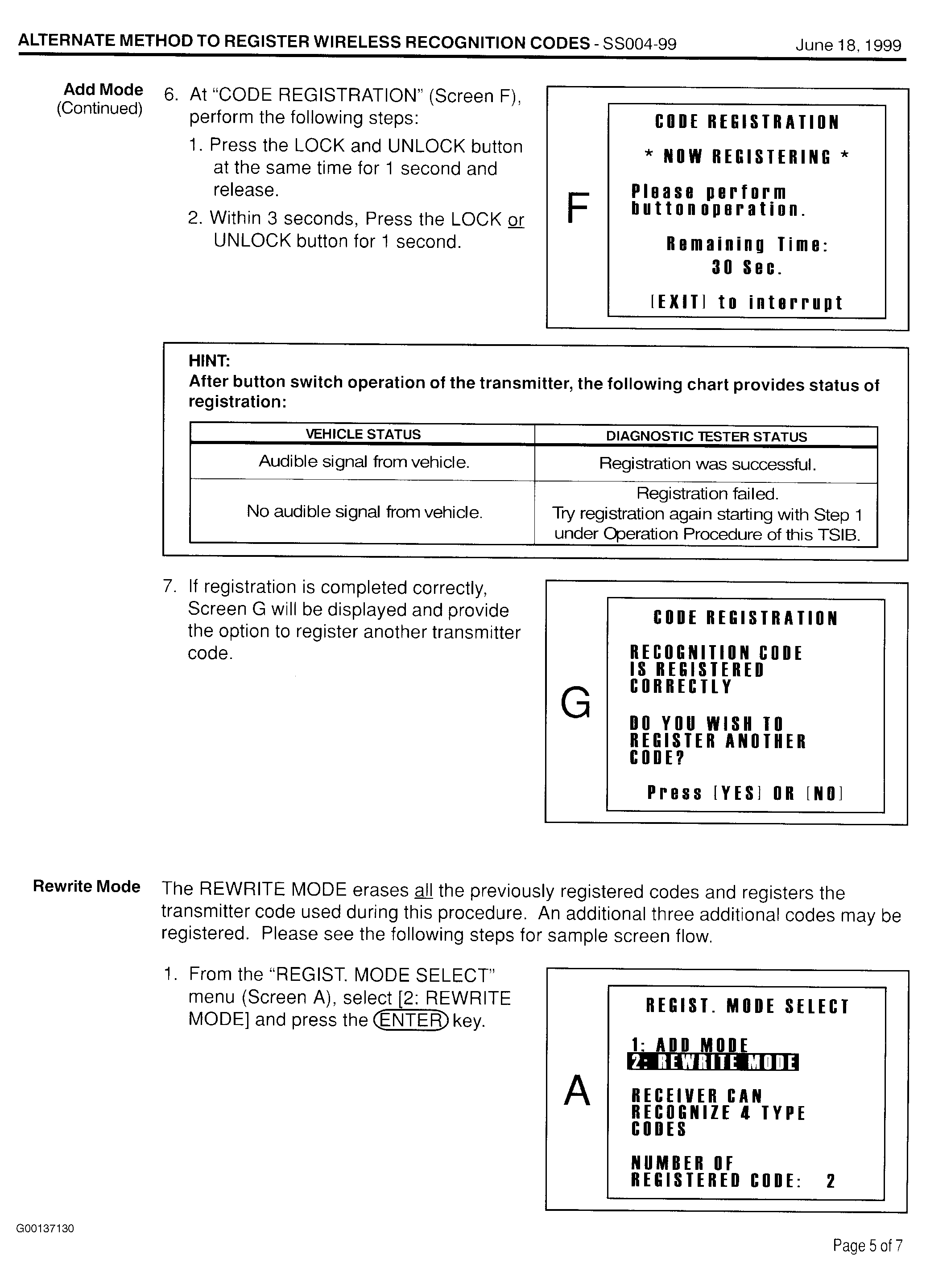

Fig 5: Page 5 of Bulletin

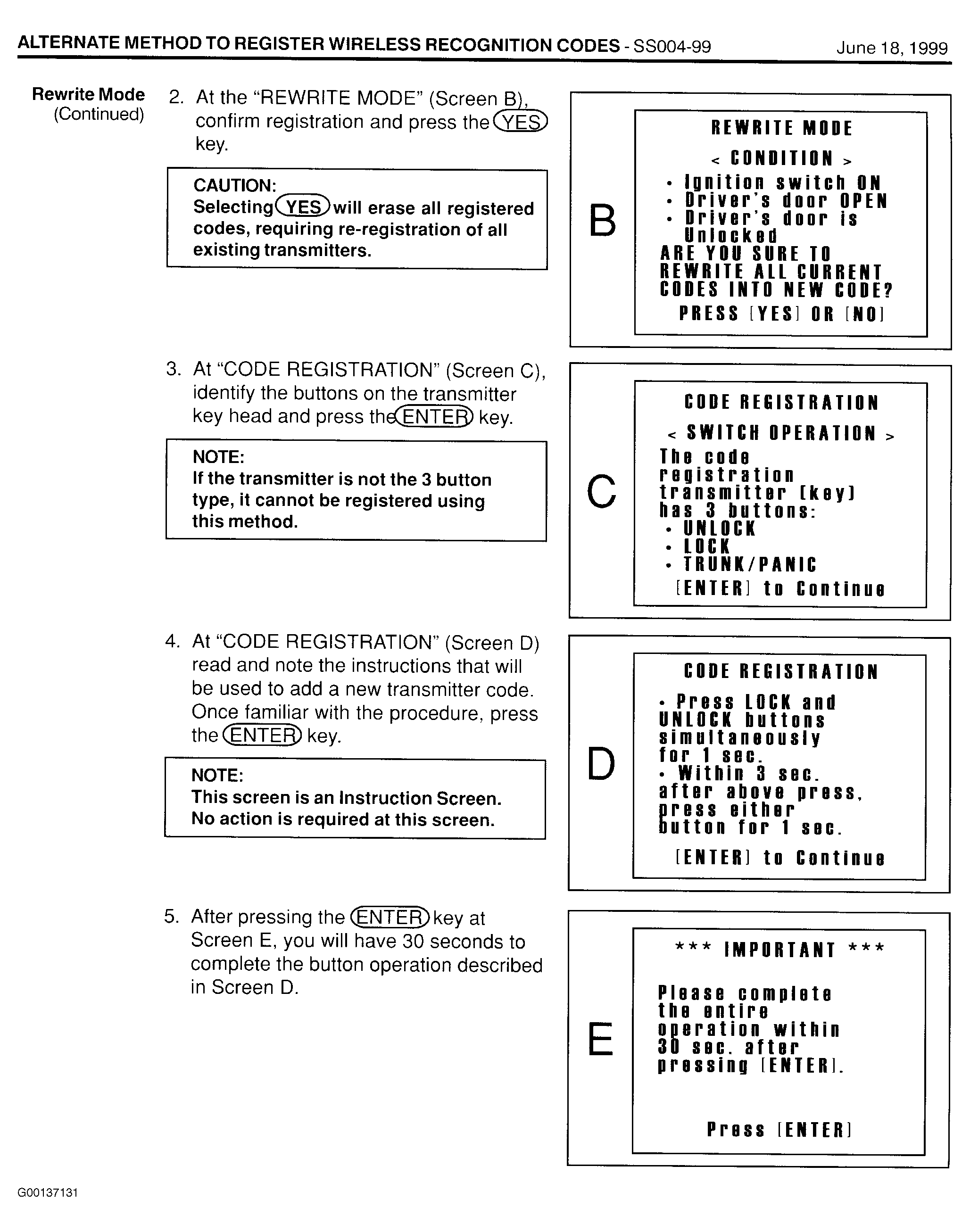

Fig 6: Page 6 of Bulletin

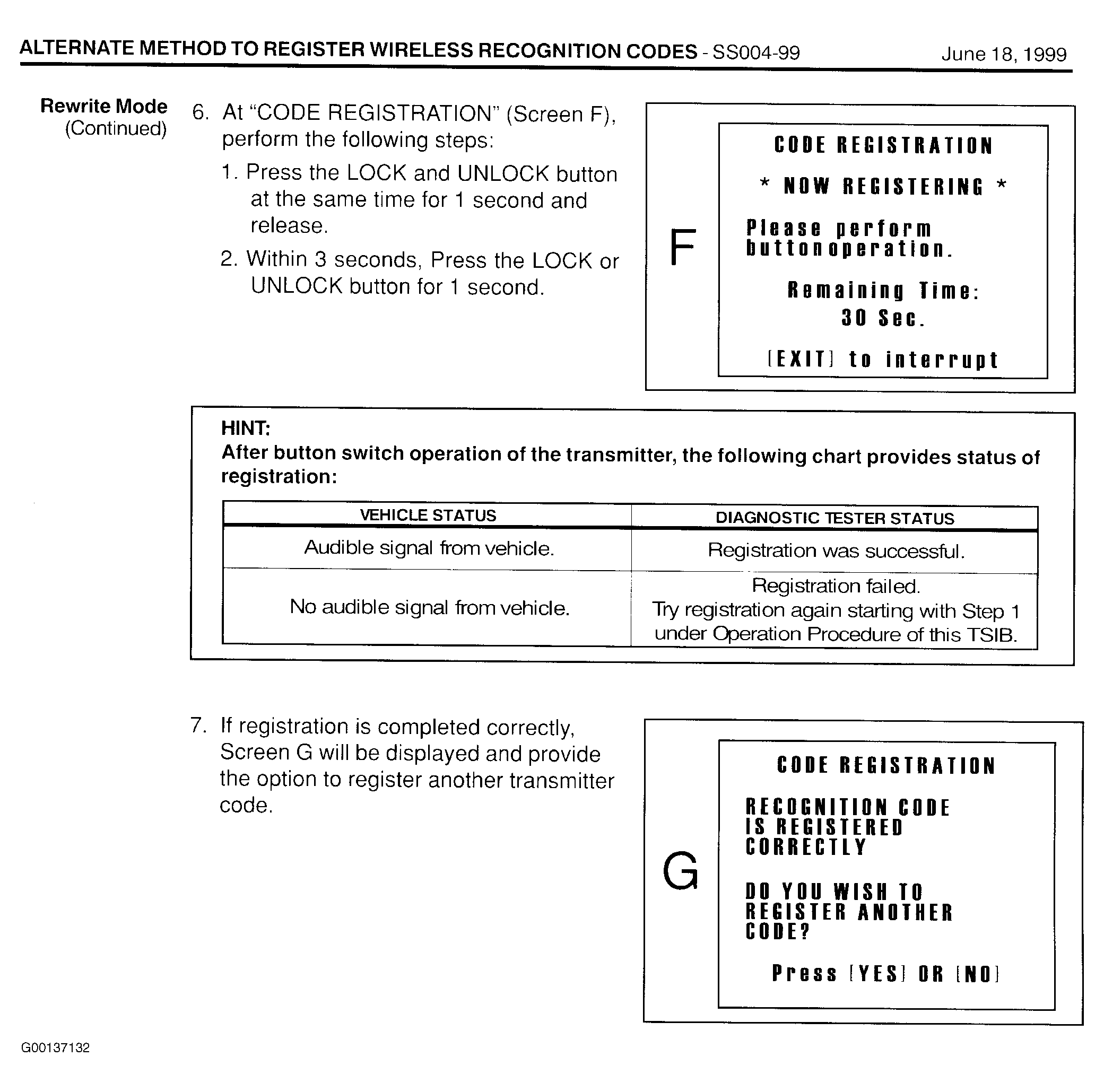

Fig 7: Page 7 of Bulletin
