Fluctuation Of Combination Meter (EL002-98)

Publication date: 1998-02-13
Reference number: EL002-98

FLUCTUATION OF COMBINATION METER

FLUCTUATION OF COMBINATION METER

TECHNICAL SERVICE BULLETIN

Reference Number(s): EL002-98, Date of Issue:  February 13, 1998
LEXUS: 1998 LS 400
GROUP: Electrical
COPYRIGHT: © 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002

DESCRIPTION

FLUCTUATION OF COMBINATION METER

The LS 400 is shipped with the short pin removed to prevent battery discharge during storage. This causes unusual combination meter movement when the ignition switch is initially turned ON with the short pin removed.

BULLETIN CONTENT

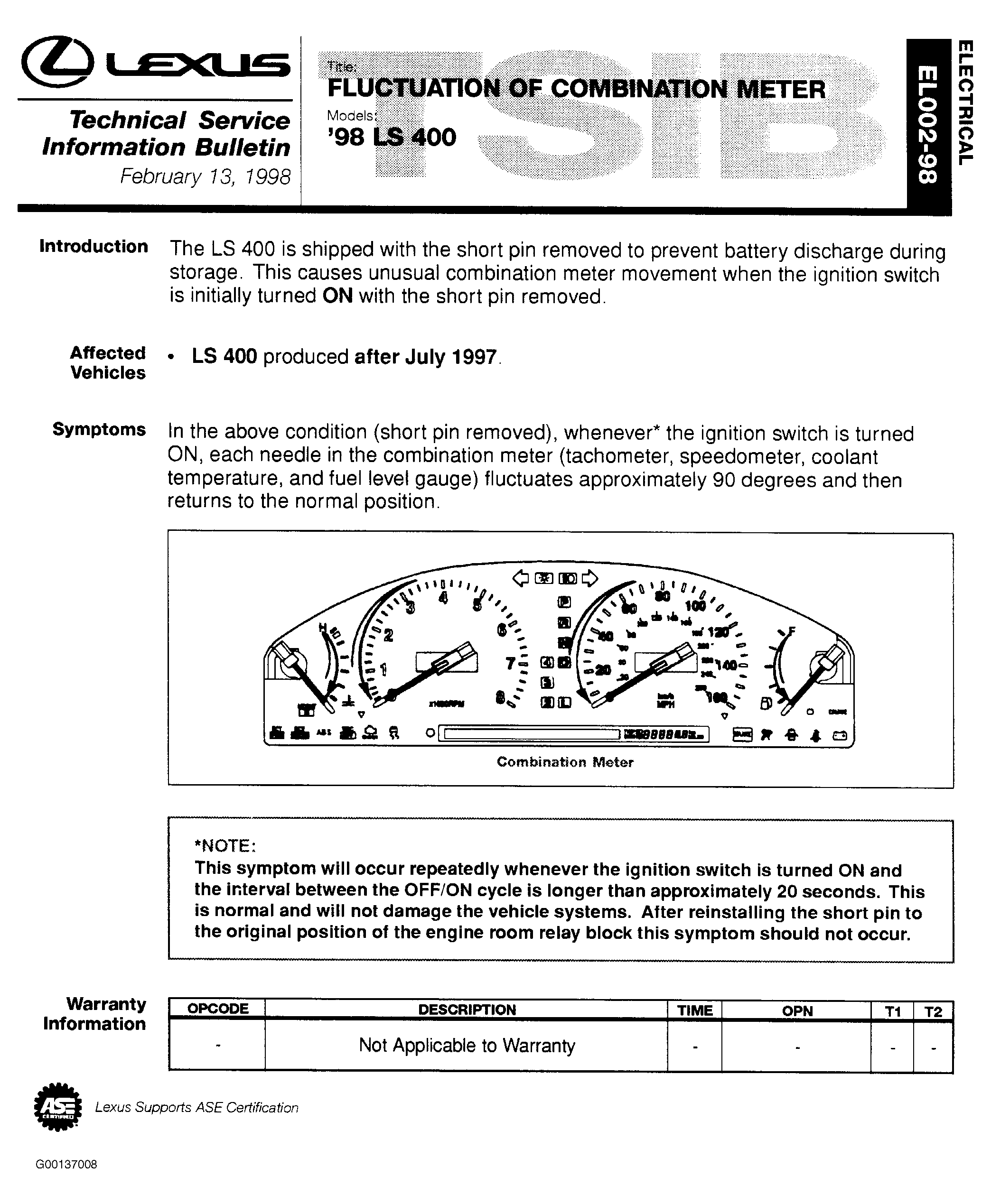

Fig 1: Page 1 of Bulletin
G00137008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
