Component Locations

COMPONENT LOCATIONS

Component	Location
A/C Single Pressure Switch	At upper left radiator support, integral to A/C triple pressure switch.See Fig 9 & Fig 10 .
Air Cleaner Inlet	Front of engine compartment. See Fig 1 & Fig 2 .
Air Cleaner & MAF Assembly	Front of engine compartment. See Fig 1 & Fig 2 .
Driver Side J/B	Behind left kick panel. See Fig 7.
Electric Cooling Fan Connector	Lower left edge of cooling fan support. See Fig 1 & Fig 2 .
Engine Control Module	In left front corner of engine compartment. See Fig 4.
Engine Main Relay	In Engine Room R/B No. 1. See Fig 4.
Engine Room R/B No. 1	Right side of engine compartment, behind strut tower. See Fig 4.
Engine Room R/B 3	In engine compartment. See Fig 4.
Fan 1, Fan 2 & Fan 3 Relays	In Engine Room R/B 3. See Fig 4.
Water Temperature Switch	Lower left corner of radiator.See Fig 9 & Fig 10 .

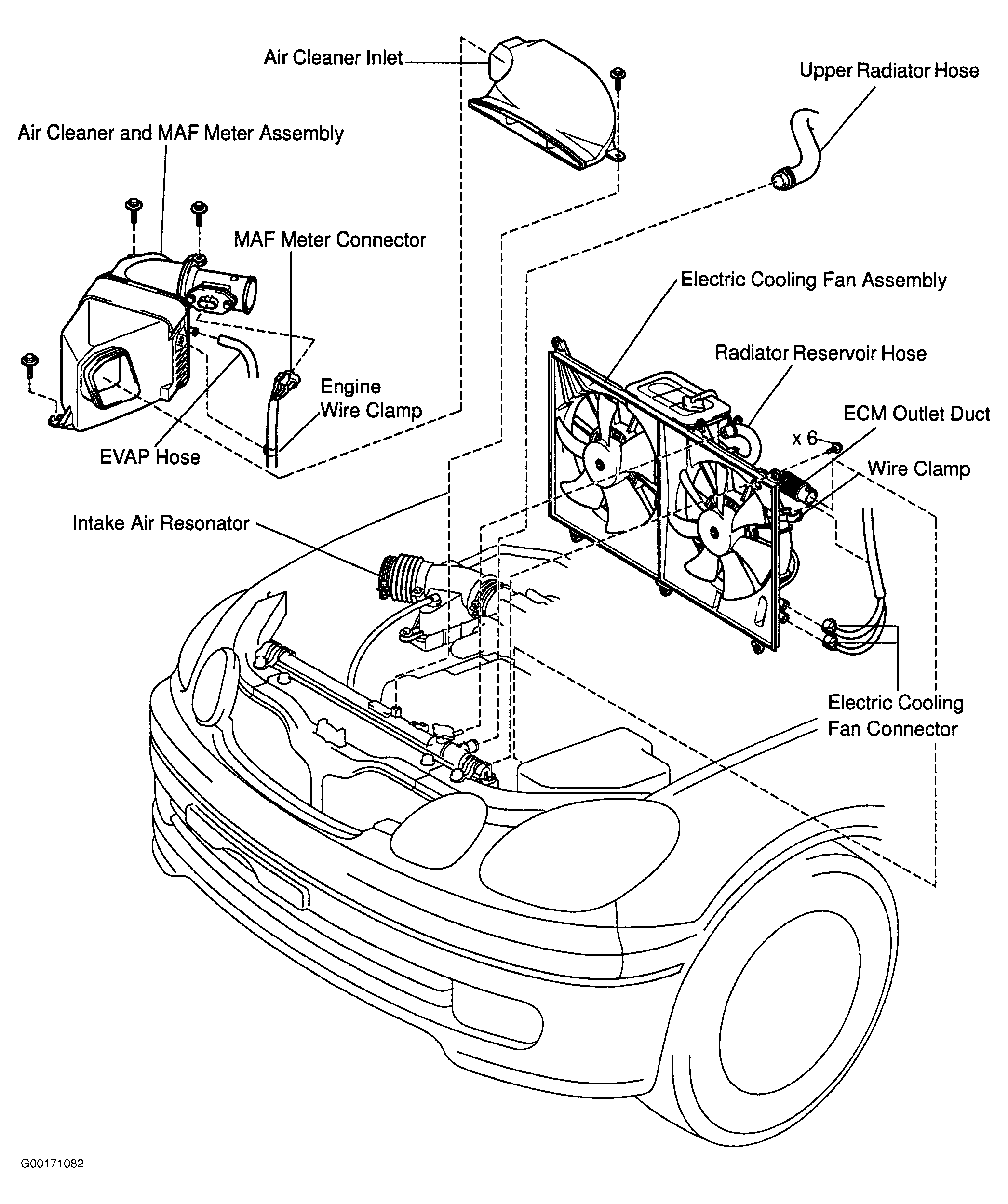

Fig 1: Locating Cooling Fan Components (3.0L)

G00171082

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

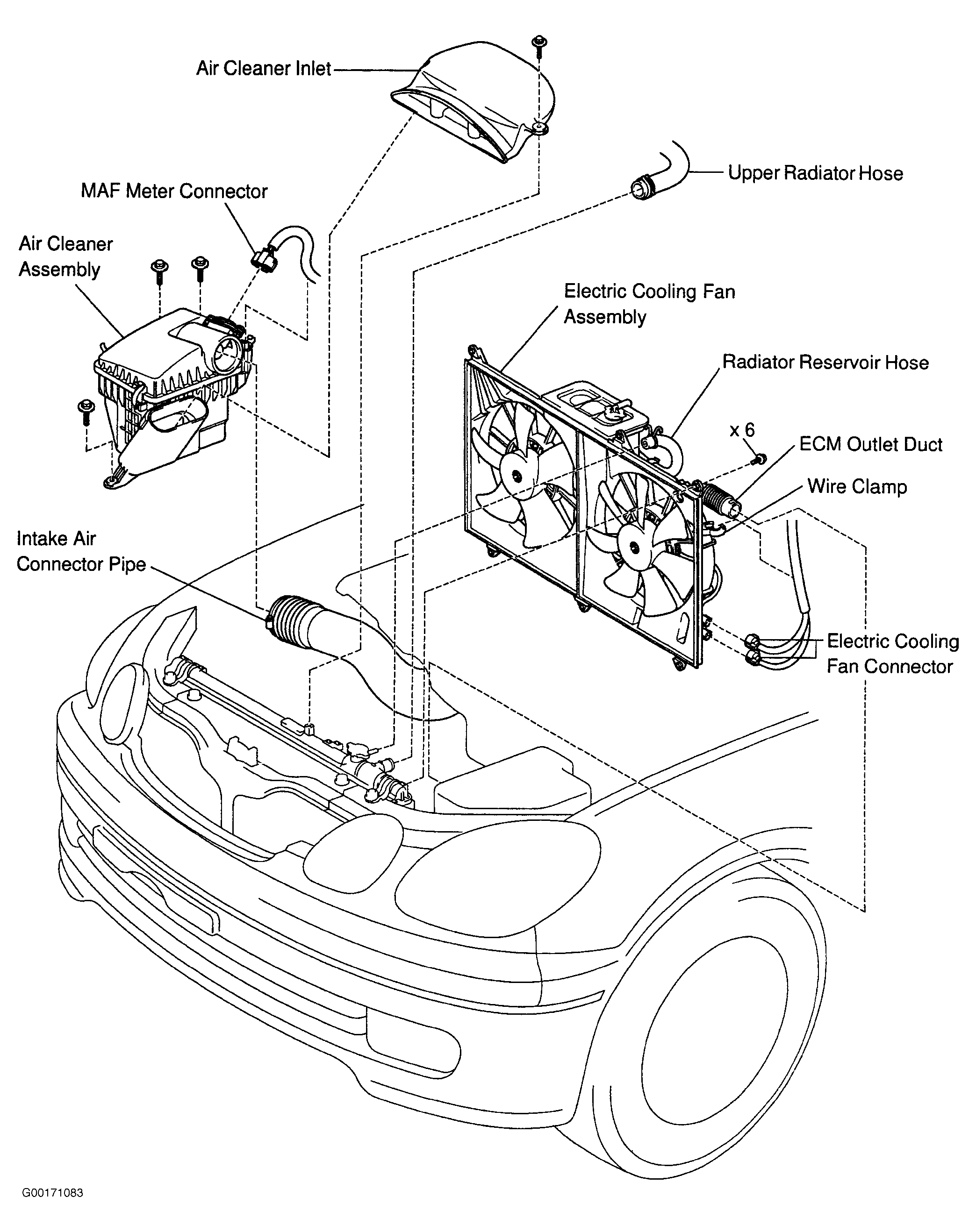

Fig 2: Locating Cooling Fan Components (4.0L)

G00171083

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

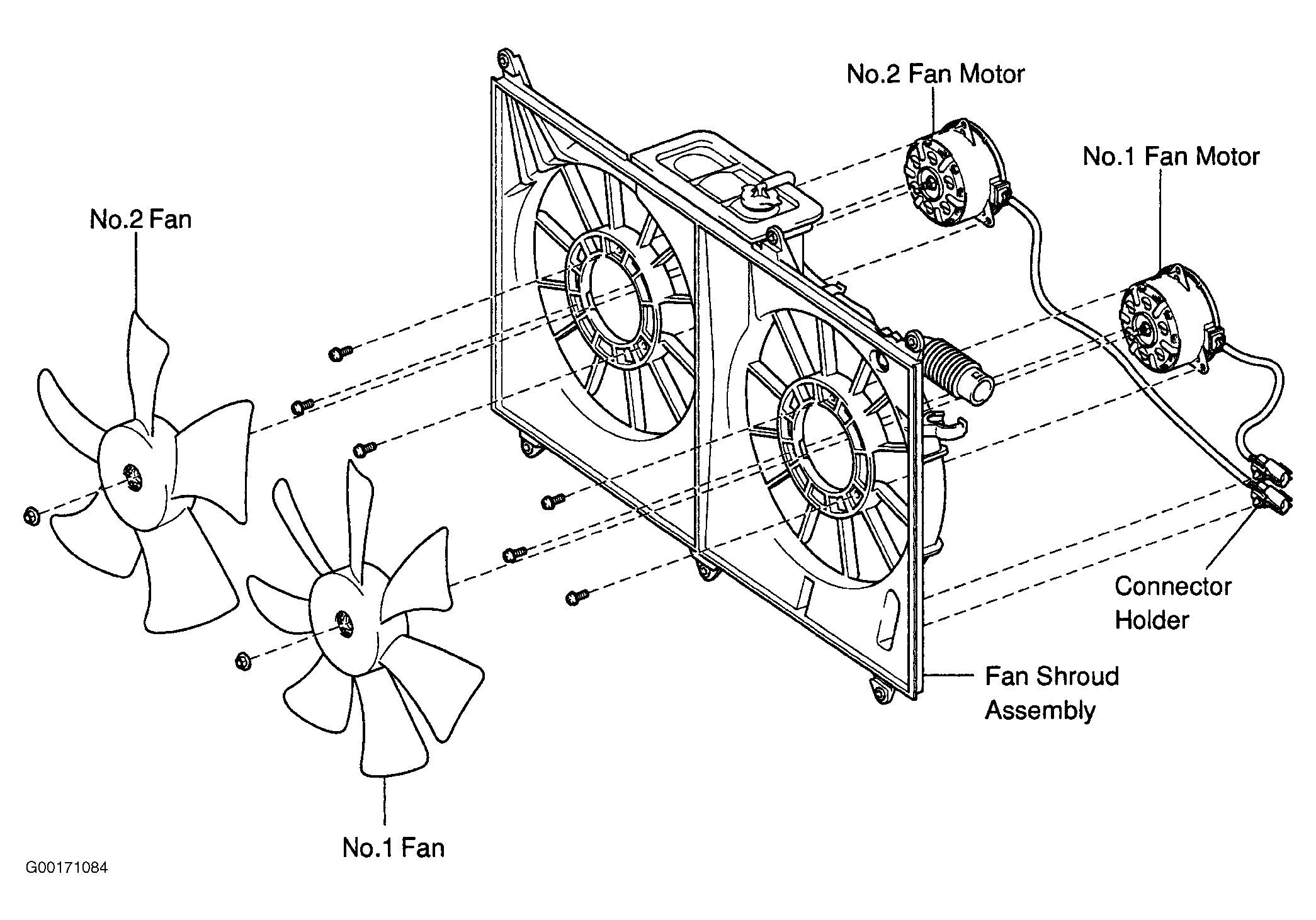

Fig 3: Identifying Cooling Fan Motors

G00171084

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Locating Engine Room Relay Boxes

G98A02198

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

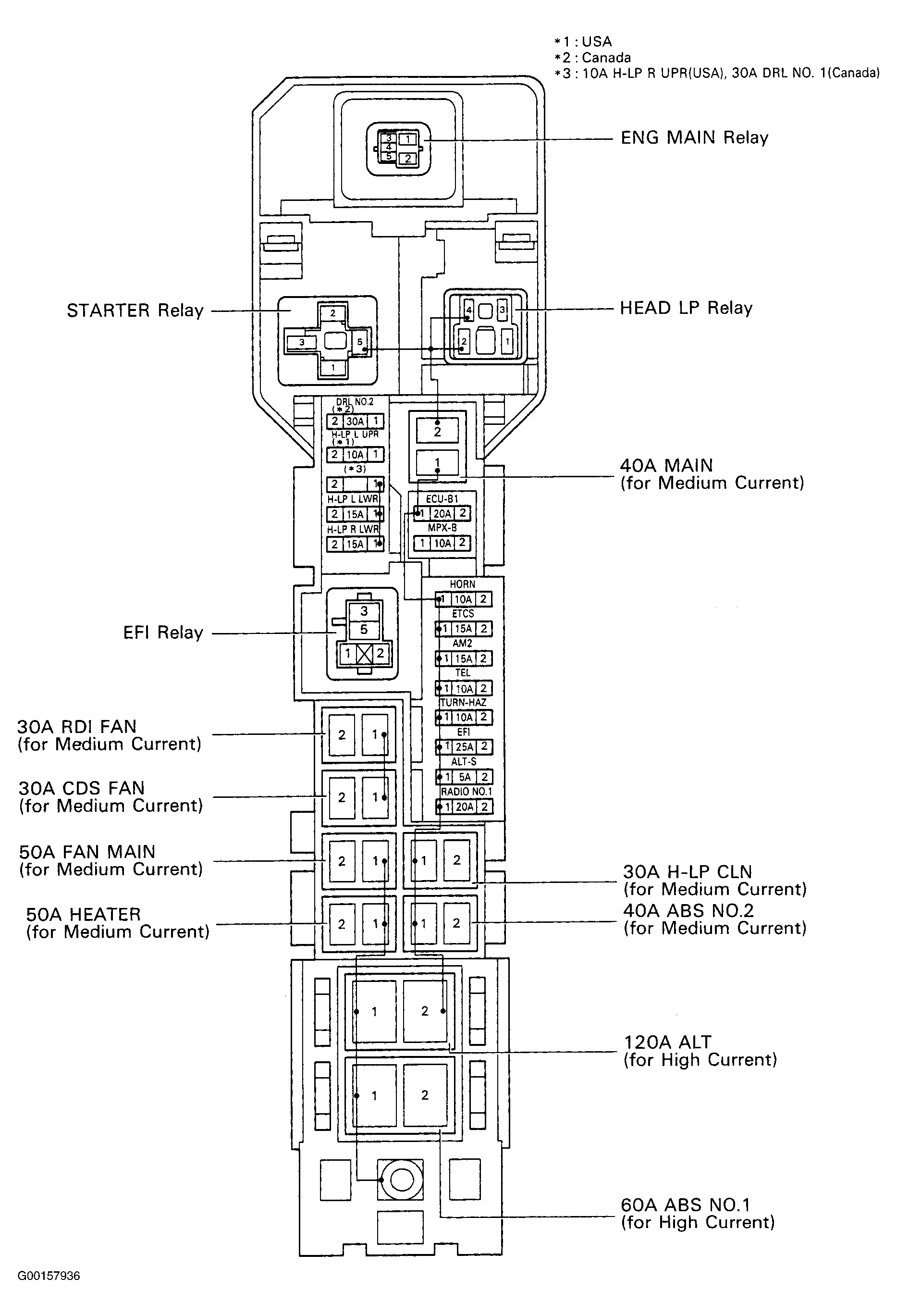

Fig 5: Identifying Engine Room No. 1 Relay Block Fuses & Relays

G00157936

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

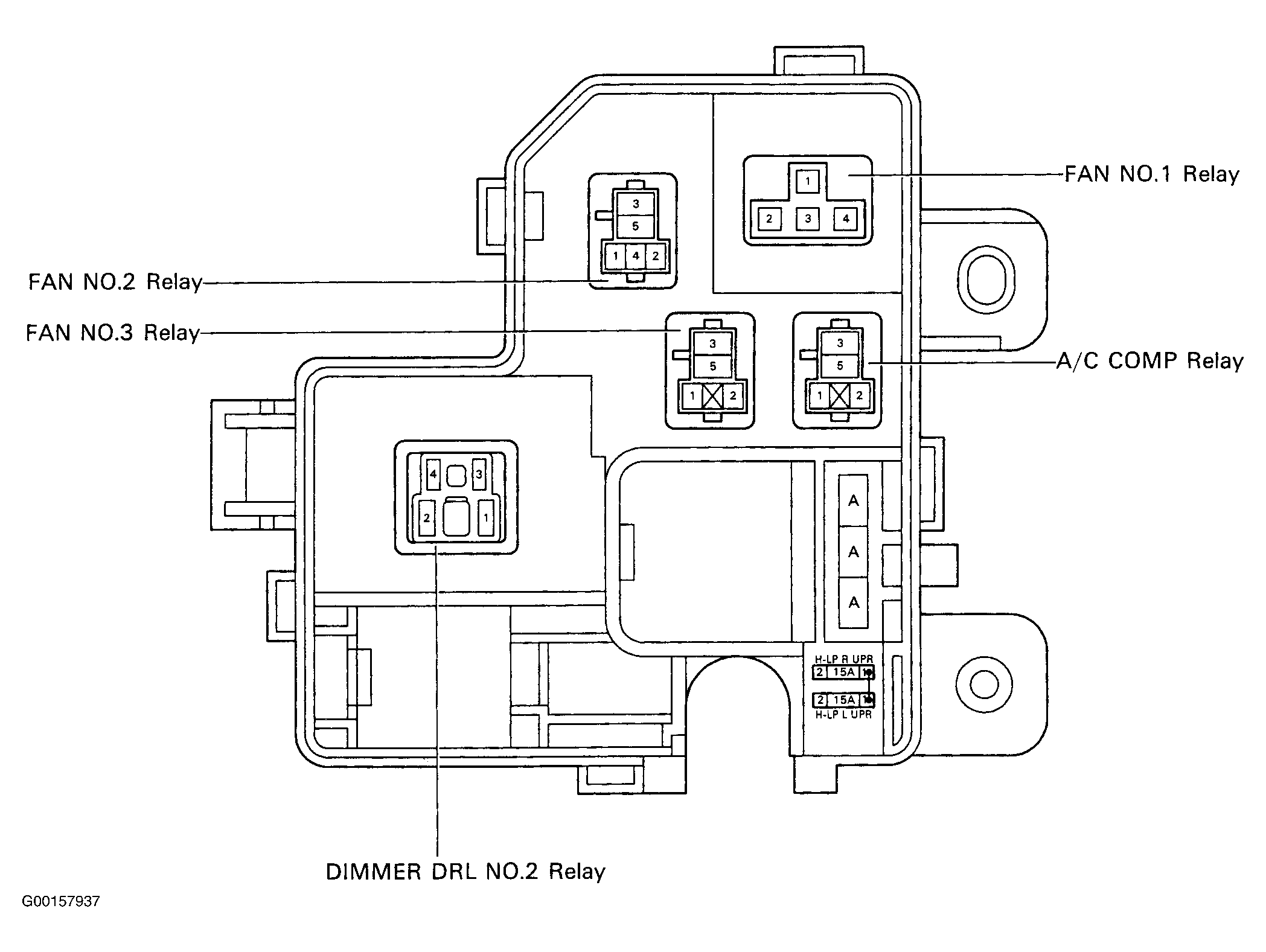

Fig 6: Identifying Engine Room No. 3 Relay Block Relays

G00157937

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

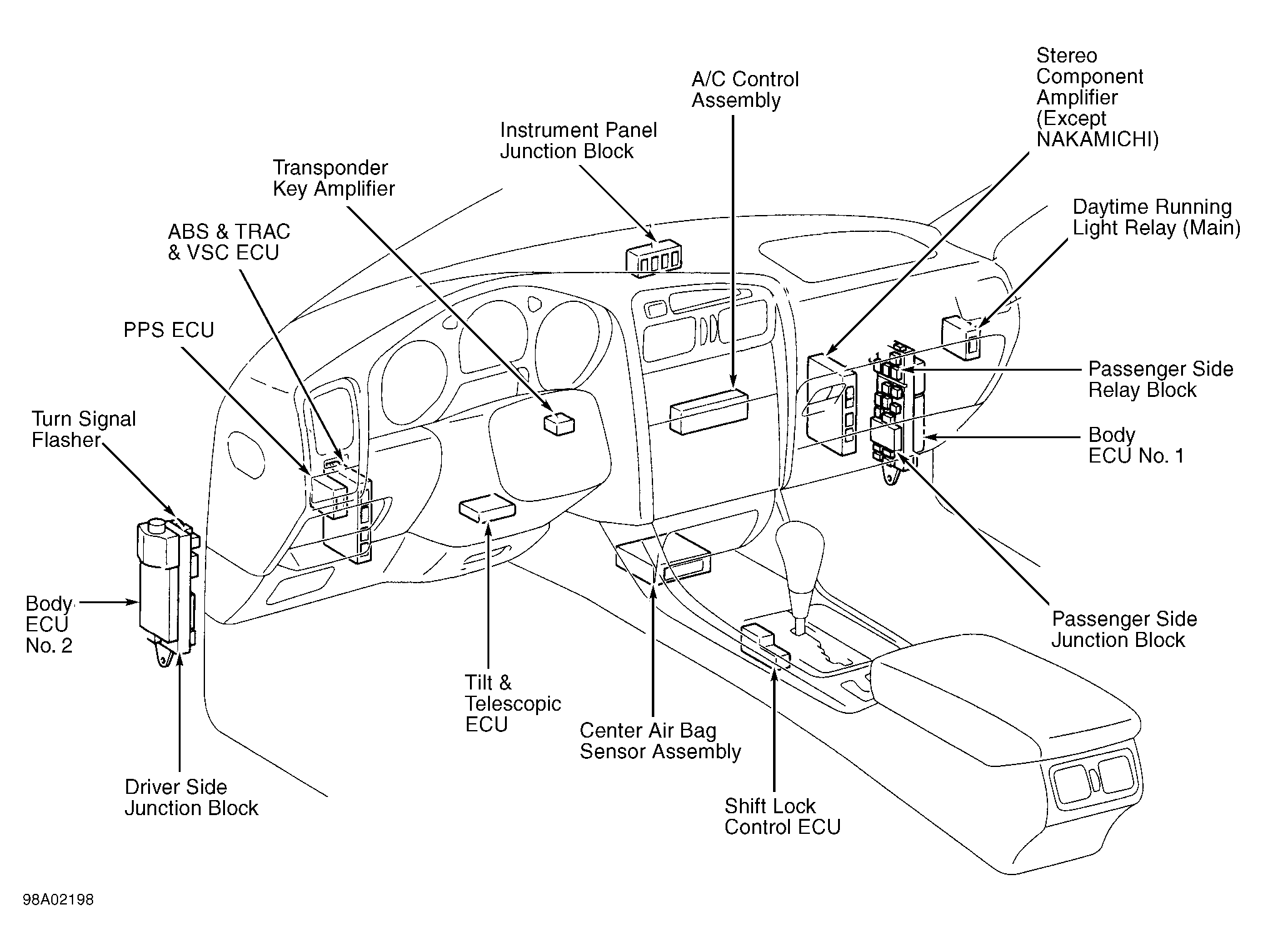

Fig 7: Locating Driver Side Junction Block

G98I02197

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

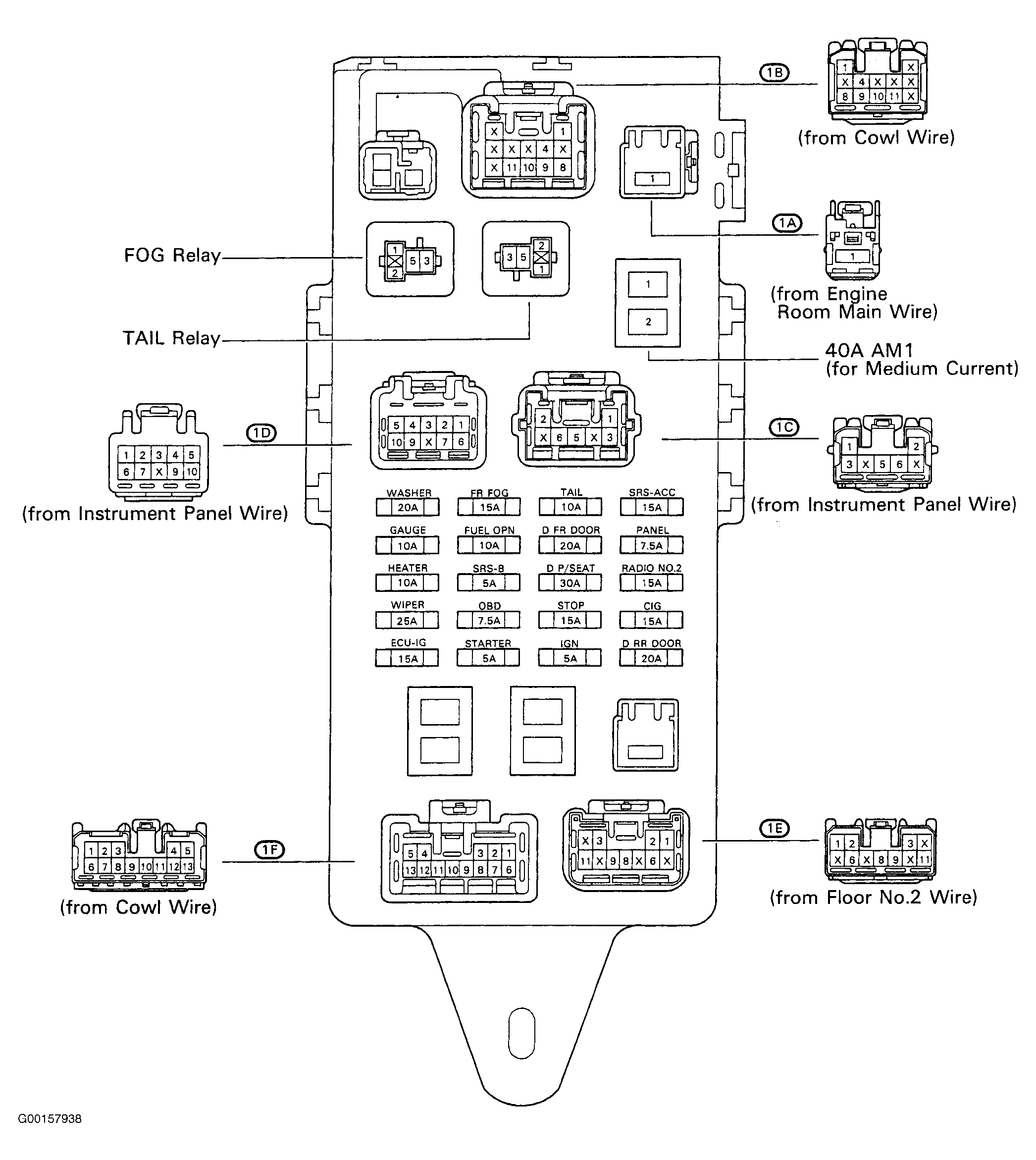

Fig 8: Identifying Driver Side Junction Block Fuses & Relays

G00157938

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Locating A/C Triple Pressure Switch & Water Temperature Switch(GS 300)

G98E02195

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Locating A/C Triple Pressure Switch & Water Temperature Switch(GS 400)

G98G02196

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
