Description
Front Suspension: Description
For description, see
Fig 1
.

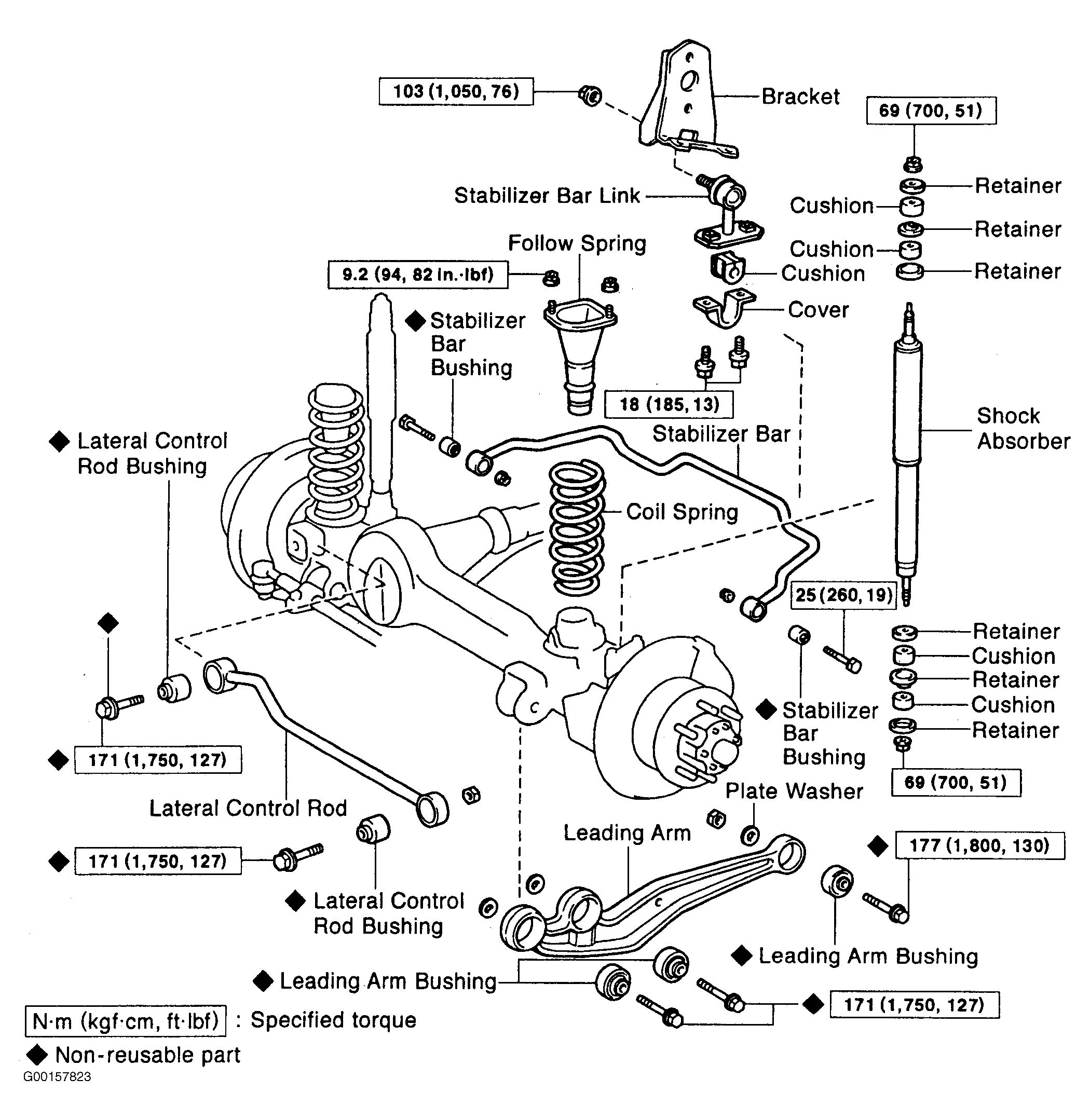

Fig 1: Exploded View Of Front Suspension
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
