Relay Block No. 2

Relay block (R/B) No. 2 is located in left side of engine compartment. See Fig 1. To identify fuses and relays in relay block No. 2, see illustration. See Fig 2.

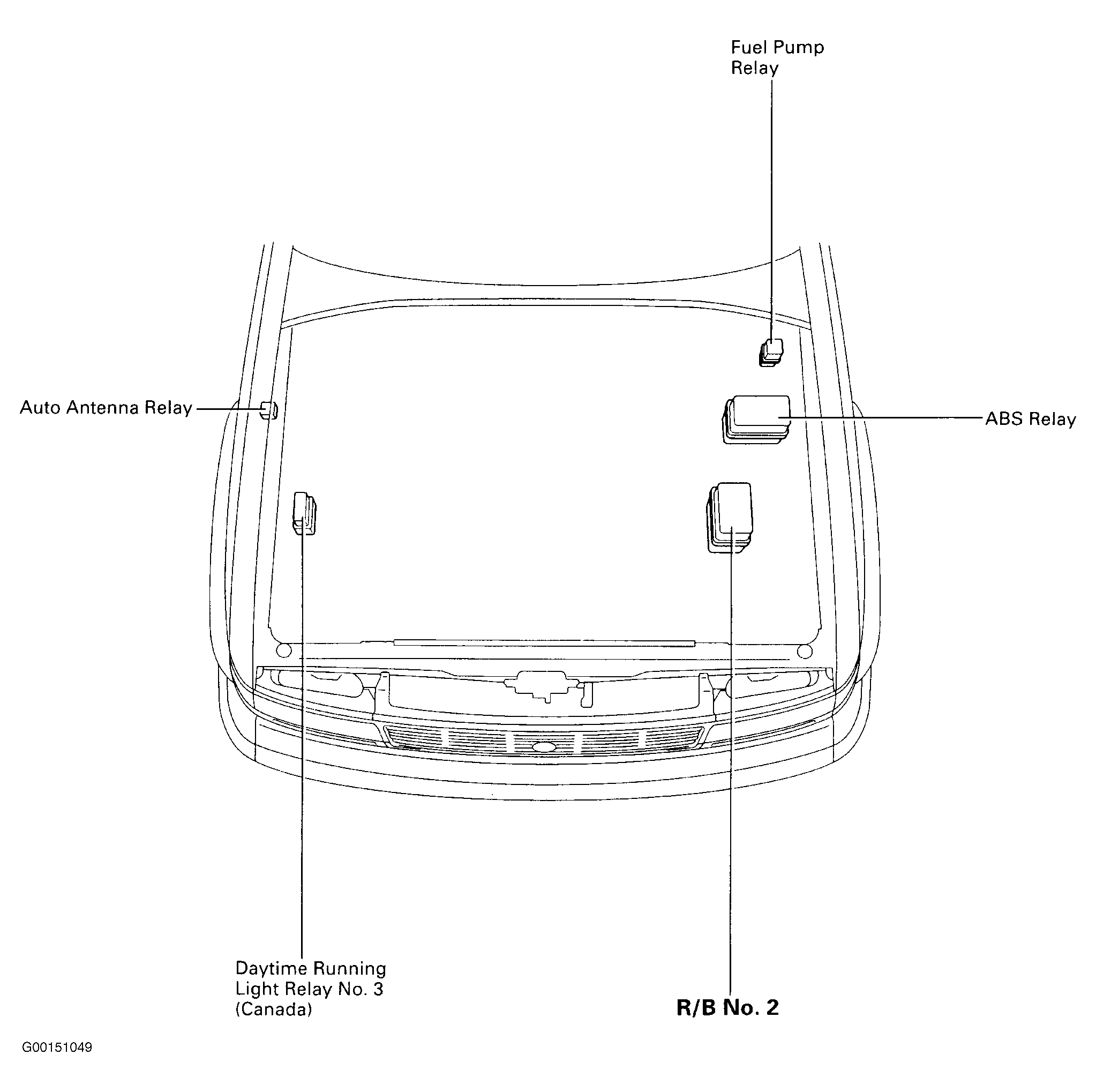

Fig 1: Locating Engine Compartment Electrical Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

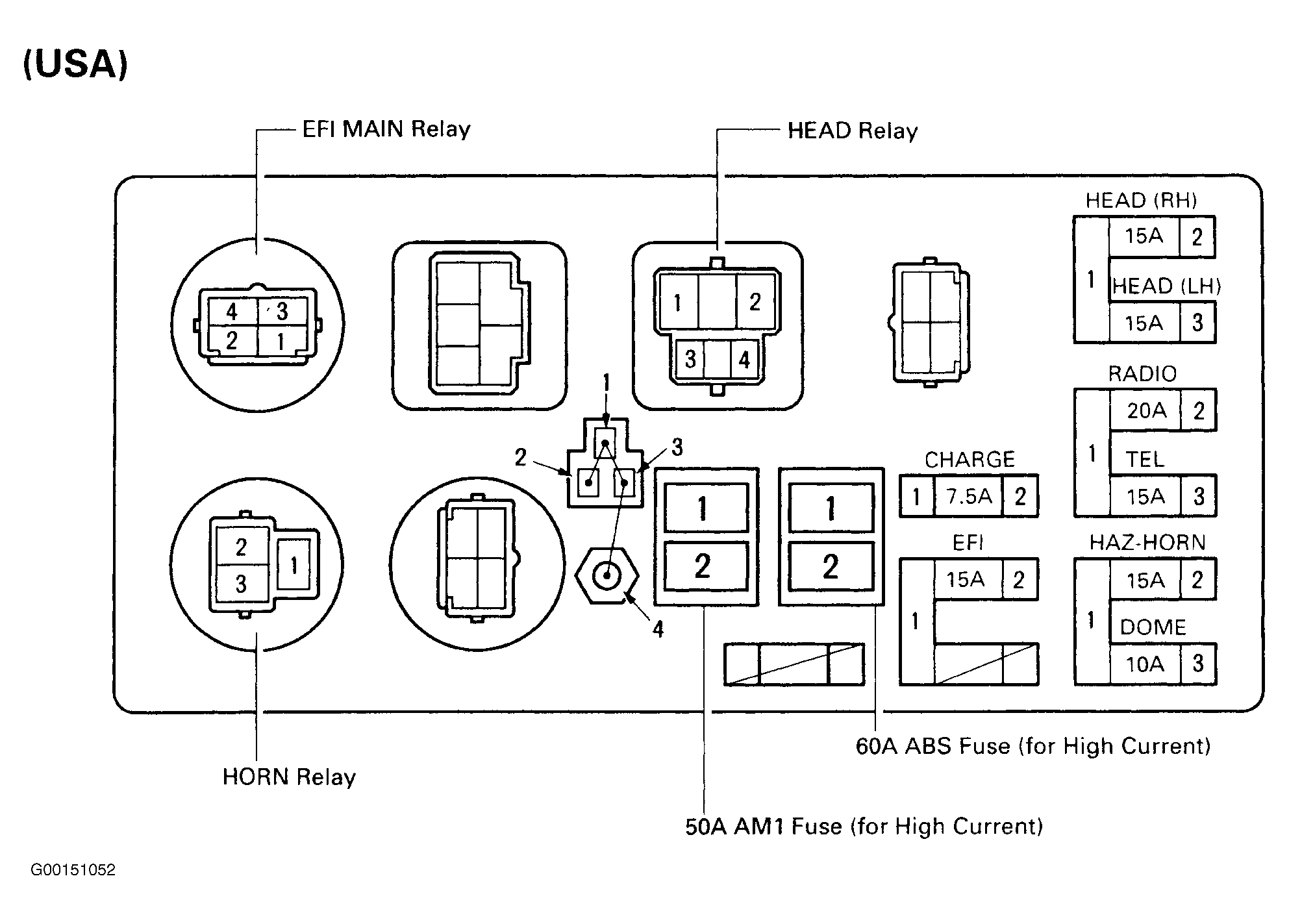

Fig 2: Identifying Relay Block No. 2 Fuses & Relays

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
