Relay Block No. 1

Relay block (R/B) No. 1 is located on left side of instrument panel, near fuse block. See Figure. To identify relays in relay block No. 1, see illustration. See Fig 1

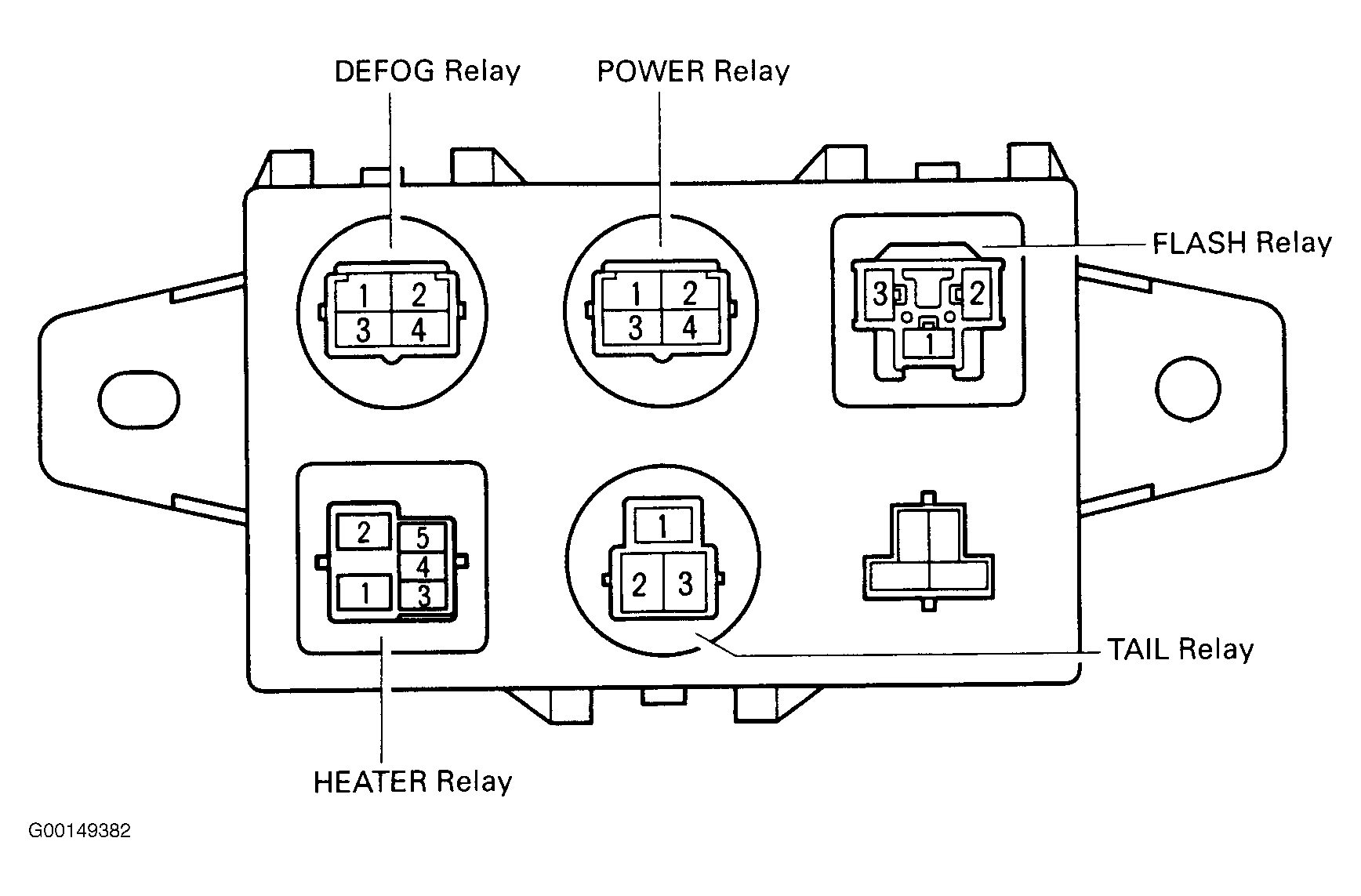

Fig 1: Identifying Relay Block No. 1 Relays
G00149382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
