Fuse Block

Fuse block is located behind left side of instrument panel. See Fig 1. To identify fuse block fuses, see illustration. See Fig 2.

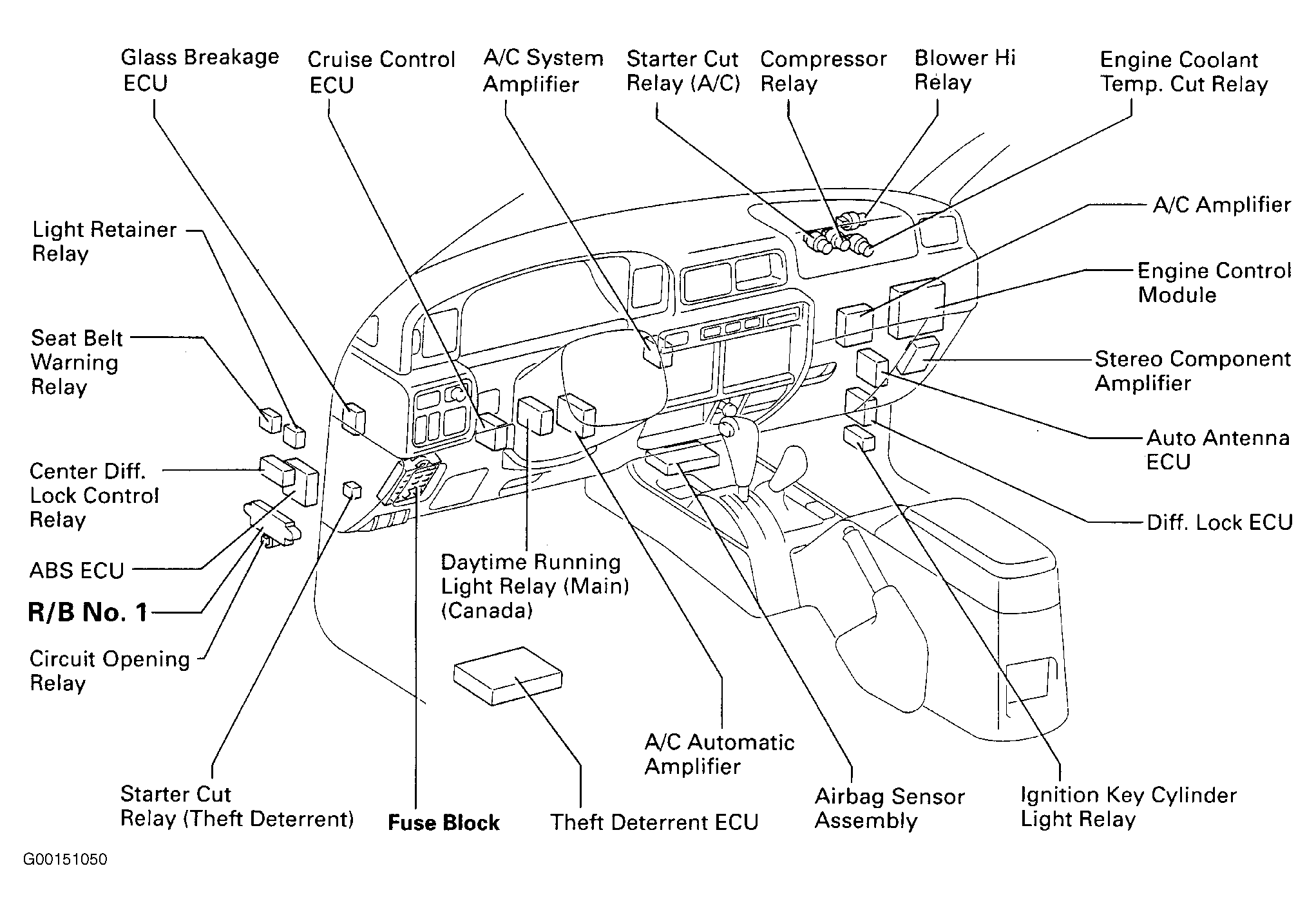

Fig 1: Locating Instrument Panel Electrical Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

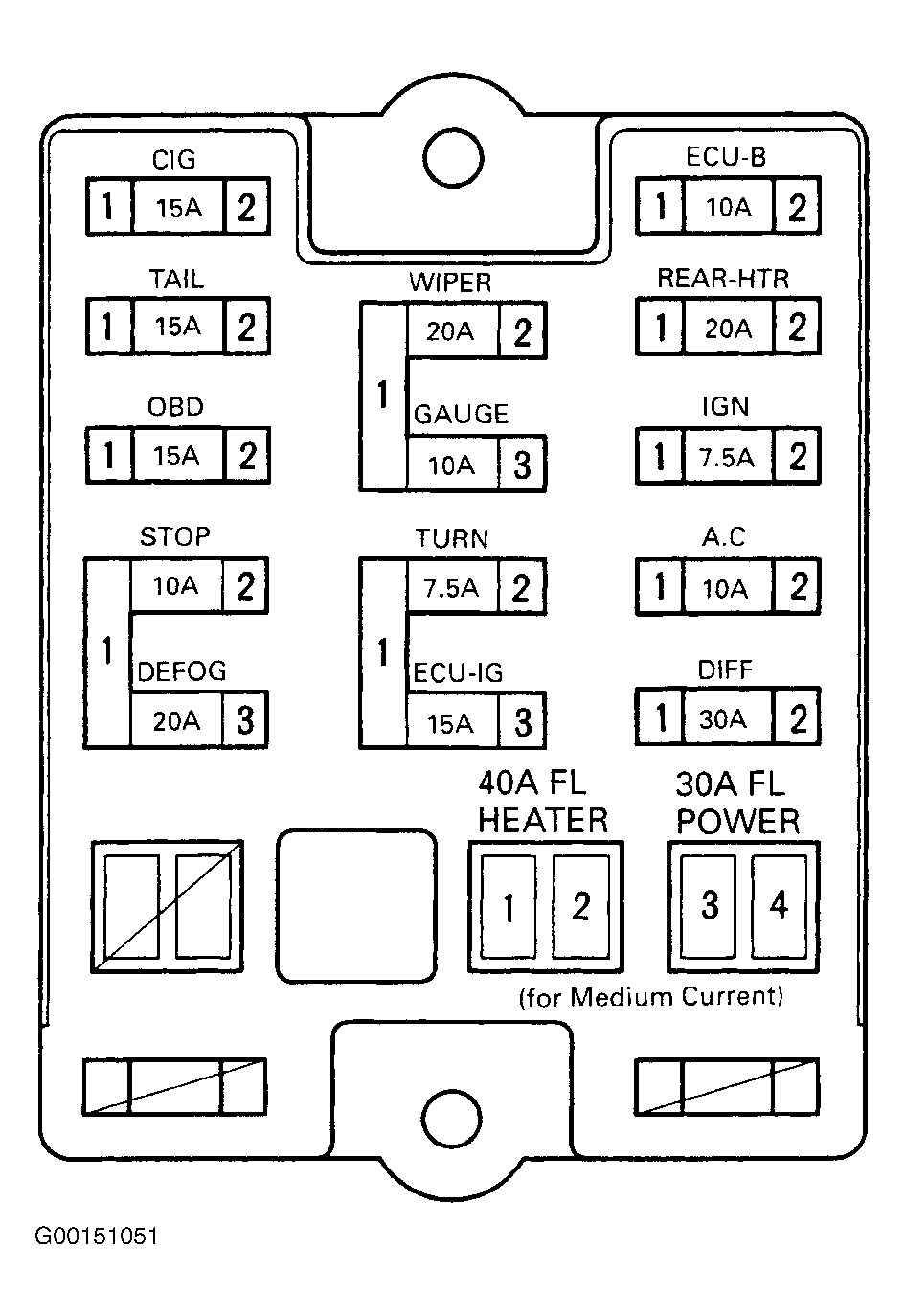

Fig 2: Identifying Fuse Block Fuses
