Instrument Panel Circuit Tests
NOTE:
Unless specified otherwise, use a DVOM with a minimum input impedance of 10-megohms during testing.

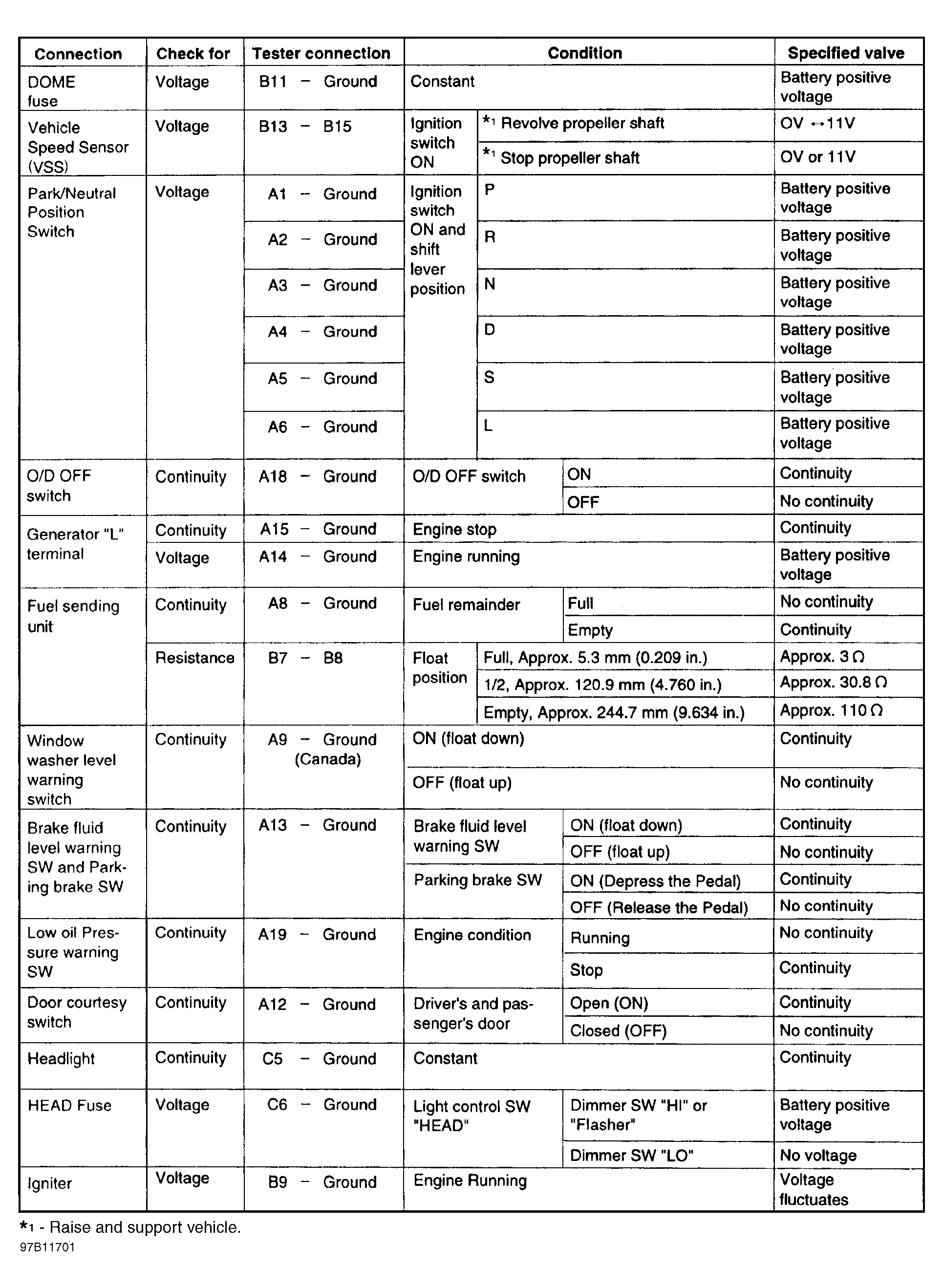

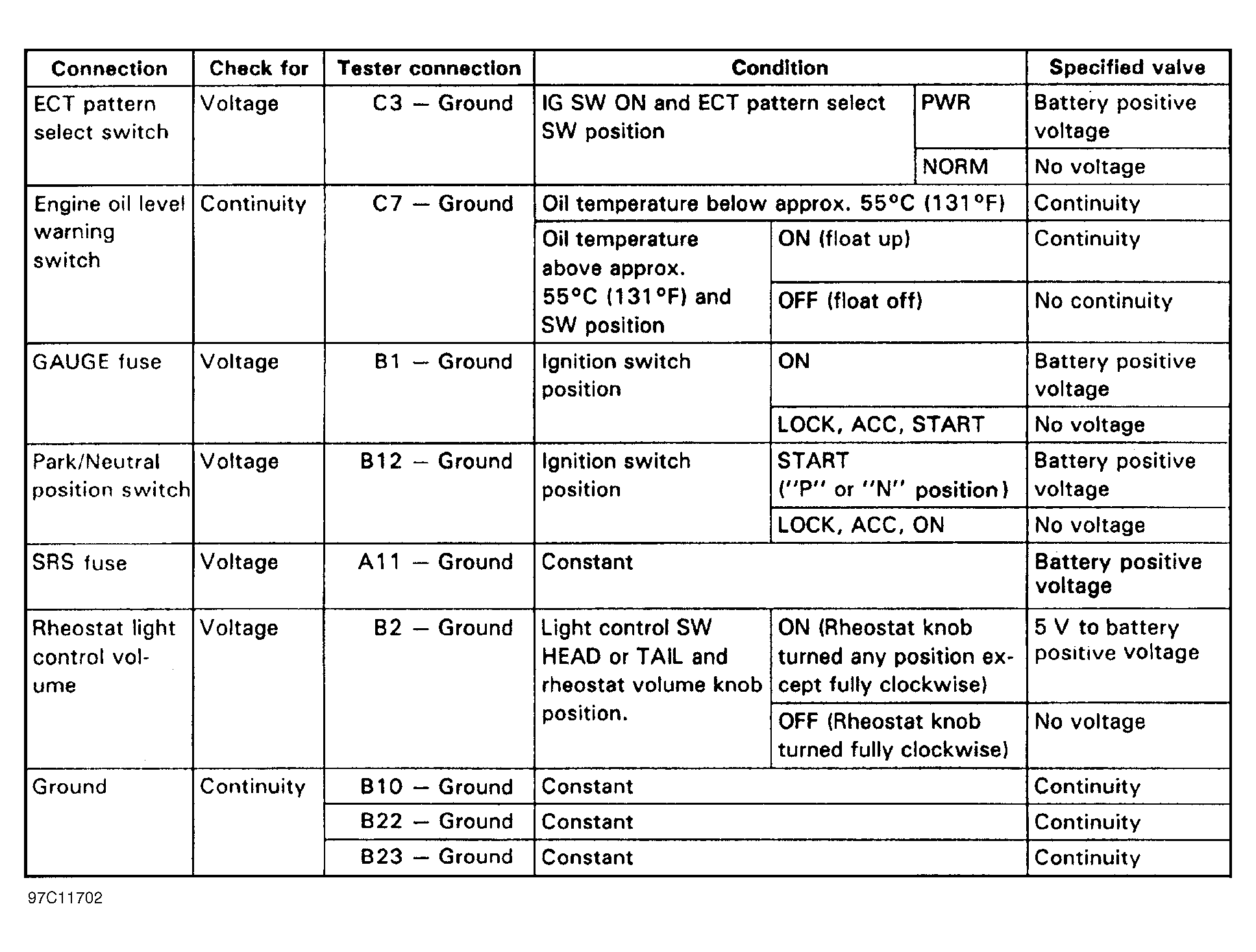

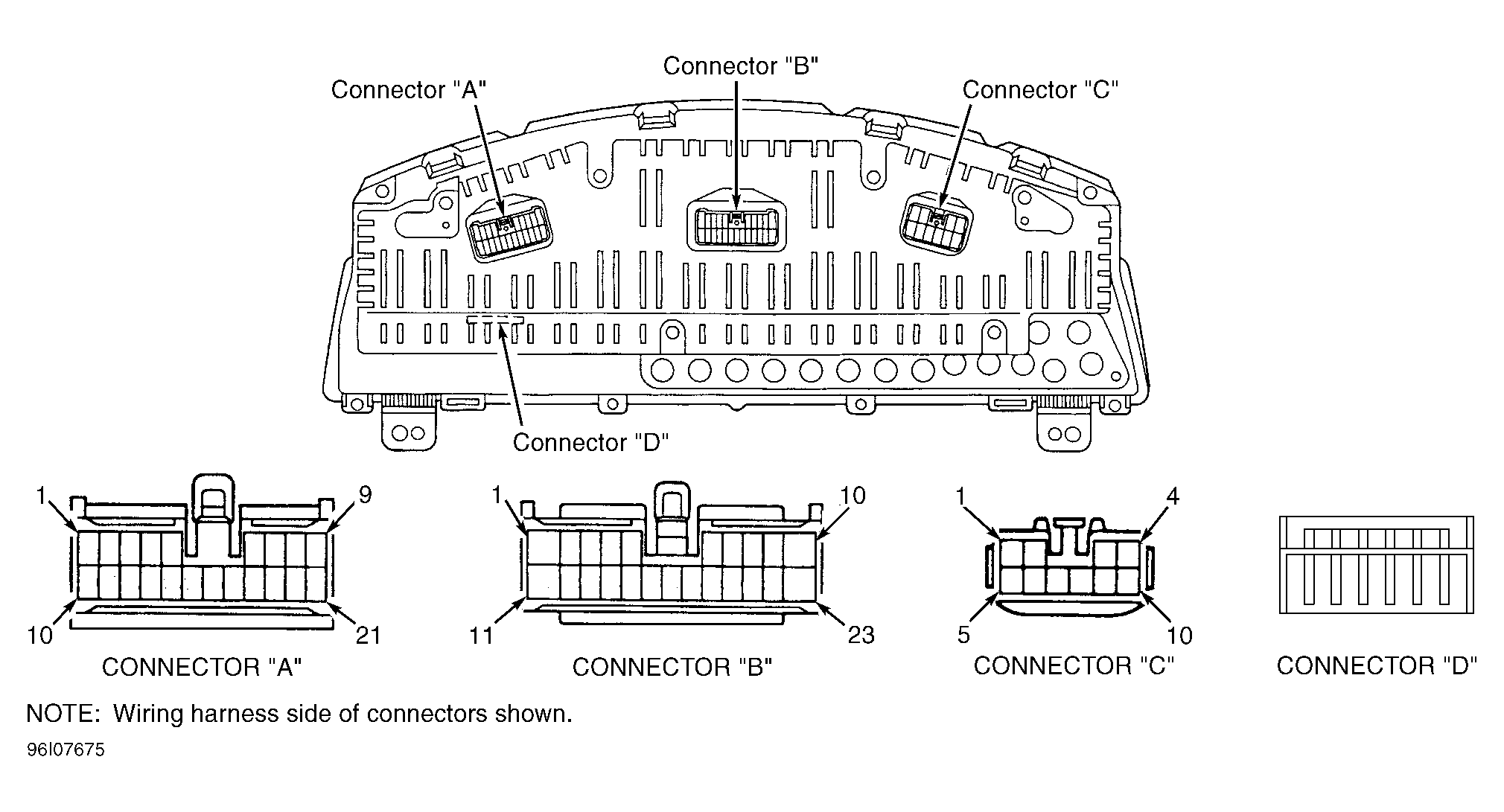

Disconnect instrument cluster connectors "A", "B" and "C". See Fig 1. Using DVOM, test each circuit from the harness side of appropriate connector under the condition listed. See Fig 2- Fig 3 . If specification value is not as specified, repair wiring as necessary. See appropriate wiring diagram in WIRING DIAGRAMS .
