Shift Position Indicator

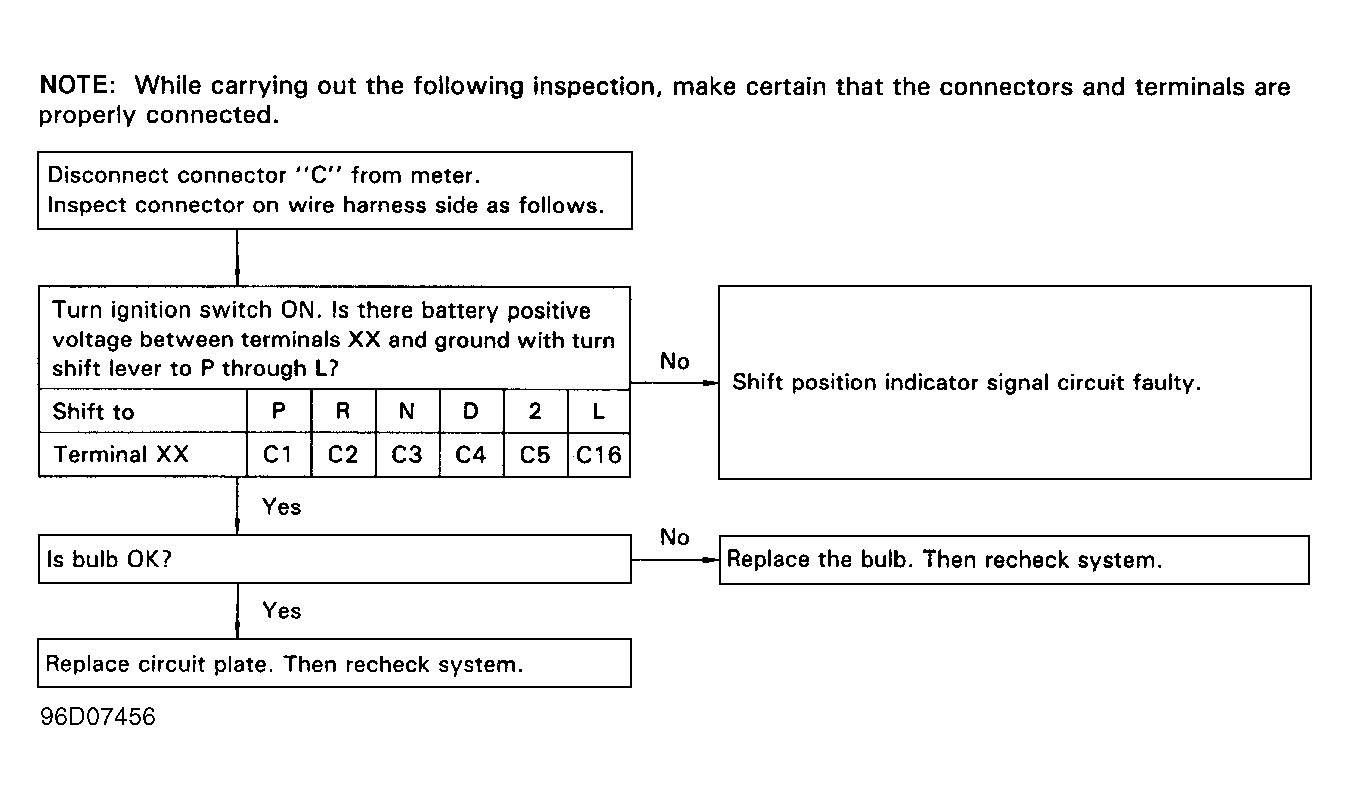

Fig 1: Abnormal Operation Or Indicator Does Not Illuminate
G96D07456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
