System Test Charts: Tachometer

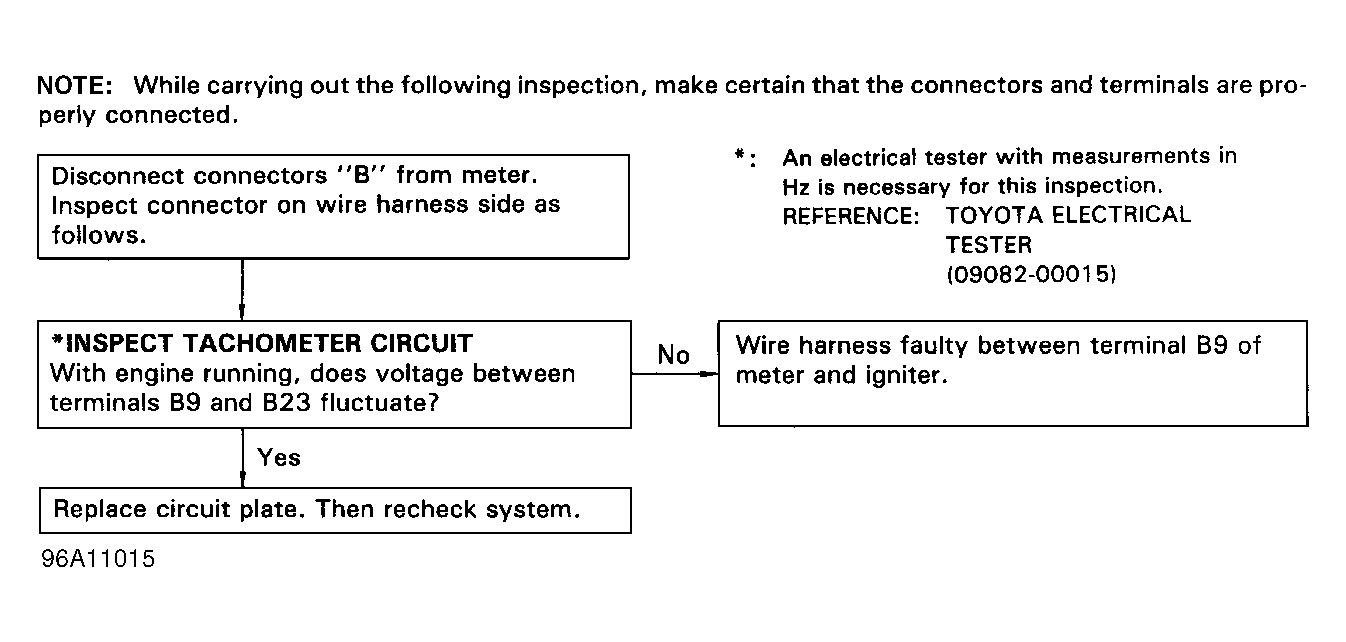

Fig 1: Does Not Operate While Engine Is Running

G96A11015

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
