Fuel Level Warning

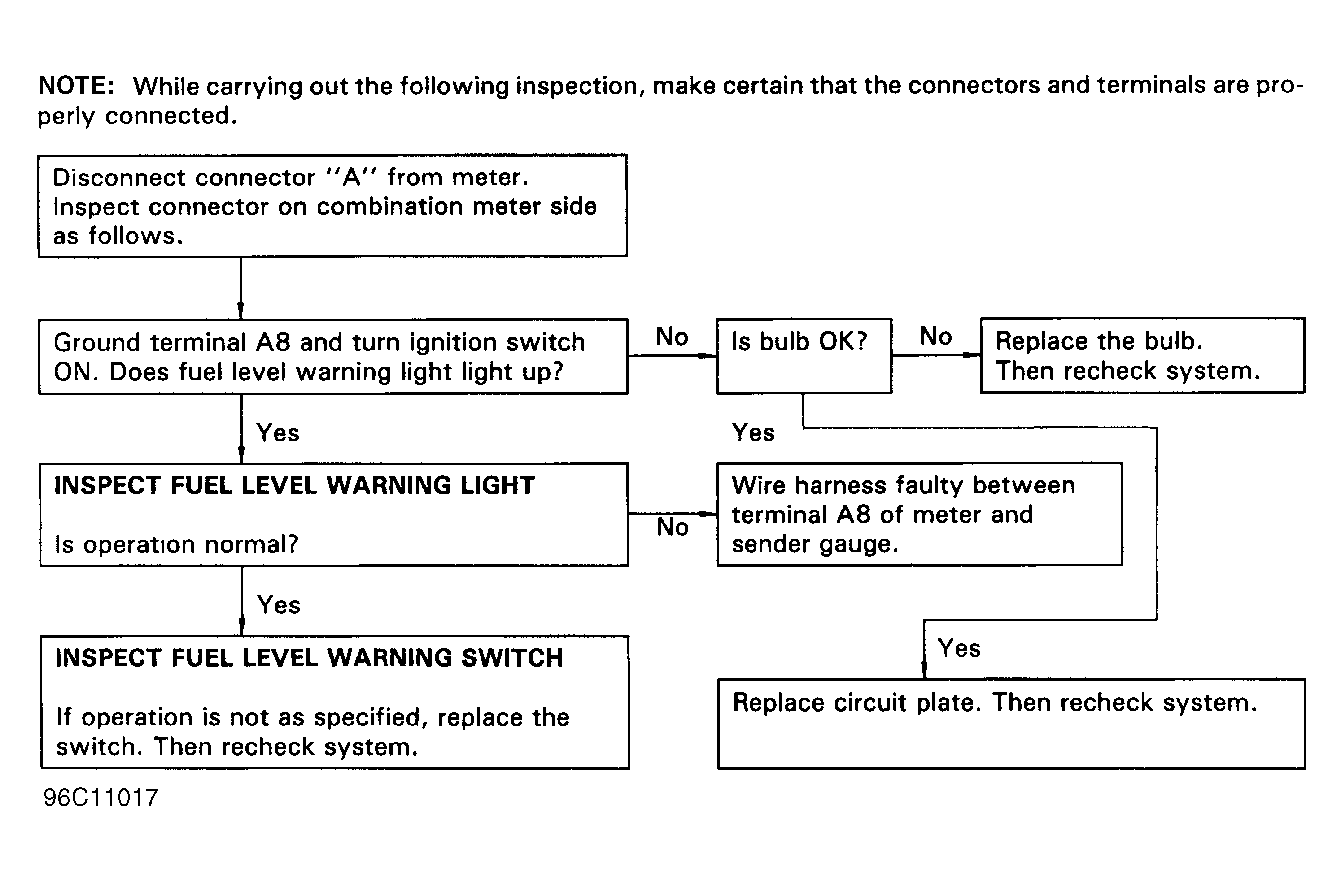

Fig 1: Warning Does Not Illuminate Or Always Illuminated

G96C11017

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
