Test 10 - Door Open Detection Switch Circuit

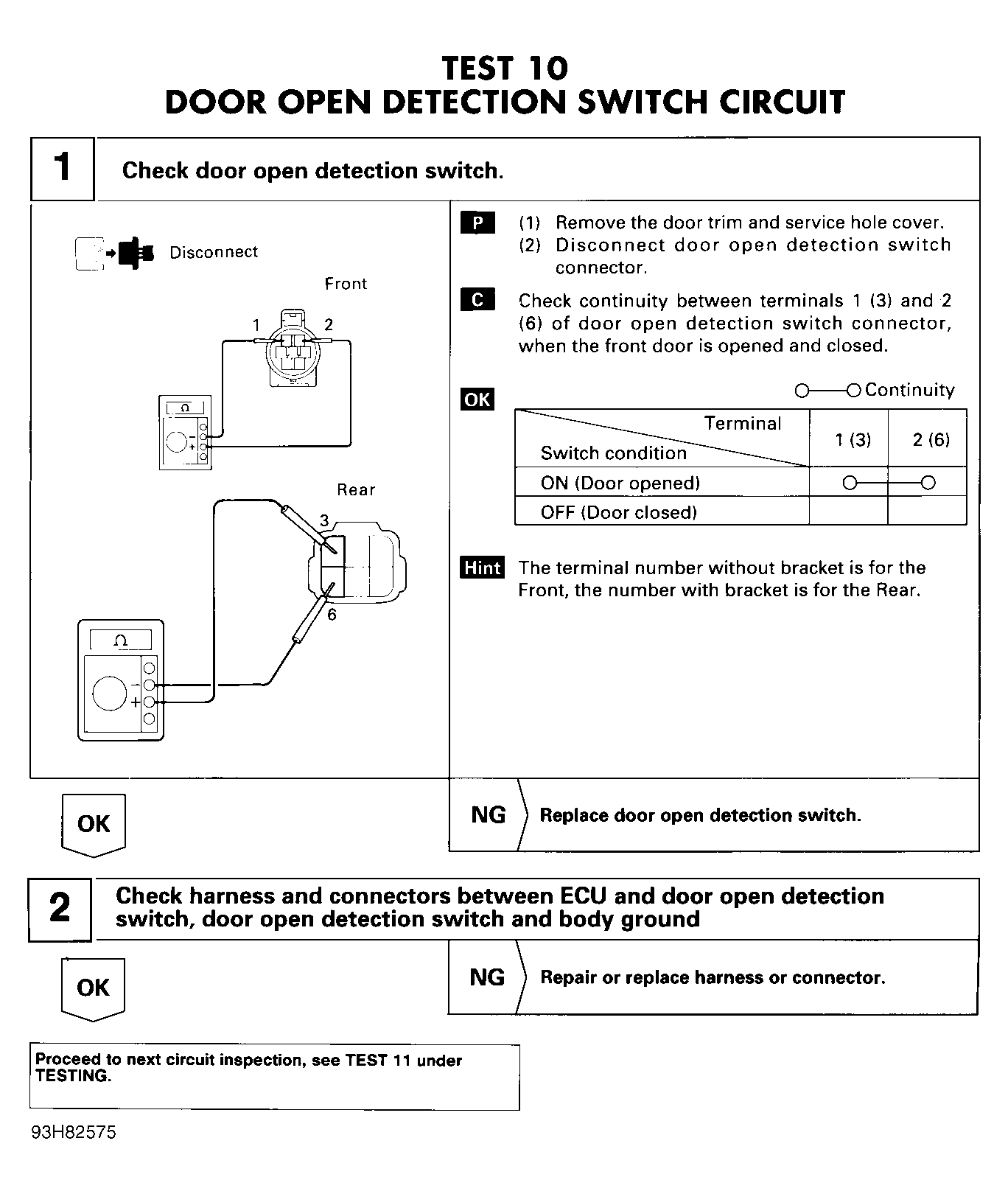

Fig 1: Test 10 - Door Open Detection Switch Circuit

G93H82575

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
