95 Model Year Vehicle Alignment Specifications (SU95-003)

Publication date: 1995-03-31
Reference number: SU95-003

95 MODEL YEAR VEHICLE ALIGNMENT SPECIFICATIONS

TECHNICAL SERVICE BULLETIN

Reference Number(s): SU95-003, Date of Issue: March 31, 1995

LEXUS:	1995, All Models
GROUP:	Suspension
COPYRIGHT:	© 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002

'95 MODEL YEAR VEHICLE ALIGNMENT SPECIFICATIONS

Alignment inspection specifications for all '95 model year vehicles are provided below:

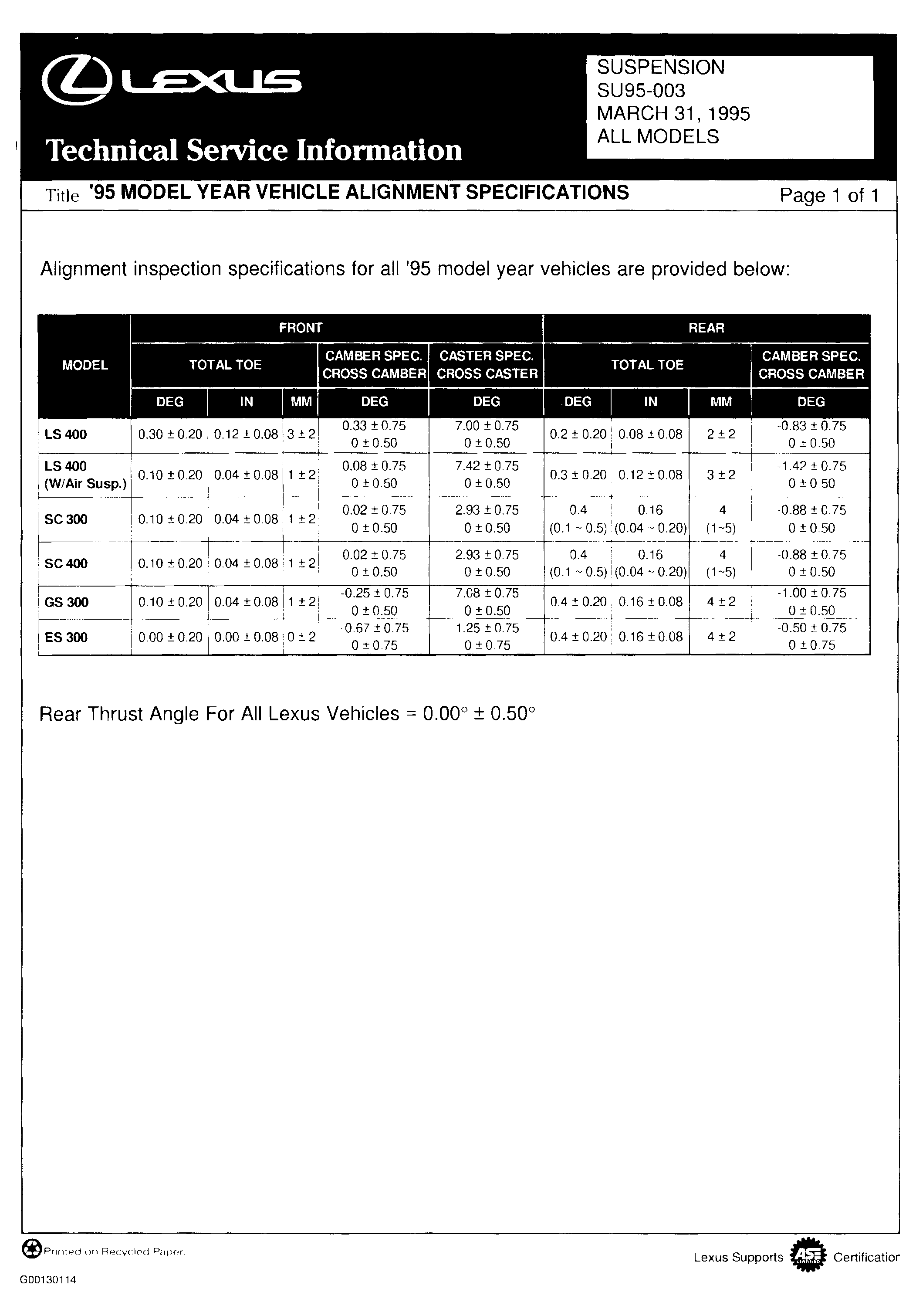

Fig 1: Page 1 of Bulletin
