Oil Pump: Installation
WARNING: This page is about a different car, the 1996 Lexus SC 400 and 1995 Lexus SC 400. However, it is still accessible from the selected car via links, so may be relevant.
- Ensure sealing surfaces are clean. Install NEW "O" ring on cylinder block. Apply sealant on oil pump body sealing surface.

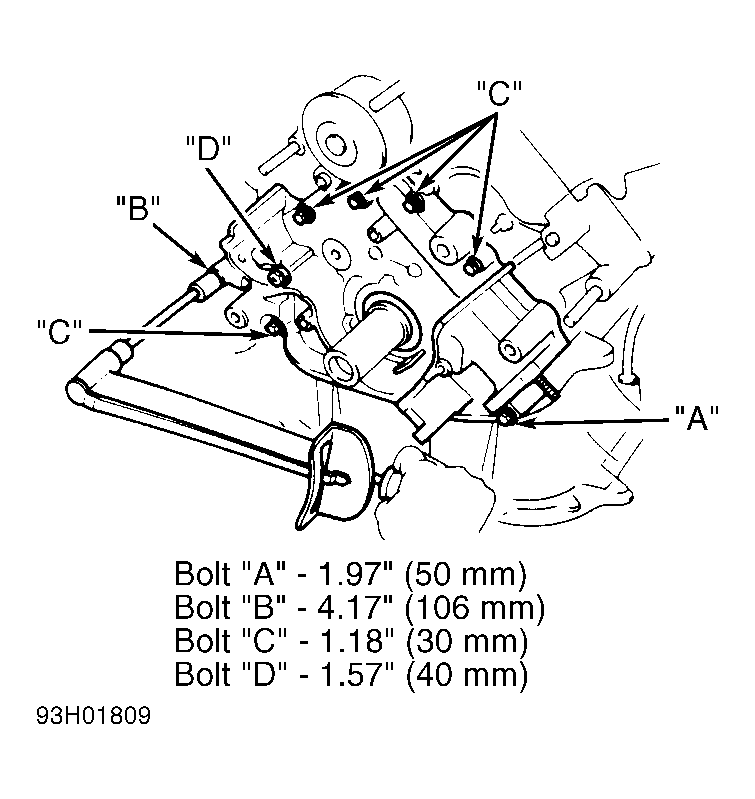

- Install oil pump. Ensure teeth on drive rotor engage with teeth on crankshaft. Install bolts. Ensure proper bolt is installed in specified area. See Fig 2. Tighten all bolts to specification. See TORQUE SPECIFICATIONS .
- To install remaining components, reverse removal procedure. Ensure proper oil pan installation procedure is used. See OIL PAN under REMOVAL & INSTALLATION.
